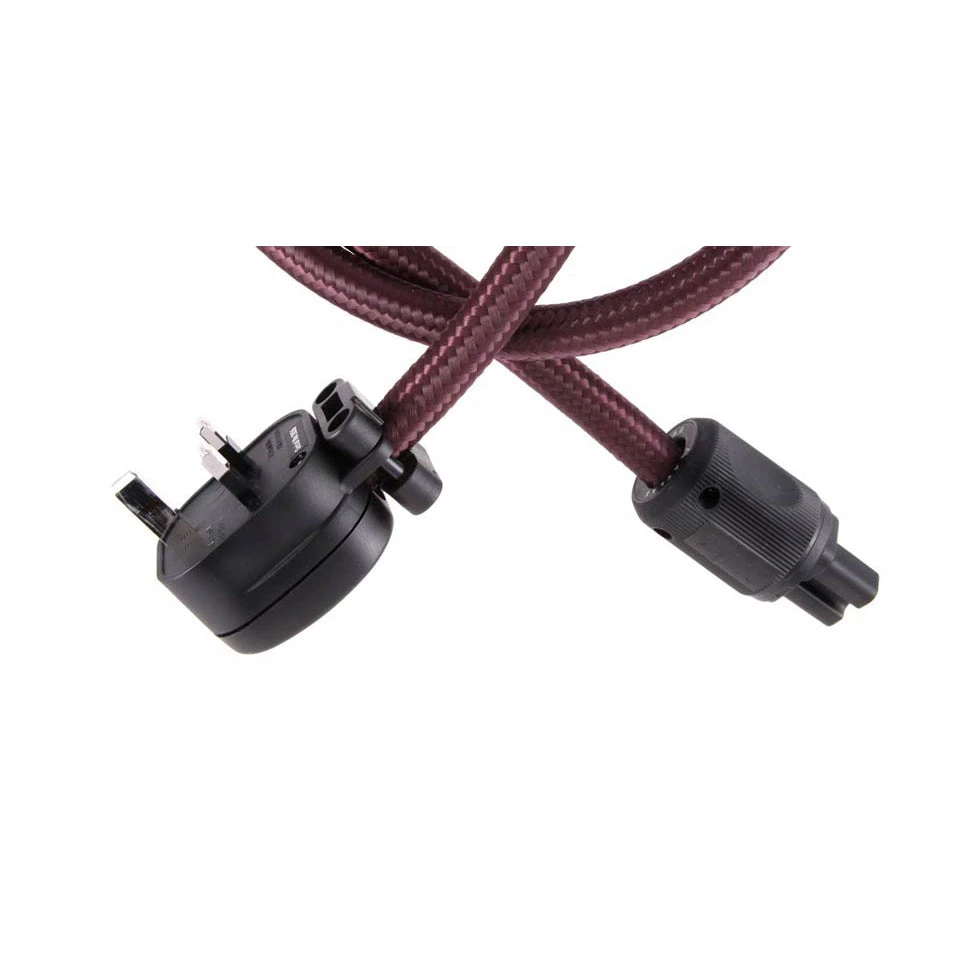

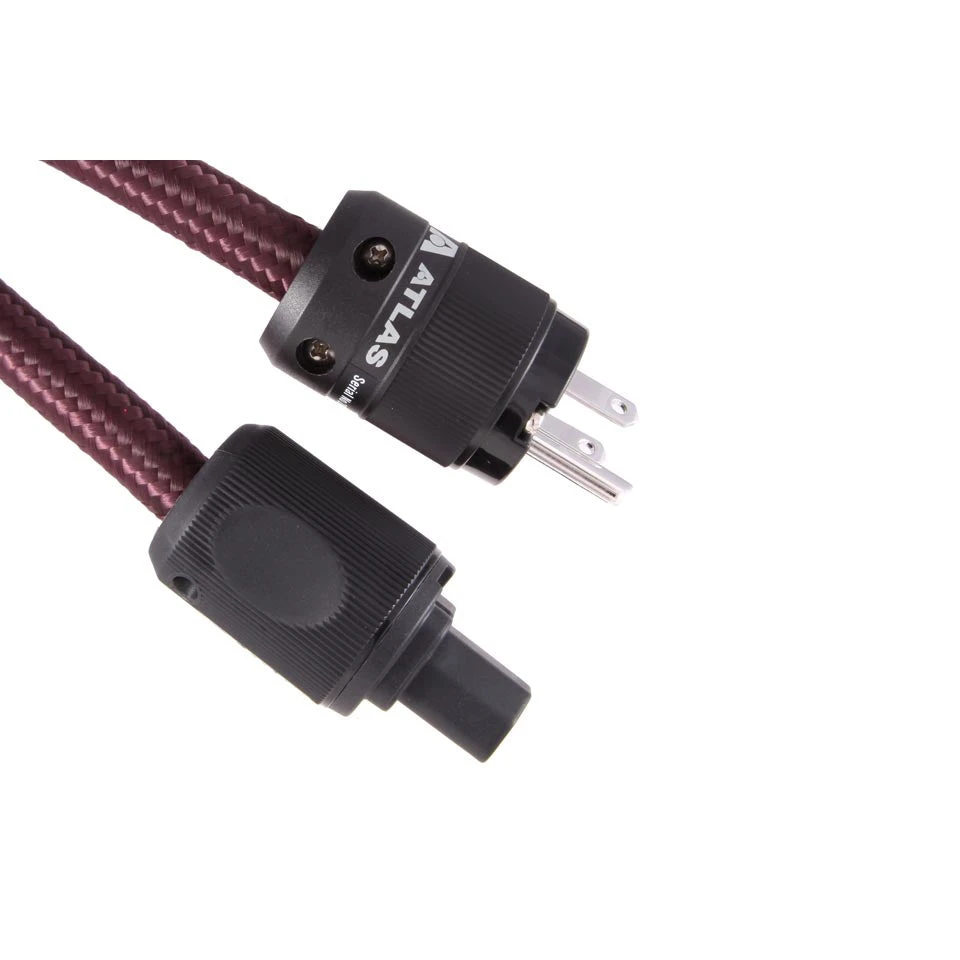

Atlas Eos Superior Power Cable (1.5m)

Ensuring a clean power supply is a fundamental step in optimising the performance of sophisticated audio & home cinema systems. Clean, quality power necessitates cables highly-resistant to external interference and noise on the mains – some of which can be actually generated by your equipment and cables themselves.

The Eos Superior Power Cable uses pure OCC (Ohno Continuous Cast Copper) conductors 4mm² conductors in an all-new advanced multi-layer screened configuration with our dd (dual drain) system and our precision-engineered silver-plated mains plugs and IEC connectors. The Eos Superior is constructed to extremely high standards, all mechanical terminations are damped (as is the cable itself) and particular attention is paid to airtight terminations throughout.

The very best power cables are built around low series resistance, safe and stable dielectrics and high tech screening, the Eos Superior excels in all these areas, delivering exceptional fidelity and superior protection against the threat of RF radiation, eliminating airborne and electromagnetic disturbance effects rapidly to earth.

The Eos Superior is specifically designed for ‘high-end’ systems and high current draw devices, and is the optimum cable to use between wall socket and our Eos Modular power blocks.

By comparison a typical domestic power lead in comparison, lacks the quality of component parts, screening layers, dual drain system and anti-vibration treatment we employ in Eos. For maximum effectiveness, Eos cables are best used as part of a complete Power Management System.

• Ultra-pure 4mm² OCC conductors
• Stabilized PVC dielectric
• Double copper & foil screening
• Dual multi-core construction
• Dual drain

At the equipment end of the power cable, options are 10A (standard ‘kettle-type’ connector used on most equipment) & 16A (high current, larger format connector) IEC and C7 (‘figure of 8’ connector).

Specifications

Construction	Multicore, dual drain, double screen
Material	OCC
Dielectric	Stabilised PVC
Screen	Multilayer Cu Mylar™ & woven screen
Capacitance	195.09 pF/m
Inductance	0.377 µH/m
Resistance	0.0050 Ohm/m
Outside Diameter	15mm
