Audio-Technica AT-LPW30BK Fully Manual Belt-Drive Turntable

AT-LPW30BK

The AT-LPW30BK is a fully manual, belt-drive turntable designed to give you optimal high-fidelity audio reproduction from vinyl. The two-speed (33-1/3 and 45 RPM) turntable features an aesthetically pleasing anti-resonance MDF (medium density fiberboard) plinth with simulated black wood veneer to limit low-frequency acoustical feedback.

The turntable includes a straight aluminum tonearm with adjustable tracking force and an AT-HS4 universal ½”-mount headshell with an AT-VM95C Dual Moving Magnet phono cartridge. Audio-Technica has been a leader in phono cartridge design for more than 60 years, and that expertise shows in the versatile, high-performance AT-VM95C cartridge, which comes with a 0.6 mil conical stylus, but is also compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application.

The AT-LPW30BK is equipped with a built-in selectable phono preamp and a detachable dual RCA output cable to enable direct connection to components with or without a dedicated phono input.

Stylish Wood Turntable

A stunning addition to any system, the AT-LPW30 features an anti-resonance plinth with black simulated wood veneer to limit low-frequency acoustic feedback.

• Plays 33-1/3 and 45 RPM Records
• Built-in Switchable Phono Pre-Amplifier
• Straight Aluminum Tonearm
• AT-VM95C Dual Magnet™ Phono Cartridge

Audio Aesthetics

The LPW30 was designed to give you optimal high-fidelity audio reproduction from vinyl, with sophisticated styling.

Over 60 Years of Analog Excellence

We got our start in Tokyo in 1962, designing and manufacturing high-performance phono cartridges. That half-century’s worth of analog expertise goes into every turntable we produce, ensuring you get the best listening experience from your vinyl.

Features

• Fully manual, belt-drive operation with two speeds: 33-1/3 and 45 RPM
• Fully manual operation
• Adjustable dynamic anti-skate control
• Professional anti-resonance, die-cast aluminum platter with rubber mat
• AT-HS4 universal ½”-mount headshell and AT-VM95C Dual Moving Magnet phono cartridge with 0.6 mil conical stylus
• AT-VM95C cartridge is compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application
• Straight tonearm with hydraulically damped lift control and lockable rest
• Anti-resonance MDF (medium density fiberboard) plinth with black wood veneer
• Built-in switchable phono pre-amplifier for phono or line-level output
• AC adapter handles AC/DC conversion outside of the chassis, reducing noise in the signal chain
• Includes dual RCA (male) to dual RCA (male) stereo cable, 45 RPM adapter, rubber mat, and removable hinged dust cover

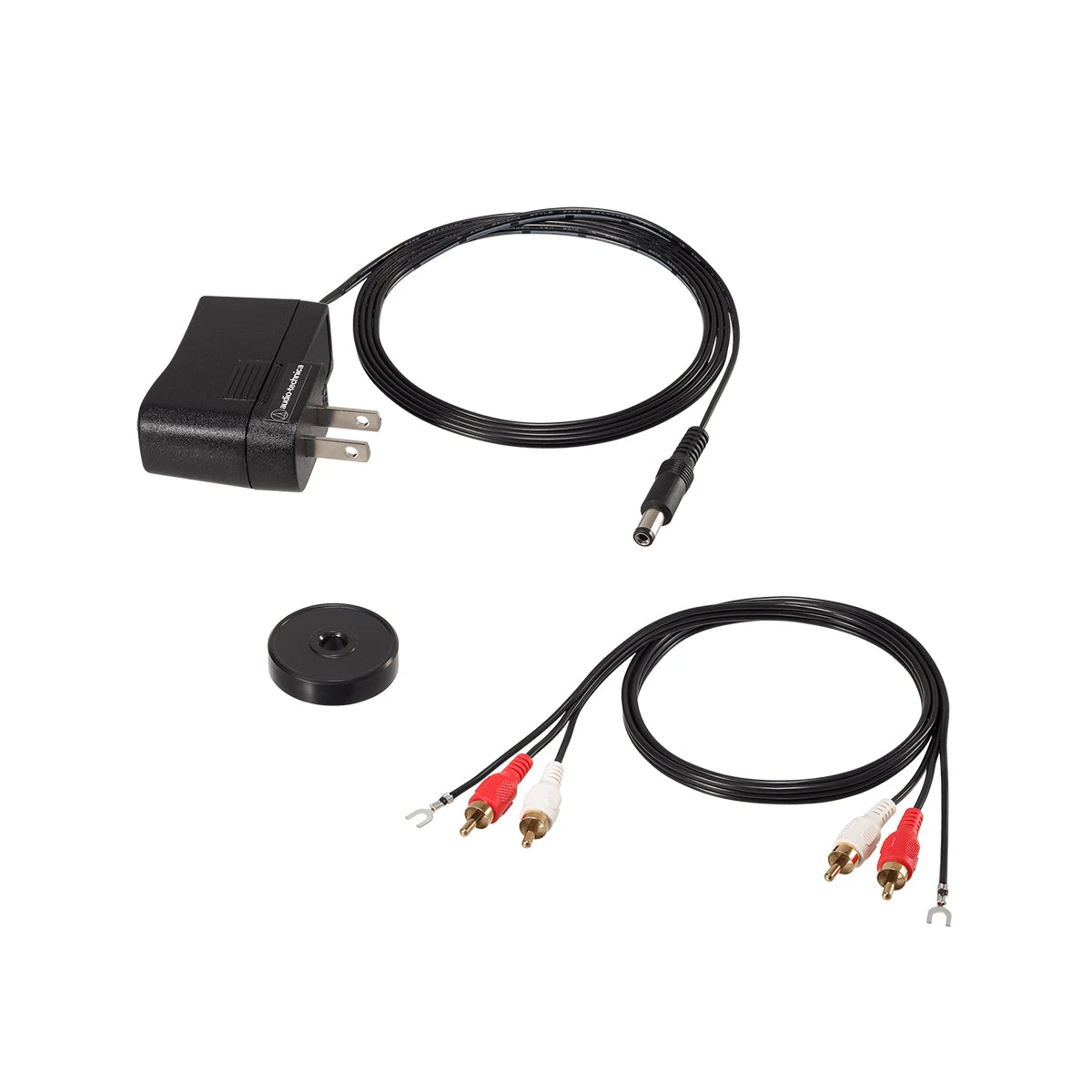

Accessories Included

• AT-HS4SV Headshell
• AT-VM95C Dual Moving Magnet Cartridge with Conical Stylus
• Detachable RCA output cable (dual RCA male to dual RCA male)
• AC adapter
• 45 RPM adapter
• Counterweight
• Rubber mat
• Removable hinged dust cover

Specifications

Type	2-speed, fully manual operation
Motor	DC servo motor
Drive Method	Belt-drive
Speeds	331/3 RPM, 45 RPM
Turntable Platter	Die-cast aluminum
Wow and Flutter	< 0.15% WRMS (33RPM) at 3kHz
Signal-to-Noise Ratio	> 60dB
Output Level	Pre-amp: PHONO: 4.0mV nominal at 1kHz, 5cm/sec Pre-amp: LINE: 200mV nominal at 1kHz, 5cm/sec
Phono Pre-Amp Gain	35 dB nominal, RIAA equalized
Power Supply Requirements	100 to 240V, 50/60Hz
Dimensions	116.9 x 420.0 x 340.0 (H x W x Dmm)
Weight	5 kg
AC Adapter	12 V, 0.5 A
Tonearm Type	Static balanced straight aluminum pipe tonearm
Effective Arm Length	223.6 mm
Overhang	18.6 mm
Tracking Error Angle	<2 degrees
Applicable Cartridge Weight	12-17 g
Replacement Stylus	AT-VMN95C
Notes	Stylus pressure adjustment range: 0-3 g
