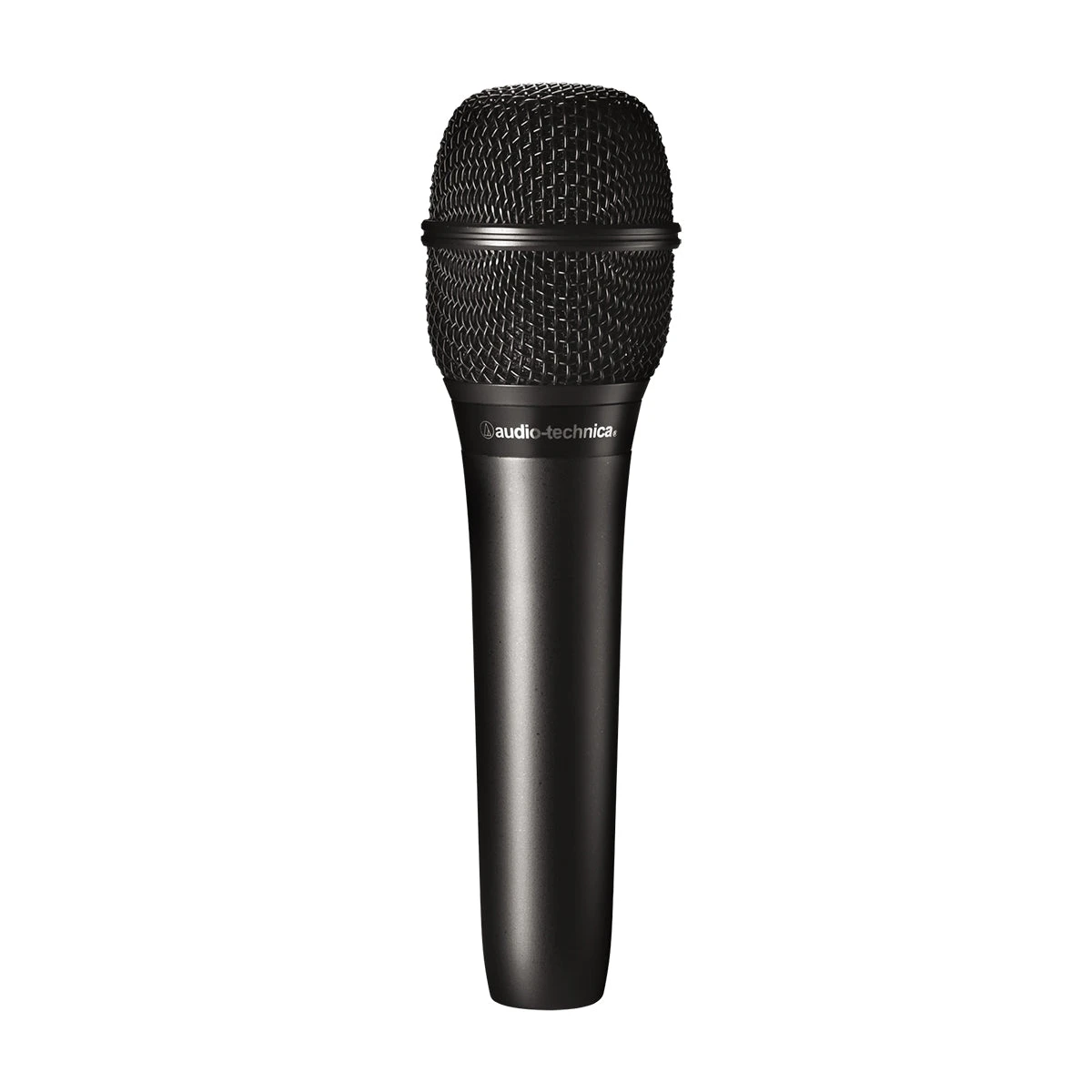

Audio-Technica AT2010 Cardioid Condenser Handheld Microphone

The AT2010 is designed to bring the studio-quality articulation and intelligibility of Audio-Technica’s renowned 20 Series to the stage, for crystal-clear vocal performances. Featuring the same 16 mm low-mass diaphragm found in the critically acclaimed AT2020 side-address studio condenser, the AT2010 excels wherever articulate vocals are needed: in houses of worship, for solo performances, jazz vocalists, singer/songwriters, and more.

Features

• Extended frequency response and superior transient response for smooth, natural sonic characteristics
• High SPL-handling and wide dynamic range provide unmatched versatility
• Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
• Multi-stage grille design offers excellent protection against plosives and sibilance without compromising high-frequency clarity
• Corrosion-resistant contacts from gold-plated XLRM-type connector
• Rugged, all-metal and construction for years of trouble-free service

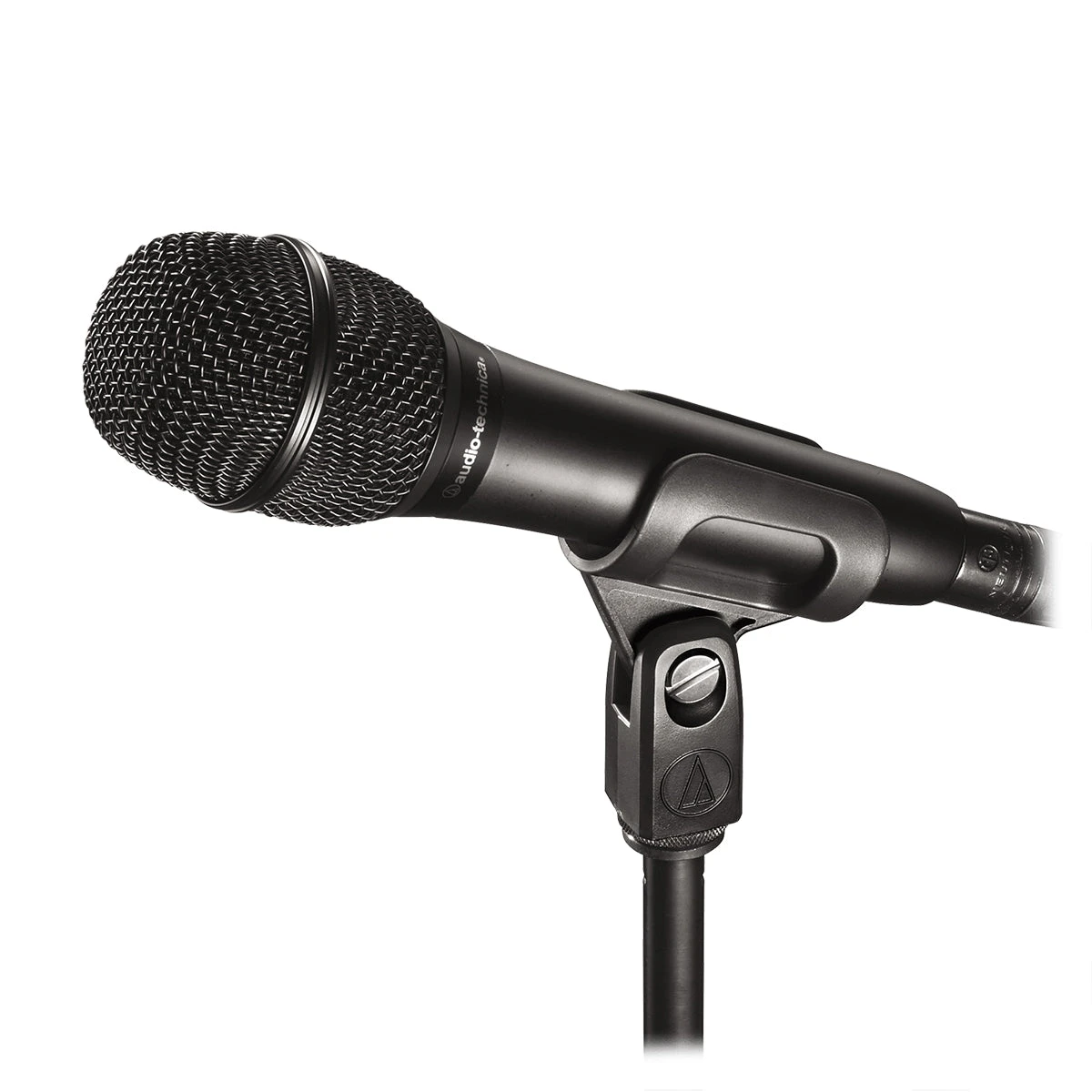

• Quiet-Flex™ stand clamp provides silent, flexible microphone positioning

Specifications

Element	Fixed-charge back plate permanently polarized condenser
Polar Pattern	Cardioid
Frequency Response	40-20,000 Hz
Open Circuit Sensitivity	–48 dB (3.9 mV) re 1V at 1 Pa
Maximum Input Sound Level	136 dB SPL, 1 kHz at 1% T.H.D.
Dynamic Range	113 dB, 1 kHz at Max SPL
Signal-to-Noise Ratio	71 dB, 1 kHz at 1 Pa
Phantom Power Requirements	48V DC, 2 mA typical
Weight	233 g (8.2 oz)
Dimensions	179.1 mm (7.05″) long, 50.8 mm (2.00″) maximum body diameter
Output Connector	Integral 3-pin XLRM-type

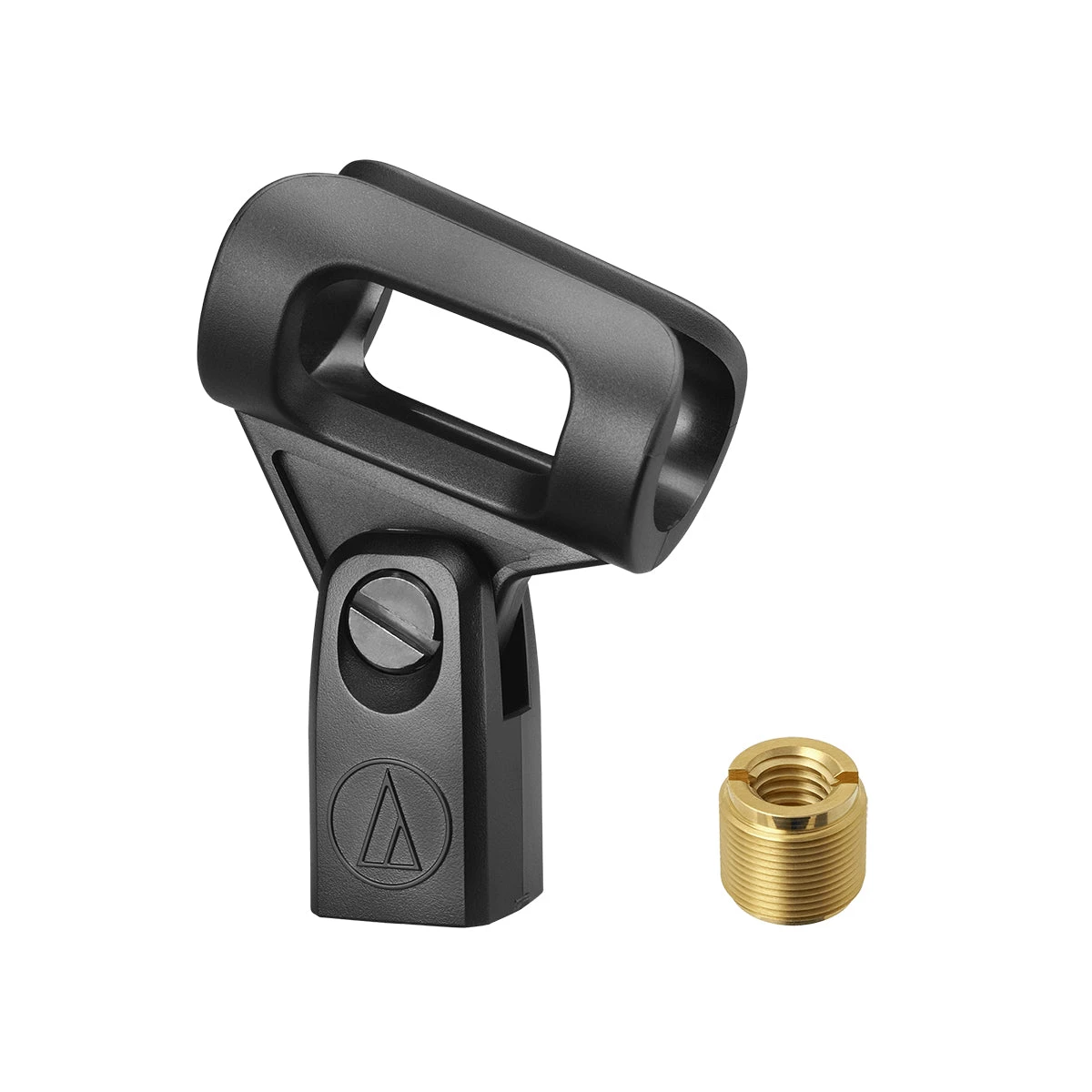

Accessories Included	AT8470 Quiet-Flex stand clamp for 5/8″-27 threaded stands; 5/8″-27 to 3/8″-16 threaded adapter; soft protective pouch
Audio-Technica Case Style	T7
