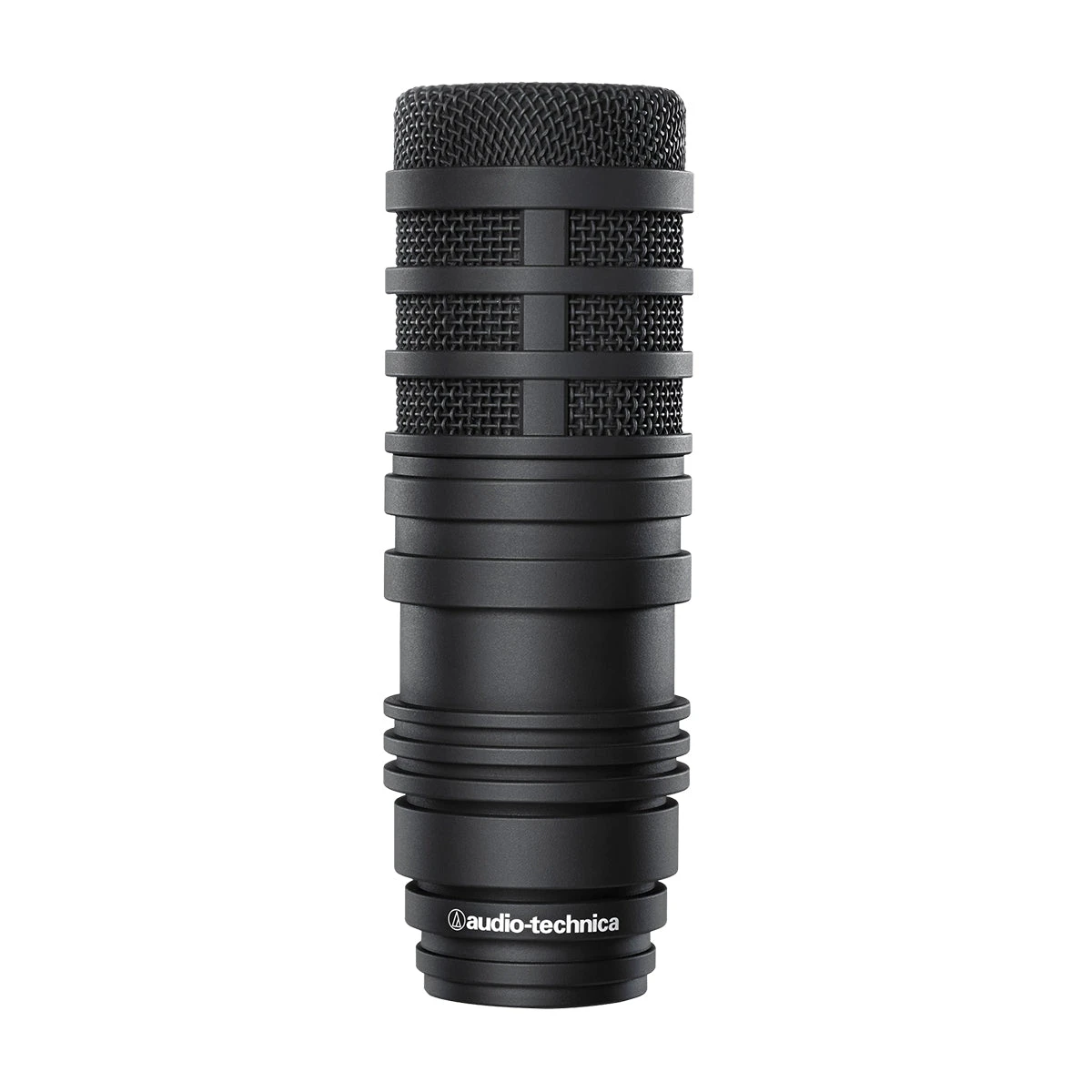

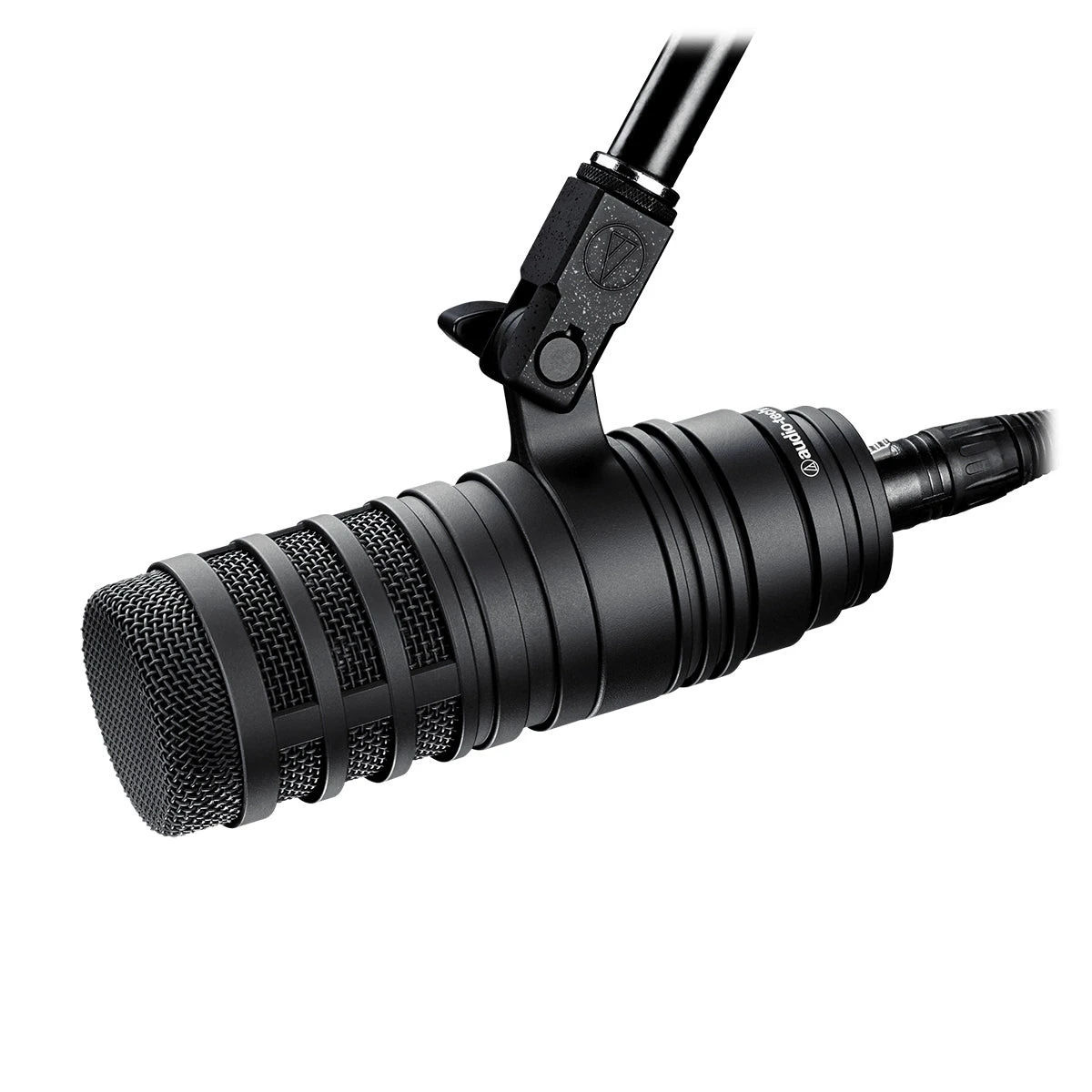

Audio-Technica BP40 Large-Diaphragm Dynamic Broadcast Microphone

The BP40 broadcast vocal microphone offers a rich, natural, condenser-like sound from a large-diaphragm dynamic design. The large diaphragm features patented floating-edge construction that maximizes diaphragm surface area and optimizes overall diaphragm performance, while the humbucking voice coil prevents electromagnetic interference (EMI).

With rugged construction and stylish, waveform-inspired design, the BP40 delivers clear and articulate reproduction, ideal for any broadcast application. Optimized capsule placement helps maintain a commanding vocal presence even at a distance, while the multistage windscreen provides superior internal pop filtering. The BP40 broadcast microphone also includes a switchable 100 Hz high-pass filter to provide even more pop protection.

Features

• Rich, natural, condenser-like sound
• Large diameter diaphragm with patented floating-edge construction for optimal diaphragm performance
• Humbucking coil prevents electromagnetic interference (EMI)
• Hypercardioid polar pattern improves isolation
• Switchable 100 Hz high-pass filter
• Superior off-axis rejection for maximum gain before feedback
• Optimized capsule placement for commanding vocal presence even at a distance
• Multistage windscreen provides superior internal pop filtering
• Rugged, all-metal construction for dependable use in professional broadcast environments

Specifications

Microphones
Element	Dynamic
Polar Pattern	Hypercardioid
Frequency Response	50-16,000 Hz
Low Frequency Roll Off	100 Hz, 6 dB/octave
Open Circuit Sensitivity	–48 dB (3.9 mV) re 1V at 1 Pa
Switches	Flat, roll-off
Weight	632 g (22.3 oz)
Dimensions	164.0 mm (6.45″) long, 56.0 mm (2.20″) diameter
Output Connector	Integral 3-pin XLRM-type

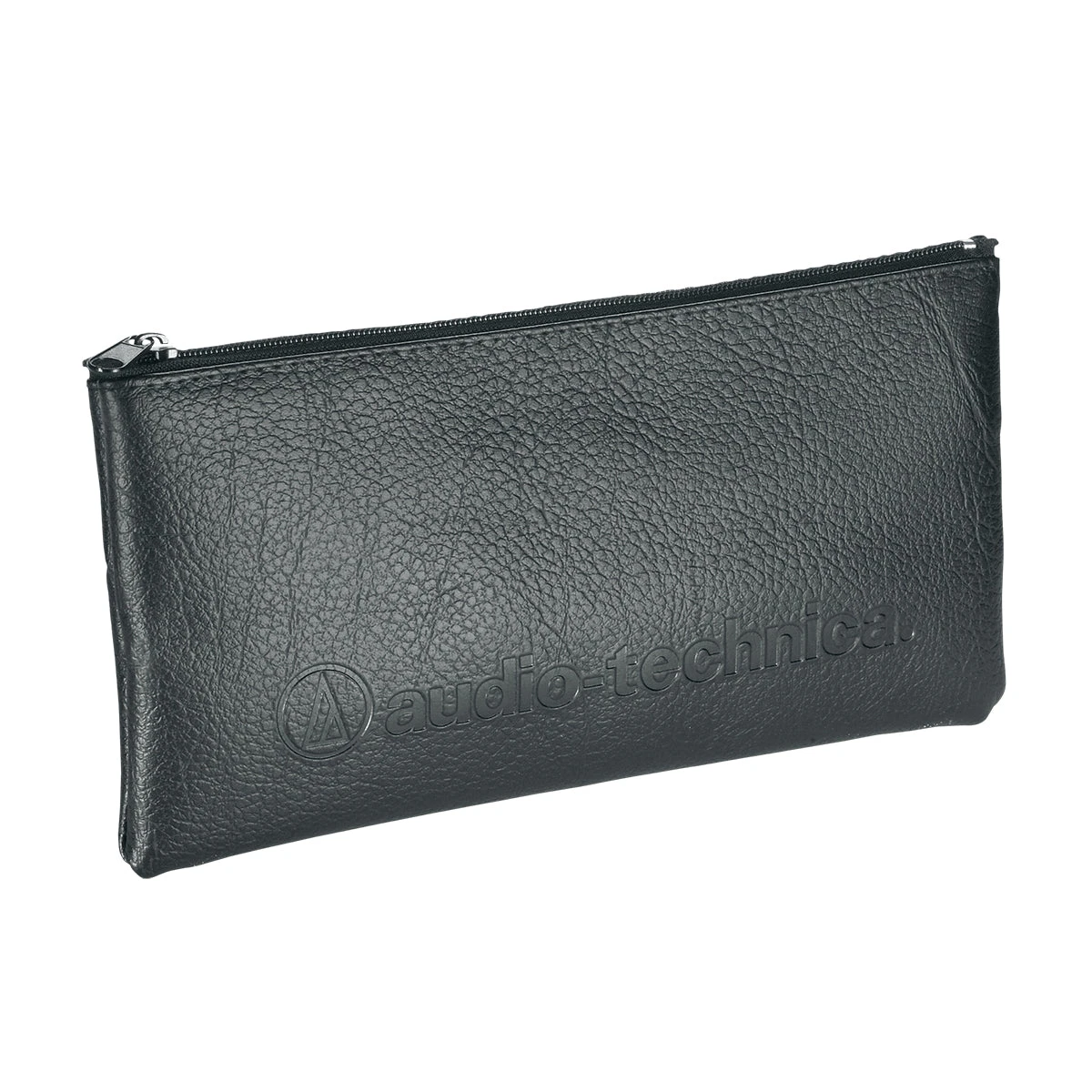

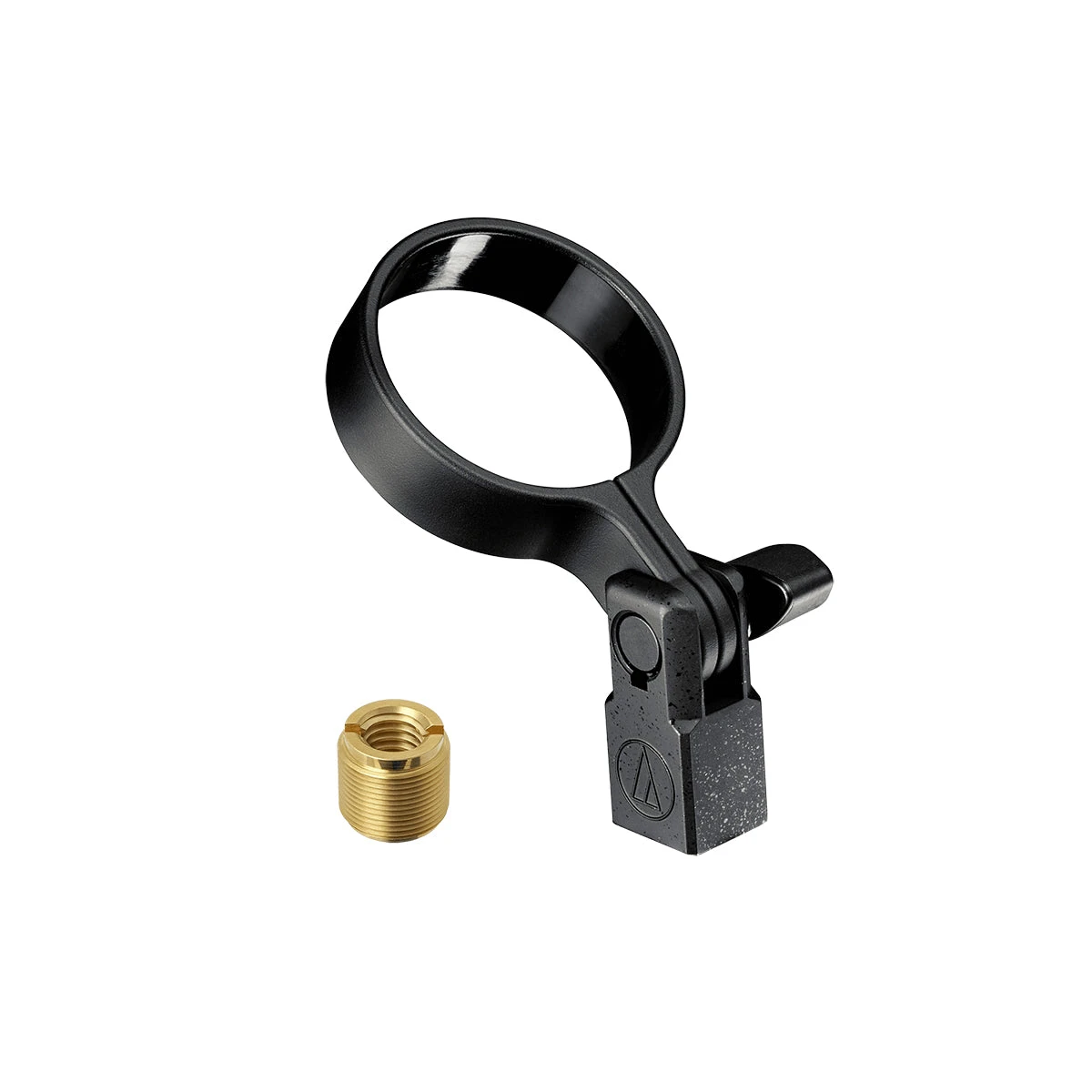

Accessories Included	AT8483 mounting clamp for 5/8″-27 threaded stands; 5/8″-27 to 3/8″-16 threaded adapter; soft protective pouch
Audio-Technica Case Style	R12
