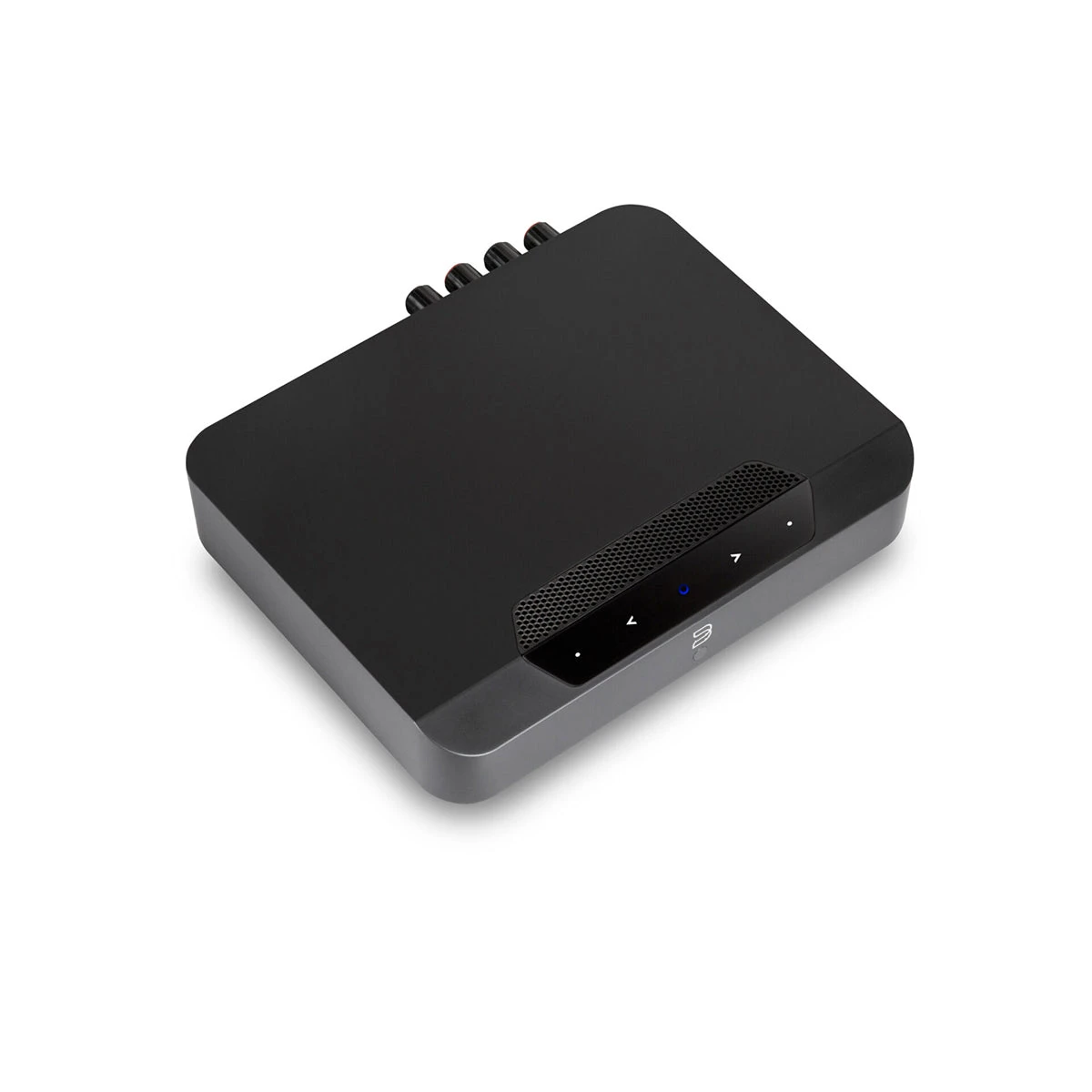

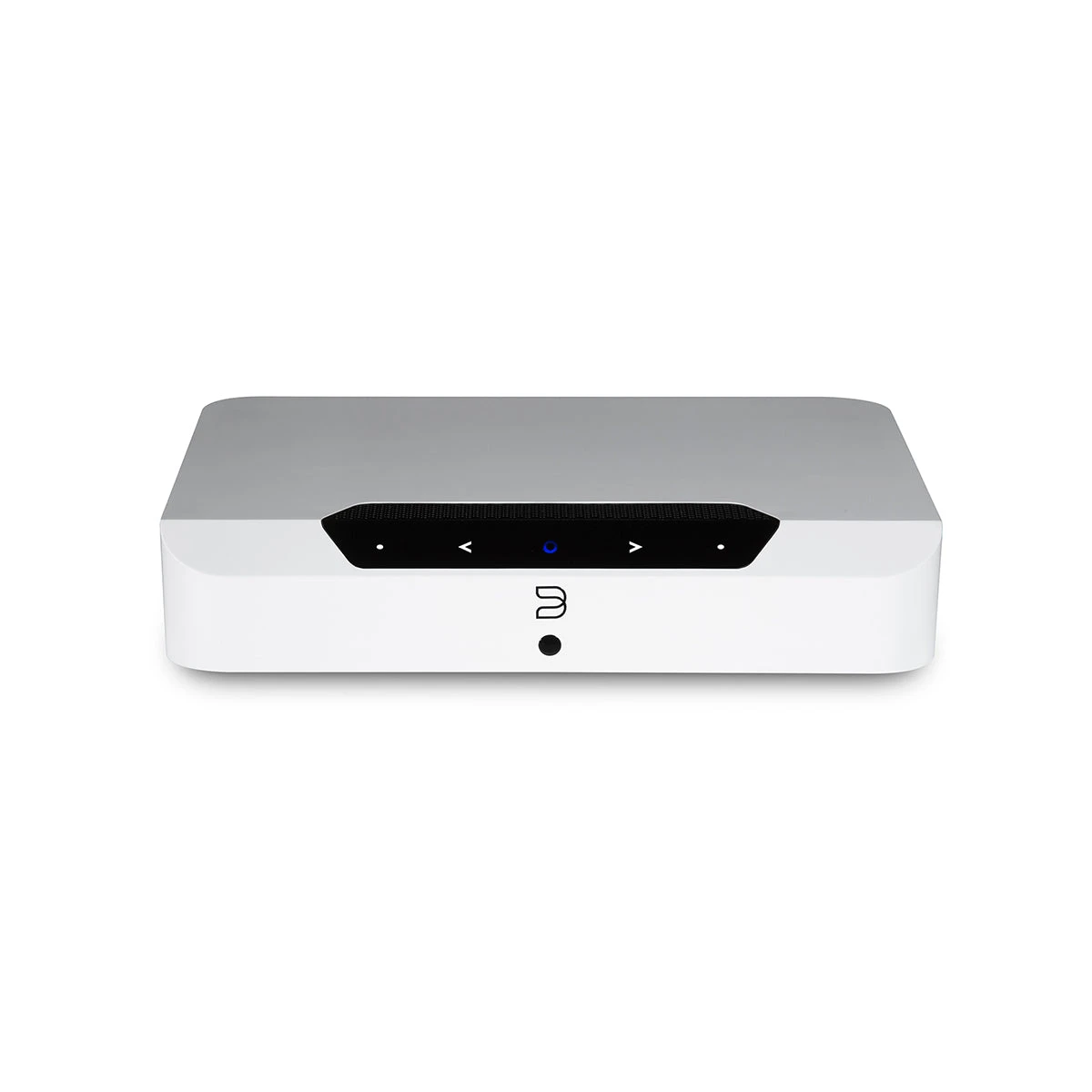

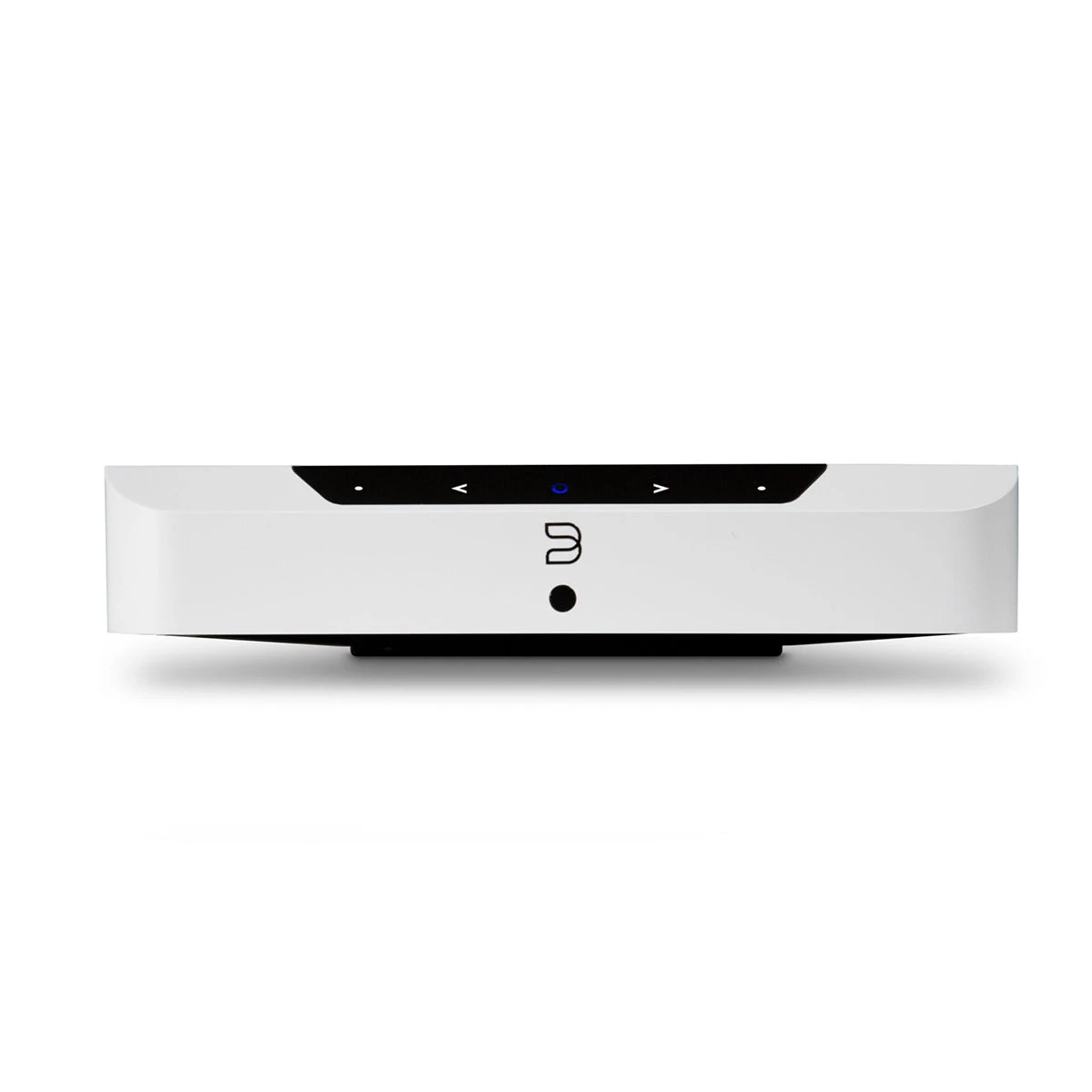

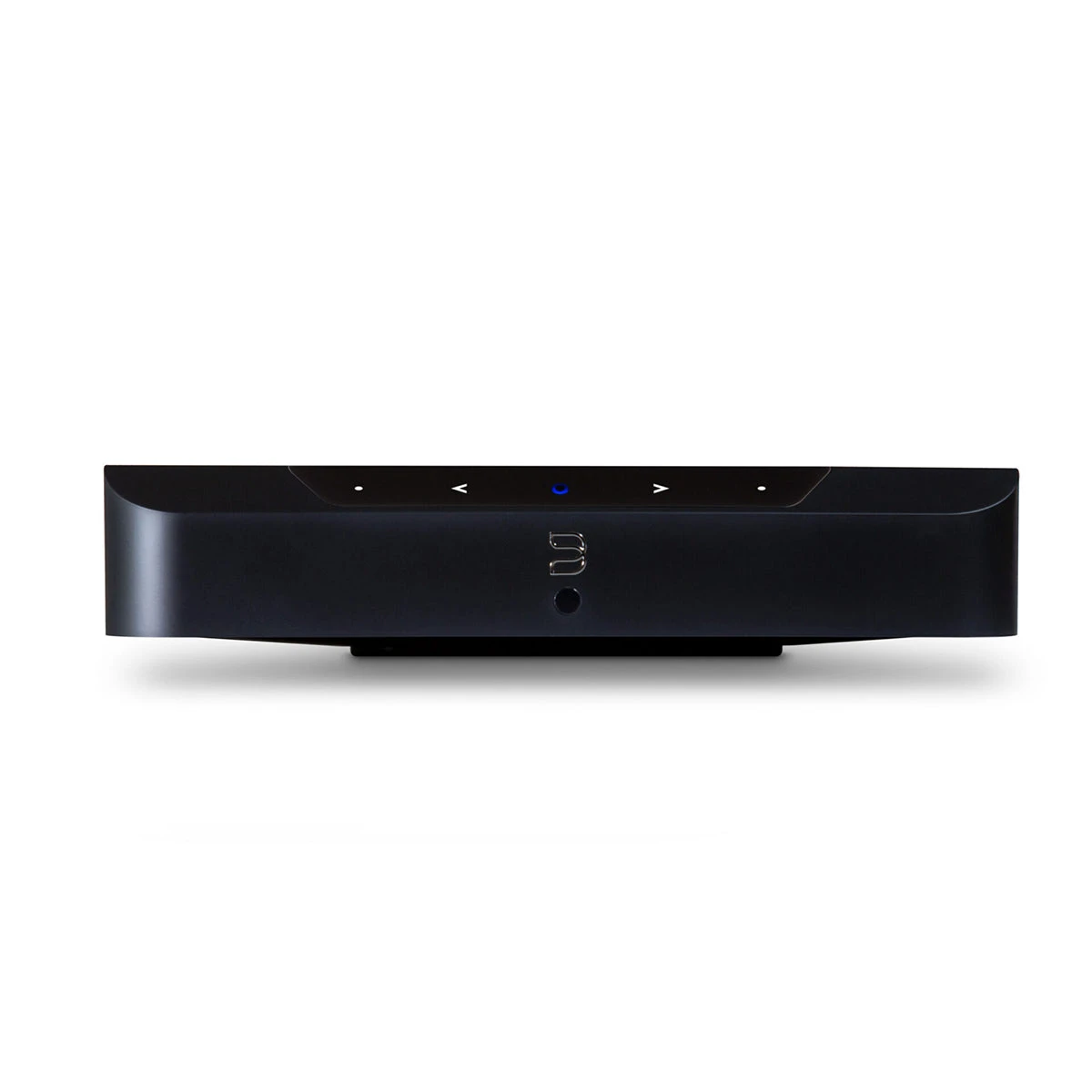

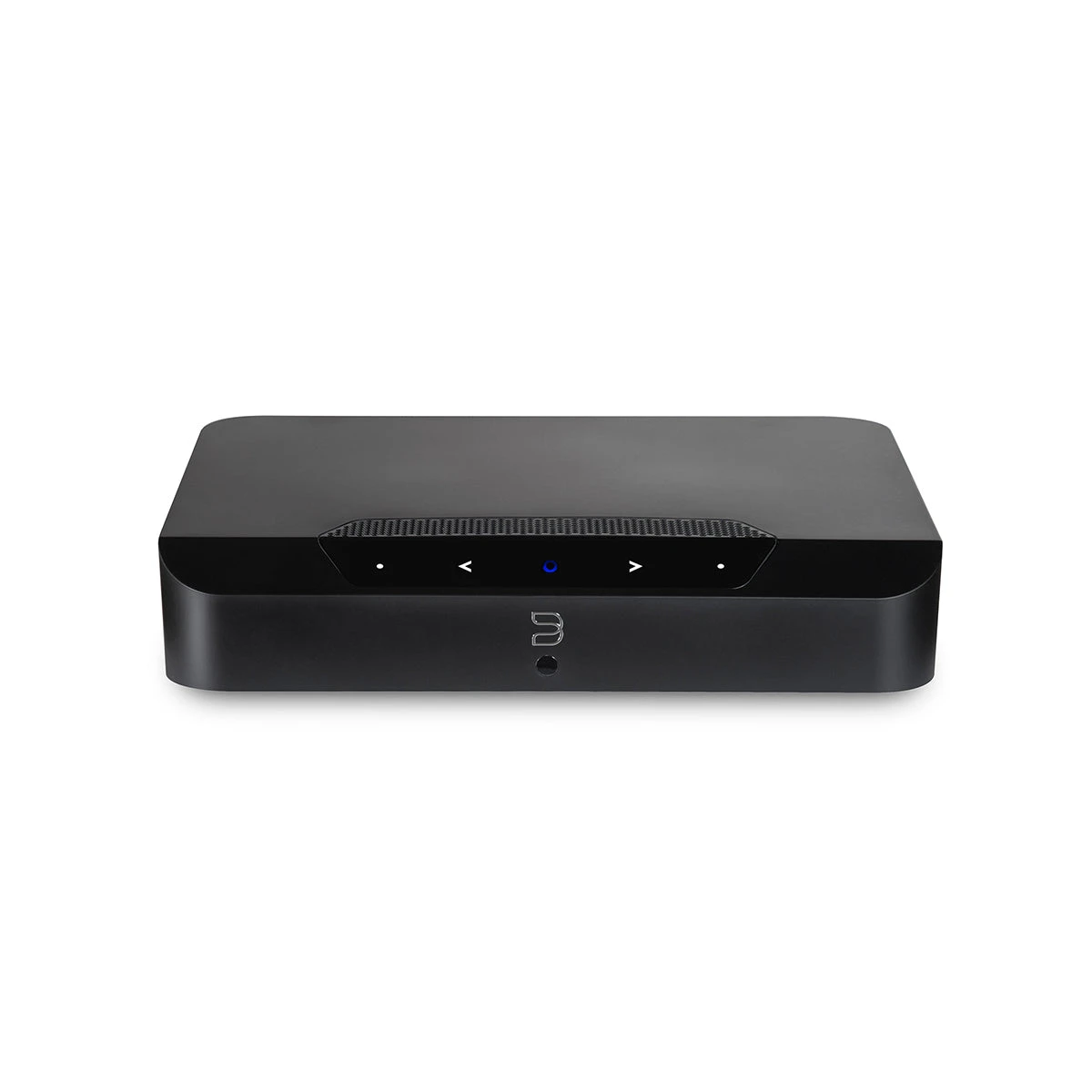

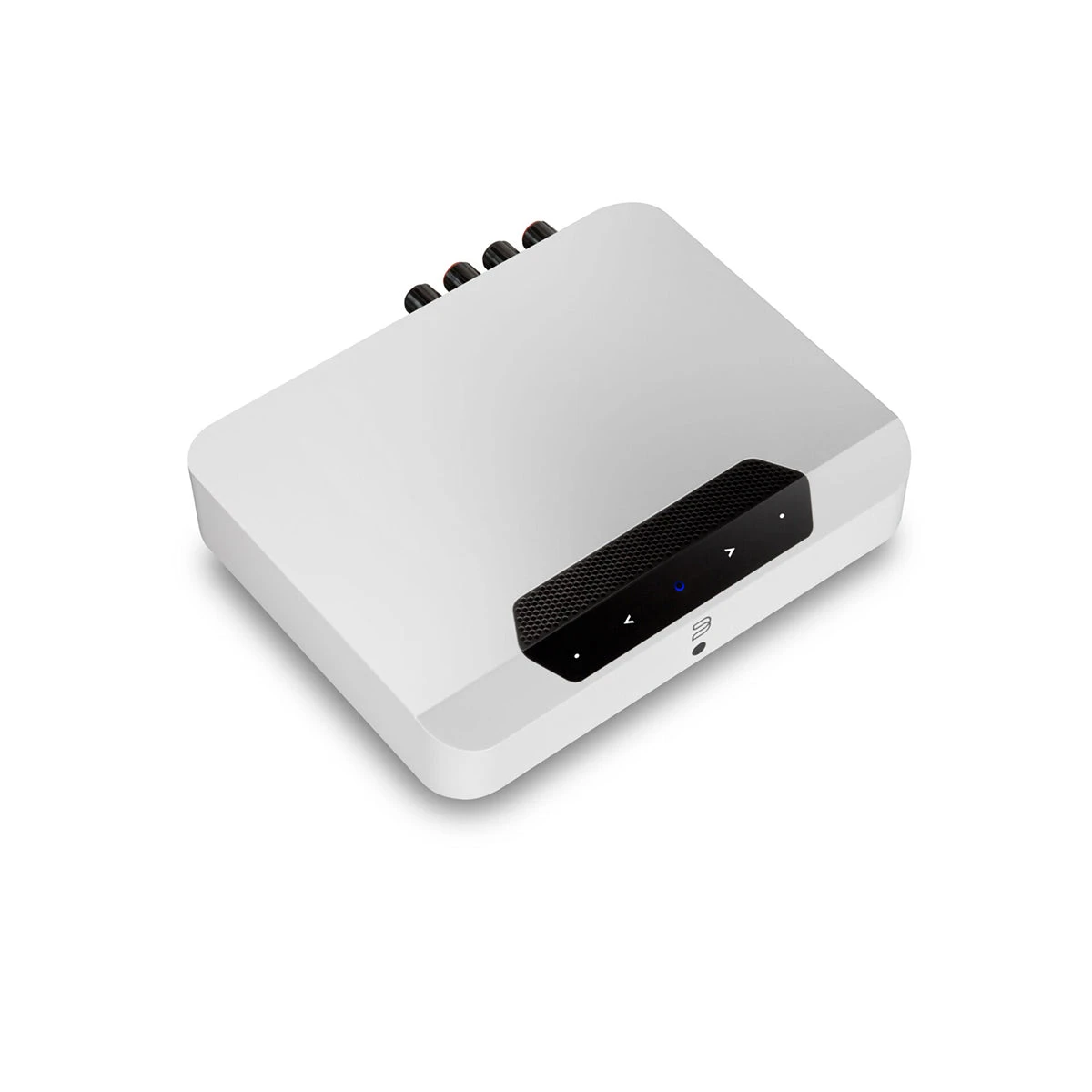

Bluesound POWERNODE EDGE Compact Wireless Music Streaming Amplifier

Compact Wireless Music Streaming Amplifier

The POWERNODE EDGE is the perfect segue into “just add speakers” HiFi for the streaming age, combining streaming sources, control and amplification in a sleek and affordable device.

• Hi-Res streaming
• MQA streaming soundbar
• Spotify
• Tidal Connect
• Apple Airplay speaker
• Roon Ready

Add a little extra power with the POWERNODE EDGE, the perfect entry point into “just add speakers” HiFi for the streaming age, combining streaming sources, control, and amplification all in one place. Audiophile-grade componentry capable of up to 24 bits/192 kHz hi-res audio, and wireless multi-room capabilities with smartphone controls combine to make the POWERNODE EDGE a great ‘building block’ amplifier to start, extend or complete a hi-res streaming audio system of any size.

• Easily power a pair of passive speakers
• 40 Watts per channel of DirectDigital™ amplification technology handling 24 bit/192 kHz files
• A state-of-the-art Quad-Core 1.8GHz ARM® Cortex A53 Processor
• HDMI eARC connectivity
• Digital optical and analog input options, subwoofer output, and Bluetooth® wireless headphone output
• Dolby® Digital decoding
• Dual-band Wi-Fi, Gigabit Ethernet and support for 2-way Bluetooth® aptX™ HD
• Stream hi-res content from internet radio stations, cloud music services or your own local music players
• Intuitive control with the BluOS Controller app
• Elegant capacitive touch panel for quick-access controls (Play, Pause, Volume Up/Down, Previous/Next Track)
• Includes an easy-to-install, multi-orientation wall-mounting bracket
• IR remote learning capability – optional control using the RC1 Remote Controller
• Connect with the BluVoice skill to enable voice assistants like Alexa, Google Assistant and Siri to control Players around the home.
• AirPlay 2 lets you play music or podcasts from wireless stereo components throughout your house — all in sync.

JUST ADD SPEAKERS.

All you need to do is connect a pair of passive speakers to experience an incredible all-in-one HiFi solution. Easily connect wired sources, like a TV or turntable, with HDMI eARC or the combo analog/digital input. Add the PULSE SUB+ Wireless Subwoofer for a powerful but compact 2.1 stereo system or even use the POWERNODE EDGE to power the rear channels of a wireless Bluesound surround sound setup. Using the BluOS Controller App, select songs from popular streaming services like Spotify, Tidal, Qobuz, SiriusXM, from your own music library through Apple Airplay2, aptX™ HD Bluetooth®, or even a network-connected drive or USB hard drive.

COMPACT POWER

Bring your speakers to life with the powerful, punchy 2 x 40 watts DirectDigital™ amplifier in the POWERNODE EDGE, able to handle hi-res, 24 bit/192 kHz files and MQA-encoded tracks with ease. Enjoy clarity in playback of everything from densely-layered heavy metal tracks to whisper-quiet dialogue in movies and TV shows. The POWERNODE EDGE decodes Dolby® Digital content on its own and can also be used to power the rear channel speakers of a wireless home theater system.

SPACE SAVING

Your sonic oasis doesn’t have to take up all your real estate. With the POWERNODE EDGE, gone are the days of bulky, oversized amplifiers. Comparable in size to the average hardcover book, this small yet mighty HiFi system transforms any space into a high-fidelity haven.

HI-RES FOR EVERY CORNER

The sleek and compact form factor of the POWERNODE EDGE makes it ideal for secondary rooms like offices and back porches. Equip speakers in every corner of your house with power plus streaming and hide the POWERNODE EDGE away from sight in nooks like closets or behind sofas using the included multi-orientation wall-mount bracket.

INTUITIVE CONTROL

Control is always at your fingertips via the BluOS Controller app for iOS, Android, Mac, PC, or using the elegant capacitive touch panel for quick-access controls like Play, Pause, and Volume Up/Down, and Previous/Last Track. The POWERNODE EDGE connects to your home network via Wi-Fi or Ethernet. Hands-free control is possible with voice assistants like Siri, Alexa, and Google Voice. For professional smart home installers, full-feature drivers are available for Lutron, Crestron, RTI, Elan, and other popular control systems.

SPECIFICATIONS

Audio

Supported Audio File Formats

MP3, AAC, WMA, WMA-L, OGG, ALAC, OPUS

Supported Hi-Res Audio File Formats

FLAC, MQA, WAV, AIFF, MPEG-4 SLS

Supported Multi-Channel Audio Formats

Dolby® Digital

Native Sampling Rates

up to 192 kHz

Bit Depth

16-24

Audio Controls & EQ

BluOS Controller App

Signal-to-Noise Ratio

-91dBA

Distortion

THD+N, 0.008%

Amplification

DirectDigital™

Rated Power Output

40W x 2 (8 Ohms)

IHF Dynamic Power

80W (4 Ohms) / 50W (8 Ohms)

Minimum Impedance

4 Ohms

Software & Integrations

Operating System

BluOS

App Controller Operating Systems

iOS, Android, Windows, macOS

Processor

ARM® Cortex™ -A53, Quad-Core, 1.8GHz per core

Supported Network File Sharing

Server Message Block (SMB) up to 200,000 files

Album Art Supported

JPG, PNG

Music Services & Internet Radio

23+

Voice Control Integrations

Amazon Alexa Skills; Actions on Google

3rd-Party Integrations

AirPlay 2
Spotify Connect
Tidal Connect
Roon Ready

Control System Integrations

Control4, Crestron, URC, RTI, ELAN, Lutron

BluOS Home Theater

Yes – rear surround channels

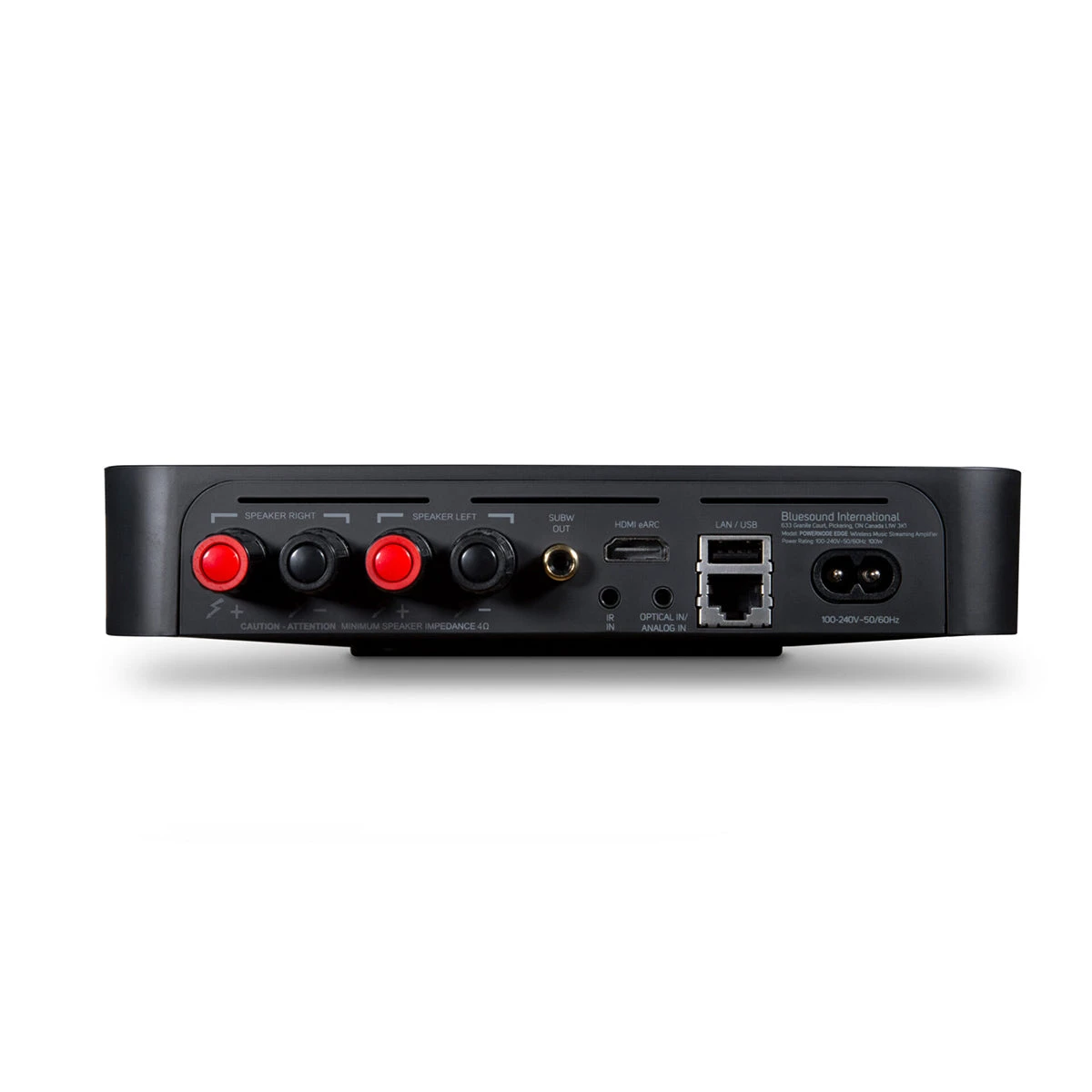

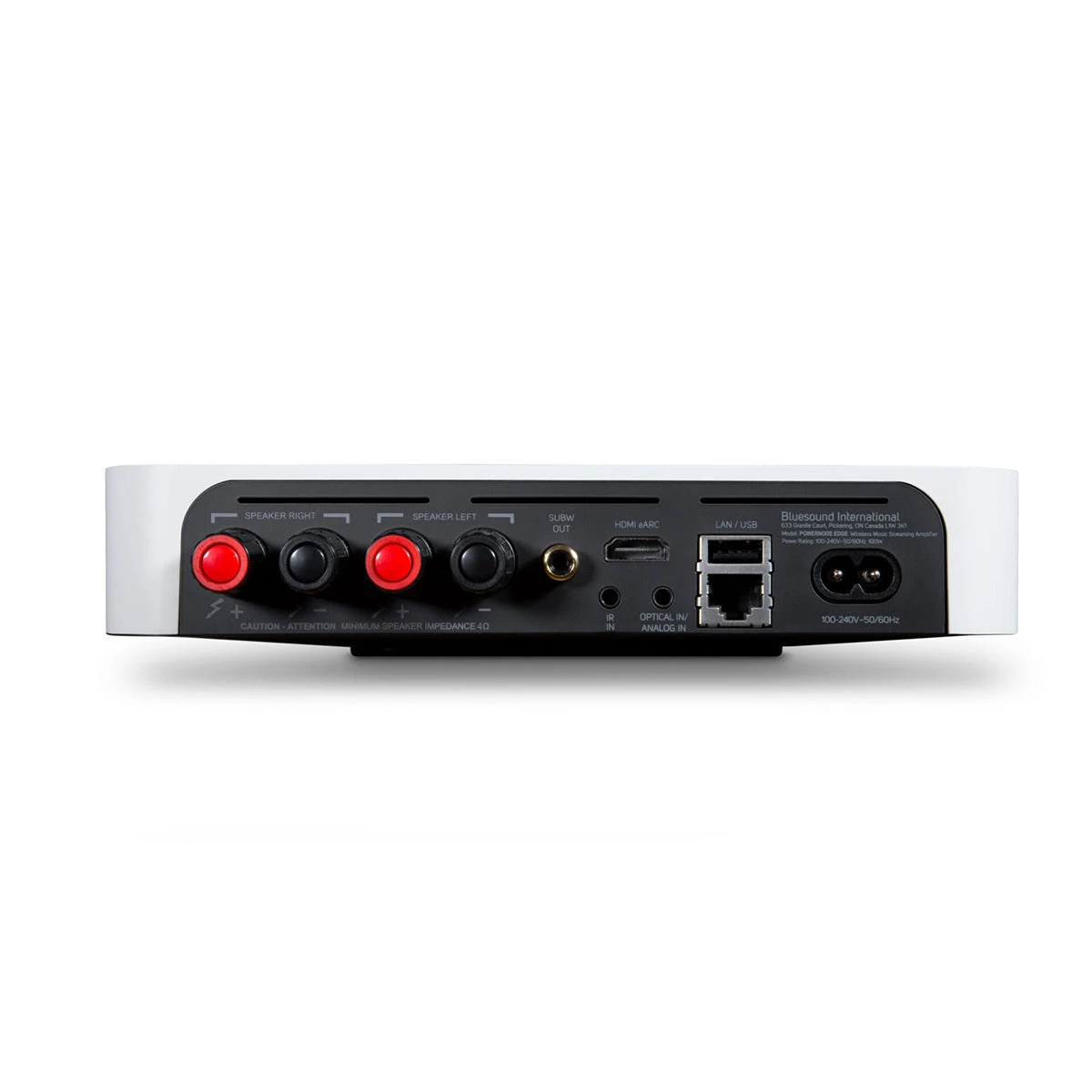

Connections

Power Supply

Universal bi-pin AC cord input (100-240AC)

Ethernet/LAN

Ethernet RJ45, Gigabit 1000 Mbps

Wi-Fi Built In

Wi-Fi 5 (802.11ac), dual-band

Bluetooth Quality

Bluetooth 5.0 aptX HD

Bluetooth Connectivity

Two-Way (transmit & receive)

IR Optical Built In

IR Sensor Built In – front panel with IR Remote Learning

IR Input

3.5mm Jack

Optical/Analog Input

Combo – Mini TOSLINK/Stereo 3.5mm

HDMI Input

HDMI eARC

USB IN

Type A (Fat32 Formatted)

Headphone Output

Bluetooth only

Subwoofer Output

RCA x 1; Wireless to PULSE SUB+

Speaker Terminals

5-Way Binding Post

User Interface & Control

Status Indicator

LED

Play/Pause Button

Touch LED

Volume Control Buttons

Touch LED

Previous/Next Track Buttons

Touch LED

Preset Buttons

In-App

General

Finish

Black/White; Matte Satin Paint

Max Power Consumption

210W

Storage Environment

-10°C to 50°C, 20% to 80% relative humidity

Operating Environment

‘0°C to 40°C

Product Weight

1.37kg/3.02lbs

Product Dimensions

219 x 44.5 x 193 mm
8.6 x 1.75 x 7.6 in

Shipping Weight

2.62kg/5.78lbs

Shipping Dimensions

300 x 300 x 95 mm
11.8 x 11.8 x 3.74 in

Included Accessories

• 120V AC Power Cord
• 230V AC Power Cord
• Ethernet Cable
• TOSLINK Optical to 3.5mm Mini Adapter
• Metal Mounting Bracket
• Metal Mounting Screw
• Rubber Mount Attachment
• Safety/Warranty Guide
• Quick Setup Guide
