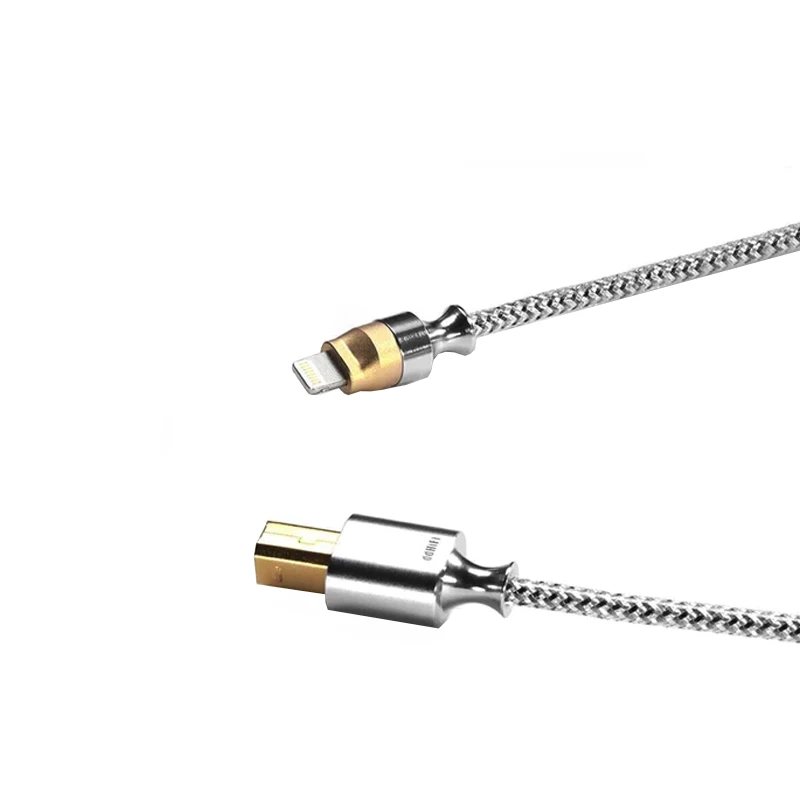

DD DdHiFi TC07BL Lightning To USB-B OTG Decoding Cable

Nyx Series Silver Shielded Cable (Version 2.0)

The 1st gen of silver-shielded cable was applied to the Nyx 09 series. It uses a relatively complex structure with separate shielding for its power supply and data transmission, which is of great help to devices that are susceptible to interference in the power supply. The Nyx 07 series uses the 2nd gen of silver shielded cable, which arranges the power supply and data conductors at equal intervals. It also uses imported insulation material and adjusted the density of the shielding grid, black-and-white spacing and outer-layer insulation to match the impedance.

Specifications

• Cable Structure: Power & Signal with Shielding
• Inner Insulation: NUC High Precision Chemical Foam PE (Made in Japan)
• Outer Insulation: High Transparency PVC (Made in USA)
• Core Thickness: 27AWG×2
• Core Material: High Purity Litz Type2 4N Solid Core Silver ($0.08mm×19×2)
• Power Part
• Core Thickness: 22.9AWG×2
• Core Material: High Purity Litz Type2 Oxygen-Free Copper ($0.05mm×19×7×2)
• Shielding Material: Litz Silver Plated over LCOFC
• Cable Diameter: 4.0mm
• Cable Length: 50cm and 100cm for option
