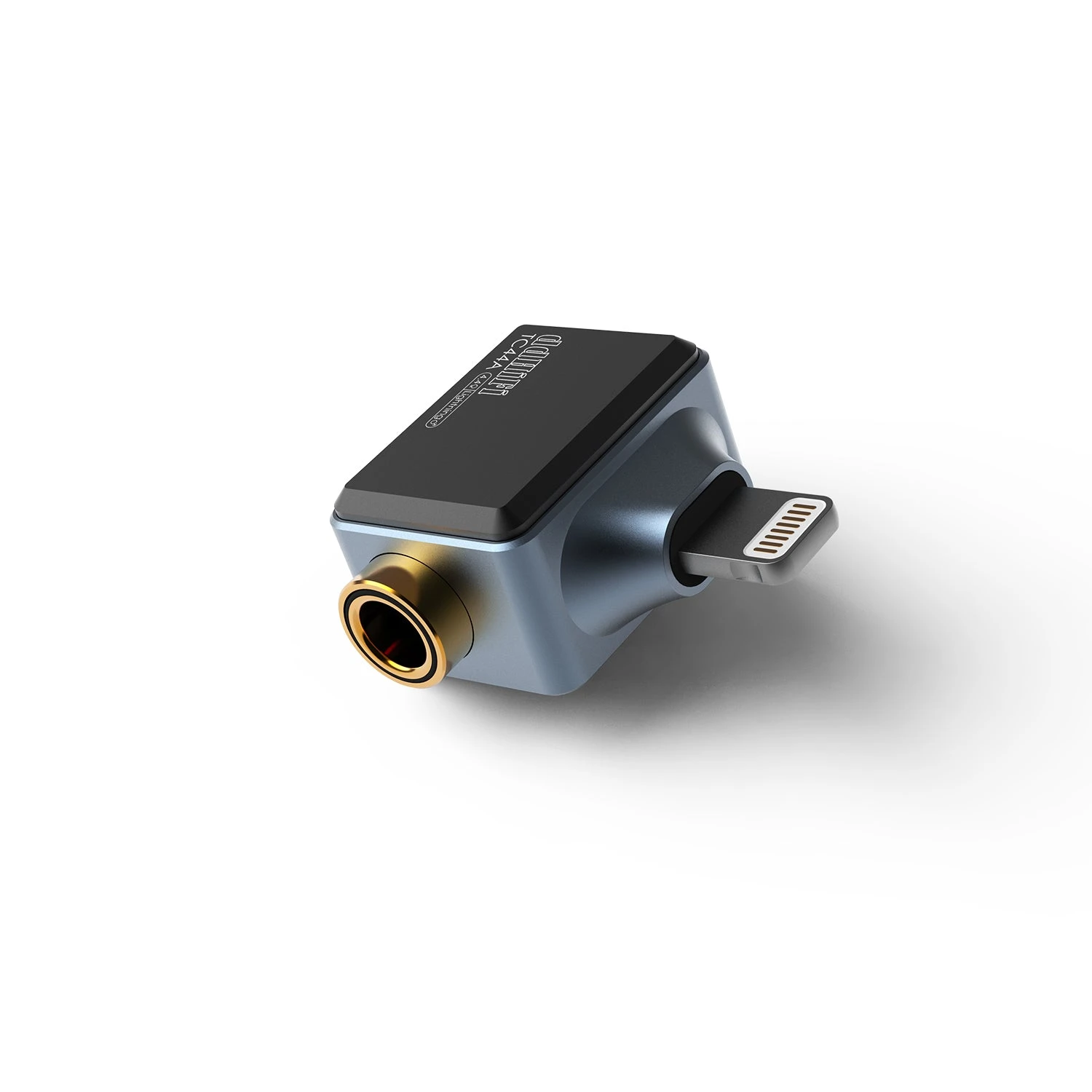

DD DdHiFi TC44A Lightning To 4.4mm Adapter (Open Box)

4.4mm Miniaturization Realized through Exquisite Technique

Independent decoding chip

It uses CS43131 for the audio decoding chip, which supports native DSD256 and up to 32-bit 384kHz PCM decoding. It can fully decode and play music in lossless format when using Apple Music on iPhone.

Equipped with T-Shaped Lightning OTG plug

ddHiFi developed this new generation of T-Shaped Lightning OTG plug, which has optimized the circuit layout to improve power supply stability, so as to make the output of decoding chip more stable. The plug is made of powder metallurgy and welded with special stainless steel reinforcement.

4.4mm Single-ended

For 4.4mm earphone cable users, when they want to listen to music on their mobile phone and don’t want to connect too many devices, a simple adapter is the most ideal way at present. The conventional 4.4mm terminated devices are generally large in size, but the TC44A adopts a brand new process structure, so as to make the 4.4mm socket look so small.

Overall CNC aluminum alloy, new color matching

Aluminum alloy is light and has great advantages when used in adapter. The black and blue color matching used this time caters to the popular color of iPhone, and the special treatment process of shell also enhances the metal texture.

Specifications

• DAC chip: CS43131
• Output power: 60mW dual channels (32Ω)
• PCM decoding capability: 32bit/384kHz
• DSD: Supports up to Native 256
• Frequency response: 20Hz~20kHz
• THD+N: <-110dB
• Dynamic range: > 120dB
• SNR: > 120dB
• Dimensions (excl. the plug): L19.5* W21xT12mm
• Weight: 5.5g

Comparison

	TC35i 2021	TC35i 2022	TC35C	TC44A
DAC Chip	Apple C100	Apple C101	Realtek ALC5686	Cirrus Logic CS43131
PCM Decoding	24bit/48kHz	24bit/48kHz	32bit/384kHz	32bit/384kHz
DSD Support	x	x	x	Native 256
Earphone Jack	3.5mm	3.5mm	3.5mm	4.4mm
Output Mode	Single-ended	Single-ended	Single-ended	Single-ended
Output Power	16mW (30Ω)	16mW (30Ω)	30mW (32Ω)	60mW (32Ω)
In-Line Remote Controls
	Play and change tracks	Play and change tracks	Play and change tracks	x
	Answer phone call and voice assistant	Answer phone call and voice assistant	x	x
	Voice message and video	Voice message and video	x	x
Recognition Speed	About 1s	About 1s	About 3s	About 3s
Dimensions (mm)	18.8 x 11.4 x 10.4	18 x 17 x 9.8	16.6 x 16.2 x 9.6	19.5 x 21 x 12
Weight (g)	3.6	3.7	3.5	5.5
