FiiO BTR7 Portable High-Fidelity Bluetooth Amp/DAC (Open Box)

BTR7 Portable Bluetooth Amplifier

Color IPS display | High-performance DAC ES9219C*2 | THX AAA-28*2 amps
Wired+Wireless charging support 3.5+4.4mm outputs | One-click “dongle” mode
Qualcomm QCC5124 Bluetooth chip | XMOS XUF208 | Supports app control and OTA upgrade

*The BTR7 standard edition includes a Type-C to Type-c adapter cable.
*The BTR7 Apple edition includes two adapter cables, Type-C to Type-C and Lightning to Type-C.

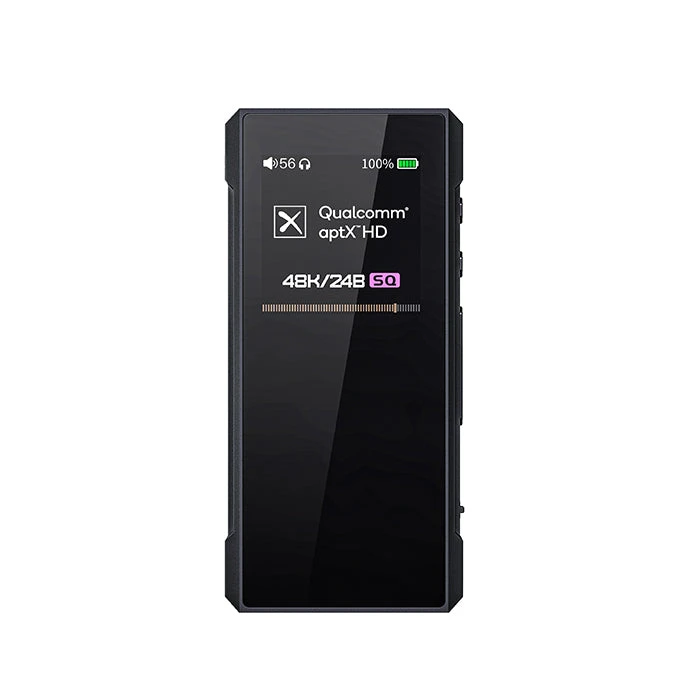

Radiantly brilliant Color IPS display

The brand-new BTR7 features the seventh-generation mecha design language, giving it riveting looks. Its comfort-and-ergonomics optimized laminated aluminum alloy body is paired with a 1.3-inch IPS color display that is the showpiece of the BTR7. The display features a brand-new, colorful UI that presents important information such as volume, power, gain, and audio format in an intuitive way – just another part of the BTR7’s brilliance.

Control the power of sound High-performance DAC ES9219C*2

In each of the left and right channels of the BTR7 is the ES9219C, which is paired with a low-pass filter and an amplifier in a highly-optimized audio architecture that captures every last detail and dynamics in your music. And with support for MQA, your music will definitely come across clearly and boldly.

Extraordinarily bold, THX AAA-28*2 amplifiers

The BTR7 is the first portable Bluetooth amplifier to utilize 2 of the THX AAA-28 amplifiers. The FiiO R&D team had a breakthrough and was able to fit 4 channels of the THX AAA amplifiers into a compact body for a fully balanced audio design – resulting in 88% more single-ended power output and 30% more balanced power output compared to previous designs. Experience an extraordinarily bold symphony of music with the BTR7.

Wireless freedom, Qualcomm QCC5124 Bluetooth chip

Experience your music when travelling without the mess of wires! The Qualcomm QCC5124 Bluetooth chip, with its dual DSP and dual-core CPU architecture, not only ensures stable connections but also supports both high-res formats like LDAC/aptX HD/aptX Adaptive and more common formats like AAC/SBC.

Patented design Seamlessly integrated metal antenna

Befitting of its status as a high-end Bluetooth amplifier, the BTR7 adopts FiiO’s own patented seamless metal frame antenna design, which not only looks handsome but also ensures Bluetooth connections are more stable and interference-free.

All-encompassing, XMOS XUF208 control chip

When used for USB Audio, the BTR7 relies on the XMOS XUF208 chip to receive and decode audio data streams, with support up to PCM 384kHz and native DSD256. In USB DAC mode and with an MQA player, up to MQA 8x rendering is supported.

Worry-free battery life Wired+Wireless charging support

As a multifunctional Bluetooth amplifier, the BTR7 needs plenty of battery power when used throughout the day. Not only has the battery capacity been increased to 880mAh, but both wired and wireless charging supports allow you to charge in more scenarios. USB wired charging is fast and efficient, while Qi wireless charging is convenient and will automatically stop charging when the battery is full.

Widely compatible, 3.5+4.4mm dual output

Each update of the BTR series reflects contemporary trends in the personal audio world. With the BTR7, this means a 4.4mm balanced headphone output in addition to the traditional 3.5mm single-ended headphone output – for a more detailed audio experience in a jack format now widely used.

A new way to listen One-click “dongle” mode

The BTR7 can also be used as a “dongle”, acting as a wired decoder and headphone amplifier for your phone. Simply press the “CHARGE” button with one click to switch into and out of “dongle” mode. Compared to the typical “dongle”, the BTR7 does not consume your phone’s battery power while still maintaining its great sound quality and large power output.

In total control Companion app control and OTA upgrades

The BTR7 not only supports in-line controls, but also supports control done via a companion app – allowing you to operate it without even taking out the device itself! For instance, the equalizer functionality in the companion app allows you to adjust your music to your tastes conveniently from your phone/device. Through the app, the Bluetooth and system firmware can also receive OTA updates. And there are even more functions waiting for you to be discovered in the companion app!

*If the USB firmware is stable there is no need to update it, but updates can be done via a USB cable if necessary.

More scenarios

1.UAC 1.0 driverless mode
Simply plug-and-play, for the most convenience

2. Long-distance comfort, car mode
The device will switch on and off with the car

3. Daily usage, with earphone in-line controls
The BTR7 supports in-line controls, making it easy to simply place in your bag to listen to music and make calls.

4. Working just for you, custom function buttons
Within the companion app, you can customize what the buttons do – such as long-pressing the volume key to continuously adjust the volume or to skip songs – to exactly meet your needs.

Specifications

Model	BTR7	Color Available	Black
Weight	About 68g	Dimensions	About 39.6×83.6×14.6mm
Audio Input	Bluetooth connection (Bluetooth 5.1supported)	Supported Audio Format(s)	AAC/SBC/aptX/aptX LL/aptX adaptive/aptX HD/LDAC
Driver-free mode（Switch mode）	Supported	In-vehicle mode	Supported
NFC	/	Mic Function	Yes （Only supports voice calls under Bluetooth mode. Built-in omnidirectional microphone. Only supports the microphone of the CTIA standard headphones.）
Single-ended Headphone Output	3.5 mm stereo port	USB Port	TYPE C (USB2.0)
Balanced Headphone Output	4.4mm port	Recommended headphone impedance	16~100Ω（PO）
			16~150Ω（BAL）
Channel Balance	≤0.2 dB	Gain	Supported(High/Low)
Volume Control	Side buttons	Status indication	Codec, charging status, battery level, volume, sampling rate, menu
APP interconnection	Supports setting through App	Bluetooth Codes Display	Supported
Charging Time	Wired charging time: ≤1.5 hours Wireless charging time: ≤3 hours	Power Input	Recommend DC 5V 2A
Battery Capacity	880 mAh	Frequency Response	PO 20Hz~50kHz：±＜0.5dB
Output Power	PO about 165mW（16Ω loaded）		PO 20Hz~20KHz：±＜0.1dB
	PO about 160mW（32Ω loaded）
	PO about 18mW（300Ω loaded）
	BAL about 235mW（16Ω loaded）		BAL 20Hz~50kHz：±＜0.5dB
			BAL 20Hz~20KHz：±＜0.1dB
	BAL about 320mW（32Ω loaded）
	BAL about 40mW（300Ω loaded）
THD+N	＜0.00055%(1kHz/-6dB@32Ω)	Output Impedance	PO≤＜1.2Ω（32Ω loaded）
	＜0.00048%(1kHz/-2dB@32Ω)		BAL＜2.8Ω（32Ω loaded）
Noise Floor	PO＜3uV（dbA）	Amplitude	PO：2.3Vrms
			BAL: 3.2Vrms
	BAL＜5.5uV(dbA）
SNR	PO≥≥118dB (dbA)(32Ω dbA)	Crosstalk	PO≥75dB
			BAL≥107dB
	BAL≥115dB (dbA)(32Ω dbA)
Sampling Rate Supported Up to	384kHz/32bit（USB DAC）	DSD Support (USB IN)	384KHz 32bit/ DSD256
hardware scheme	DAC: ES9219C *2，USB: XMOS XU208，AMP：THX_AAA_28*2	Accessories	Standard version: Type-C USB cable*1, Type-C to Type-C data cable*1, Leather case*1, Manual*1, Warranty card*1
			Apple Deluxe Edition: Charging cable, back clip, manual, USB Type-C to Type-C silicone cable, Lightning to USB Type-C cable

Comparison

Model	BTR7	BTR5 2021
Volume Adjustment	60 Steps / Independent adjustment	60 Steps / Independent adjustment
MQA Renderer	√	√
Bluetooth Profile	SBC，AAC，aptX, aptX Low Latency，aptX HD, aptX Adaptive,LDAC	SBC, AAC, aptX, aptX LL, aptX HD, LDAC
Supported Audio Formats	A2DP，AVRCP，HFP，HSP	A2DP，AVRCP，HFP，HSP
Bluetooth Version	5.1	5.0
Bluetooth Chip	QCC5124	CSR8675
DAC Chip	ES9219C×2 THX AAA 28 x2	ES9219C×2
Amp Chip
USB DAC Chip	XMOS XUF208	Xmos XUF208
USB DAC Format	384KHz 32bit/ DSD256	384k/32bit DSD 256
Dedicated Pairing Button	√	√
Dedicated Volume Button	√	√
Transmission Distance (at open area)	About 10m	About 10m
Status Indicator & Displayer	1.3-inch IPS display	0.49′ 64×32 OLED Battery, Format, Volume Menu setting
Line Control	CTIA Microphone/Vol/Track	CTIA Microphone/Vol/Track
APP Controller	√	√
Hands-free Call / Mic	√	√
Call up Siri in iOS	√	√
NFC	/	√
3.5mm Headphone Output	160mW	80mW
2.5mm Balanced Output	/	240mW
4.4mm Balanced Output	320mW	/
SNR(A Weight)	117dB	122dB
USB Port	Type C	Type C
Battery Capacity	880mAh	550mAh
Battery Life(AAC mode)	about 9h	About 9h
Charging Time	Wired charging time: ≤1.5 hours Wireless charging time: ≤3 hours	1.5h
Dimensions	About 39.6×83.6×14.6mm	72*32*11.1mm (excl. back clip)
Wearing	Leatherette case	Back clip + Lanyard
Weight	About 68g	43.7g
