HeadAmp GS-X Mini Balanced Headphone Amp/Pre-Amp

HeadAmp GS-X Mini Balanced Headphone Amplifier/Pre-Amp

The Craftsmanship

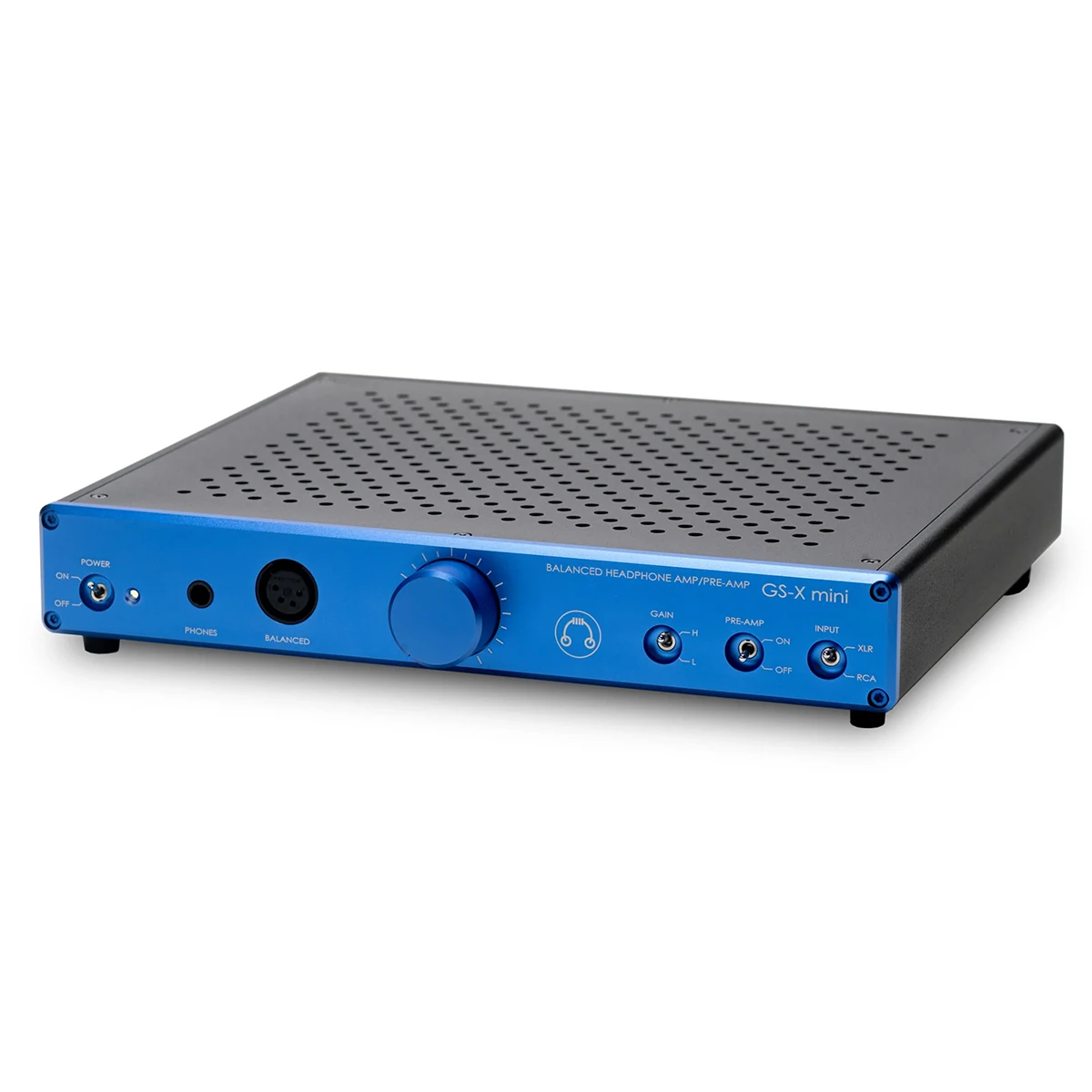

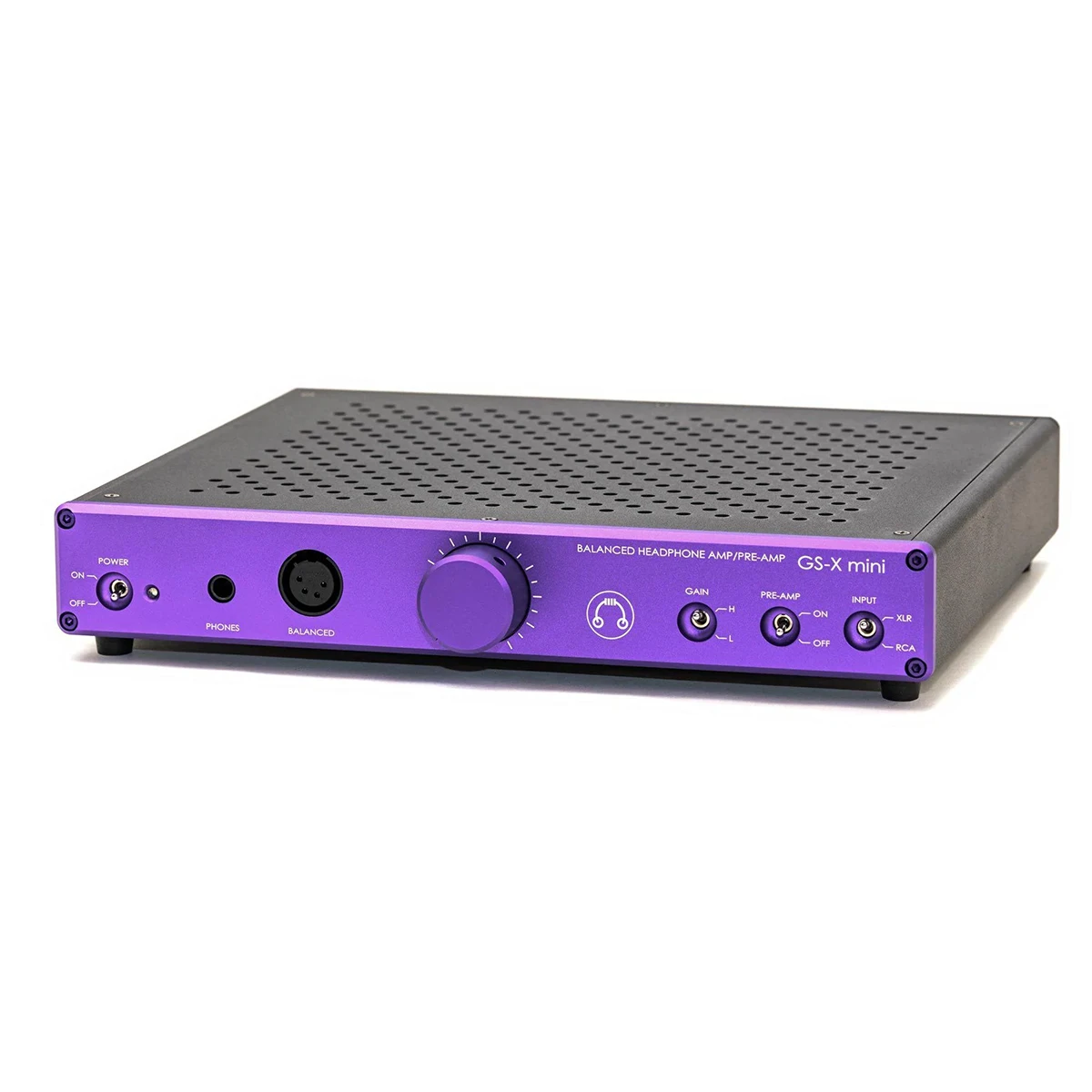

A desktop-friendly one-box configuration helps GS-X mini fit conveniently into your home or office. HeadAmp’s fastidious dedication to quality, fit, and finish make it a piece that retains it’s beauty through its’ long life of service.  The characteristic colored front panels well-known from our Blue Hawaii SE and GS-X mk2 are available on GS-X mini allowing your choice of custom flourish.

The Story

Built using a special variation on our well-reviewed class-A audio circuit from the GS-X mk2 based on the famous dual-differential design by Kevin Gilmore the new GS-X mini is the first HeadAmp product to deliver balanced headphone drive from all audio sources, single-ended, or balanced.  This means no more compromising your headphone experience when using a single-ended source, your high-end headphones will always benefit from the speed and power of balanced drive when connected to the GS-X Mini.

Now paired with a custom discrete power supply based on the Golden Reference Low Voltage design the Mini can out put up to 6W making the GS-X mini a great pairing with most medium-to-low sensitivity headphones, and high impedance headphones, whose sound comes alive when given balanced drive and higher power. Models like the Sennheiser HD800S, HIFIMAN HE-1000SE, Audeze LCD-5 all benefit from the clean, steady power delivery just as well as with easier to drive headphones like the Dan Clark Audio Ether series, Audeze LCD-X, and HIFIMAN Ananda. With balanced drive from any source, even single-ended ones, there’s no excuse not to give your high-end headphones the power they crave, by connecting them to the new GS-X Mini.

Features

• Balanced 4-pin XLR Output
• SE 1/4″ Phones Output
• Low & High Gain options
• 1 pair Single Ended RCA Input
• 1 pair 3-pin XLR Input
• 1x stereo pair RCA Outputs
• 1x stereo pair XLR Outputs
• Standalone Preamp Function
• Pre-Amp Switch: Enables Pre Outs & mutes headphones
• 3 Year Warranty on all Parts and Labor

Technical Specs

• HEADPHONE OUTPUT
• 6W @25Ω / 4W @50Ω / 2W
• @100Ω Balanced Output 1.5W
• @25Ω/ 1W @50Ω/ 500mW
• @100Ω SE Phones Out
• OPERATING VOLTAGE 100v, 110-120, or 220-240, Configurations Available
• POWER CONSUMPTION 25-30W
• INPUT IMPEDANCE 10 kOhm
• VOLUME CONTROL Alps RK27 Potentiometer or 24-step DACT Attenuator
• DIMENSIONS (INCLUDING CONNECTORS) (H)2″ x (W)11″ x (L)9″
• WEIGHT 11 lbs
