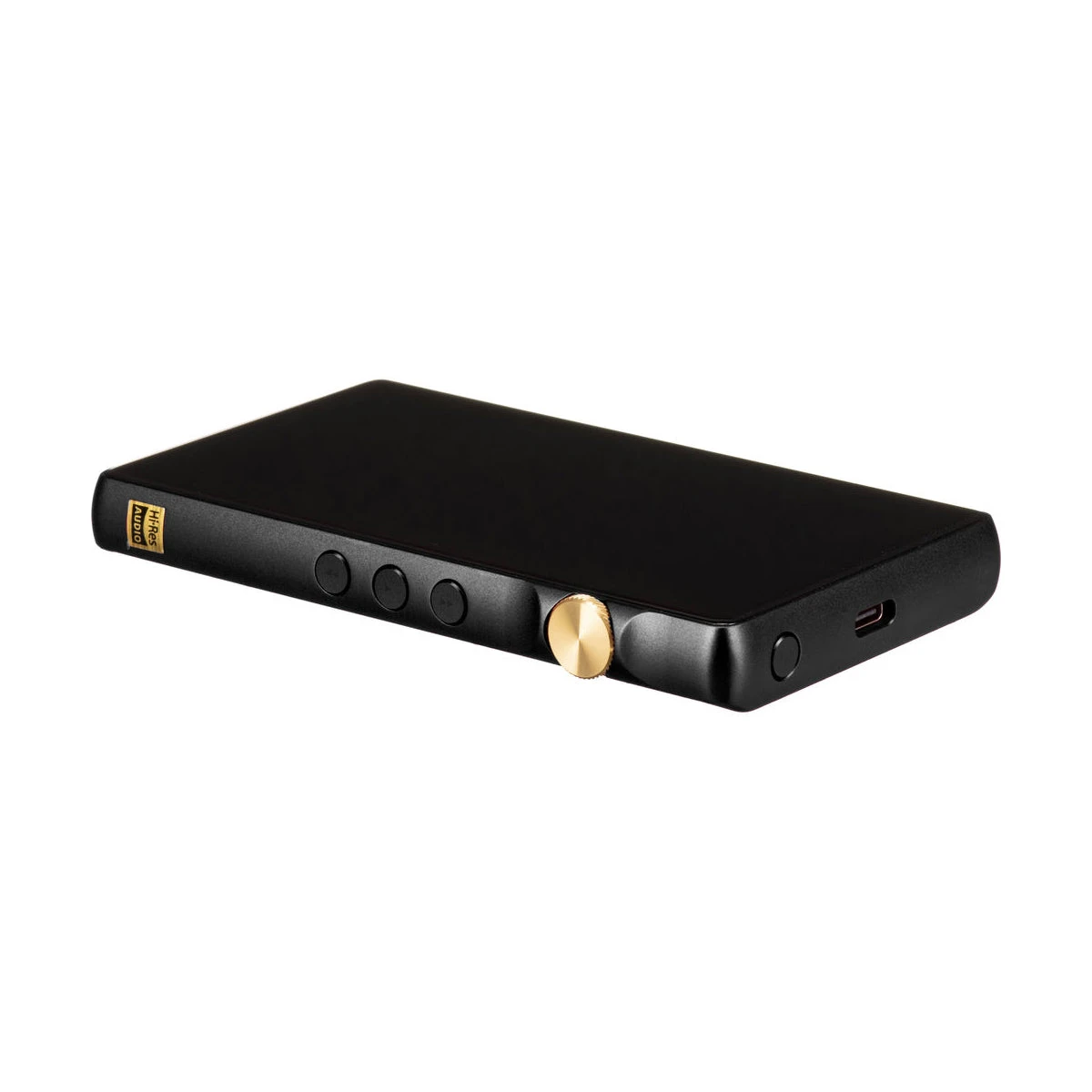

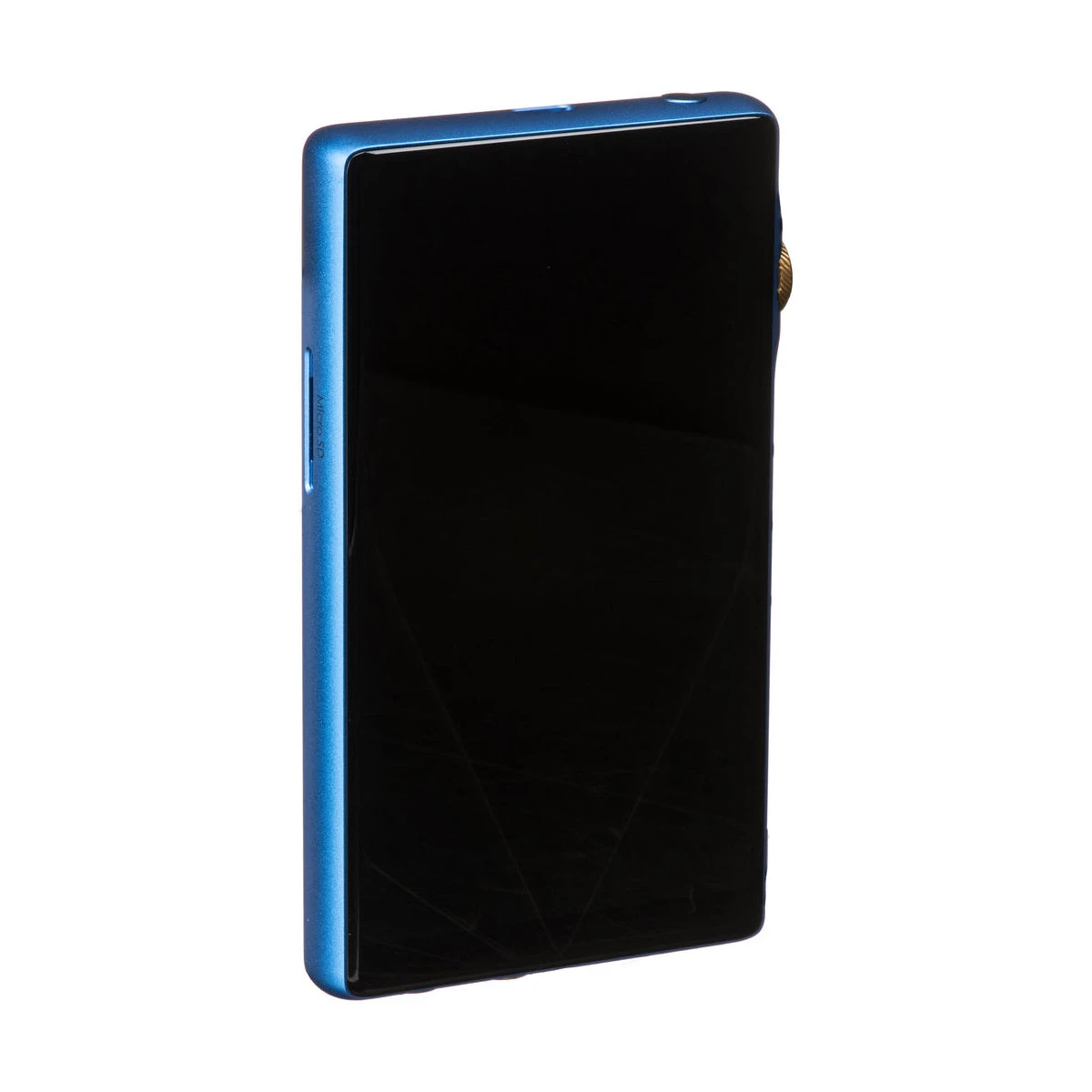

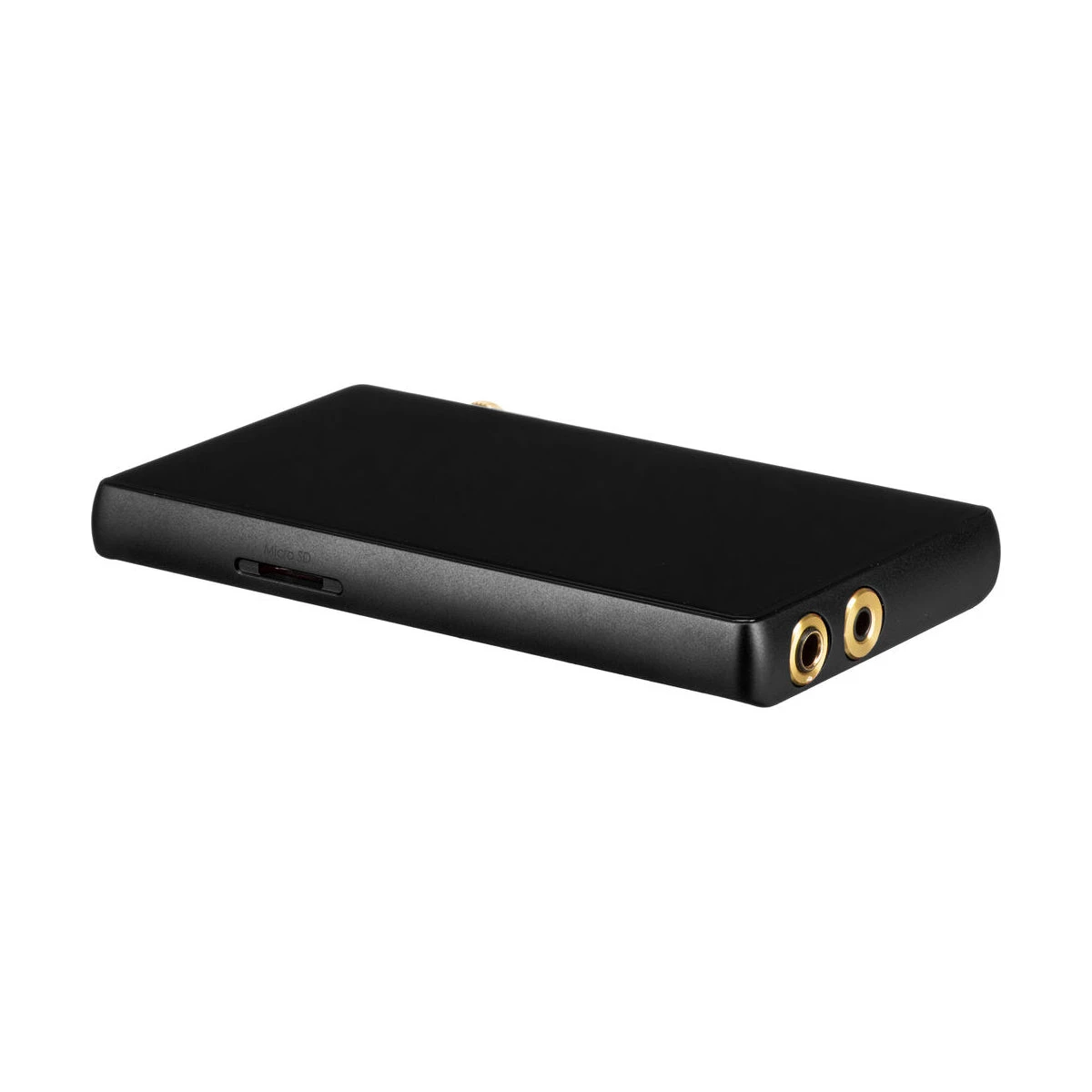

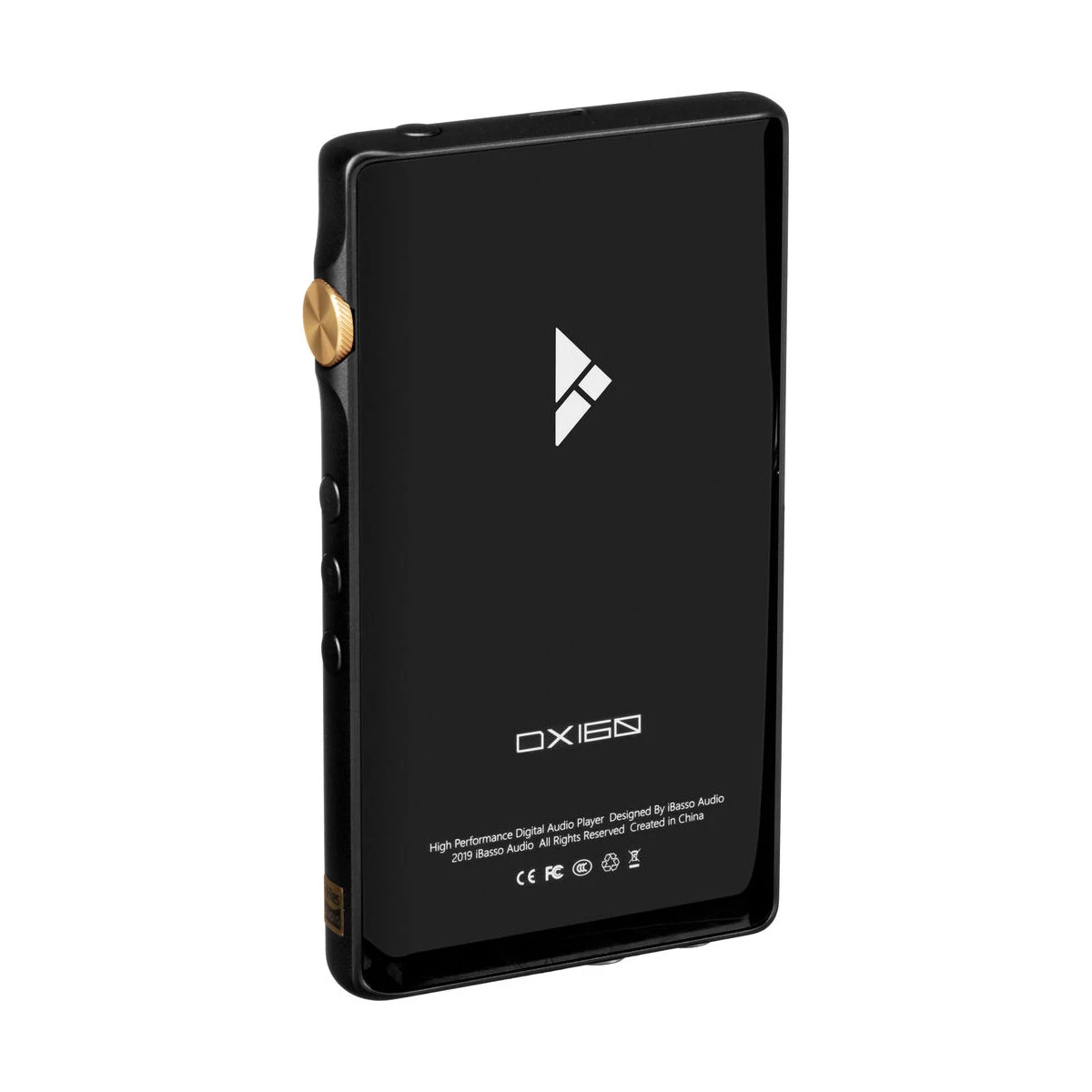

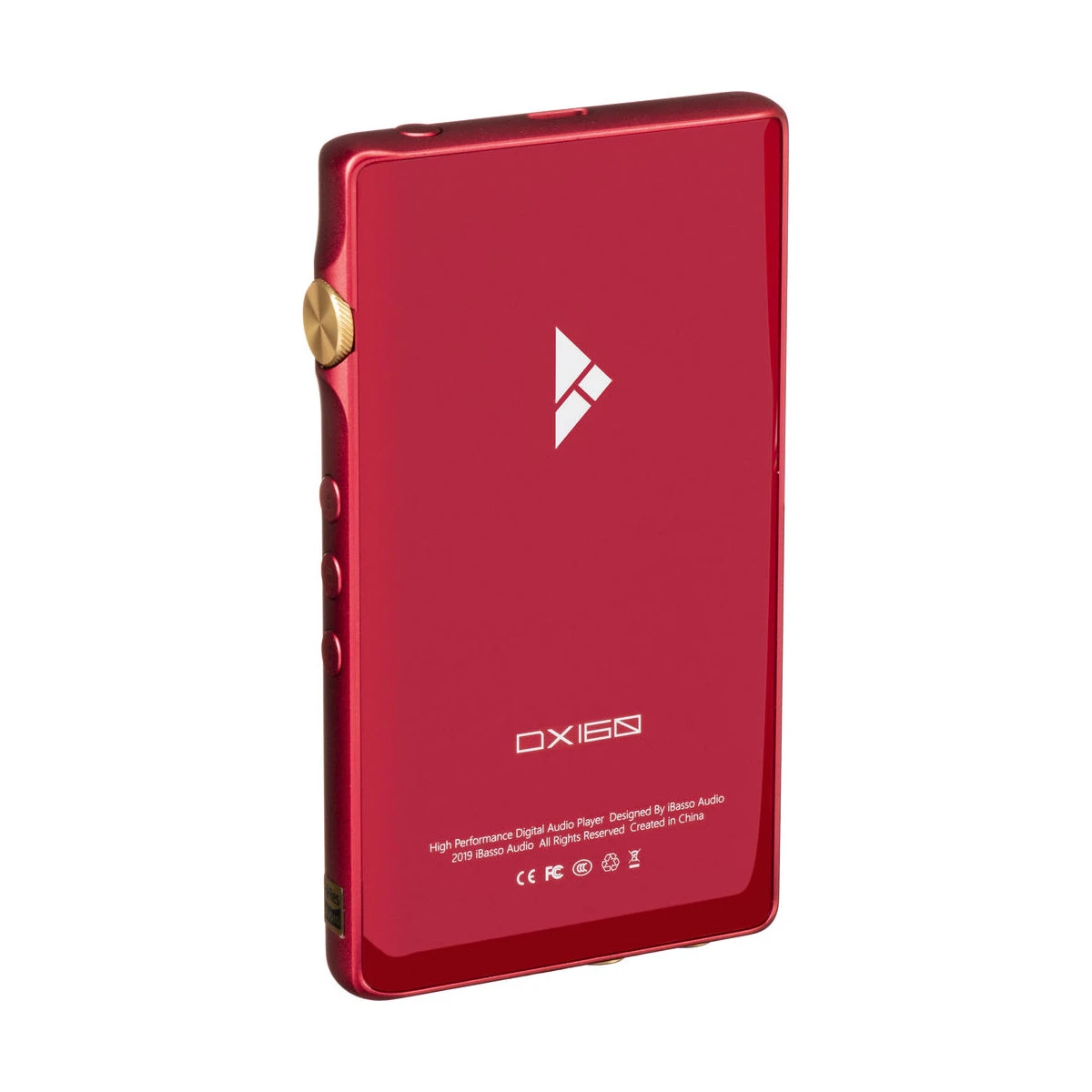

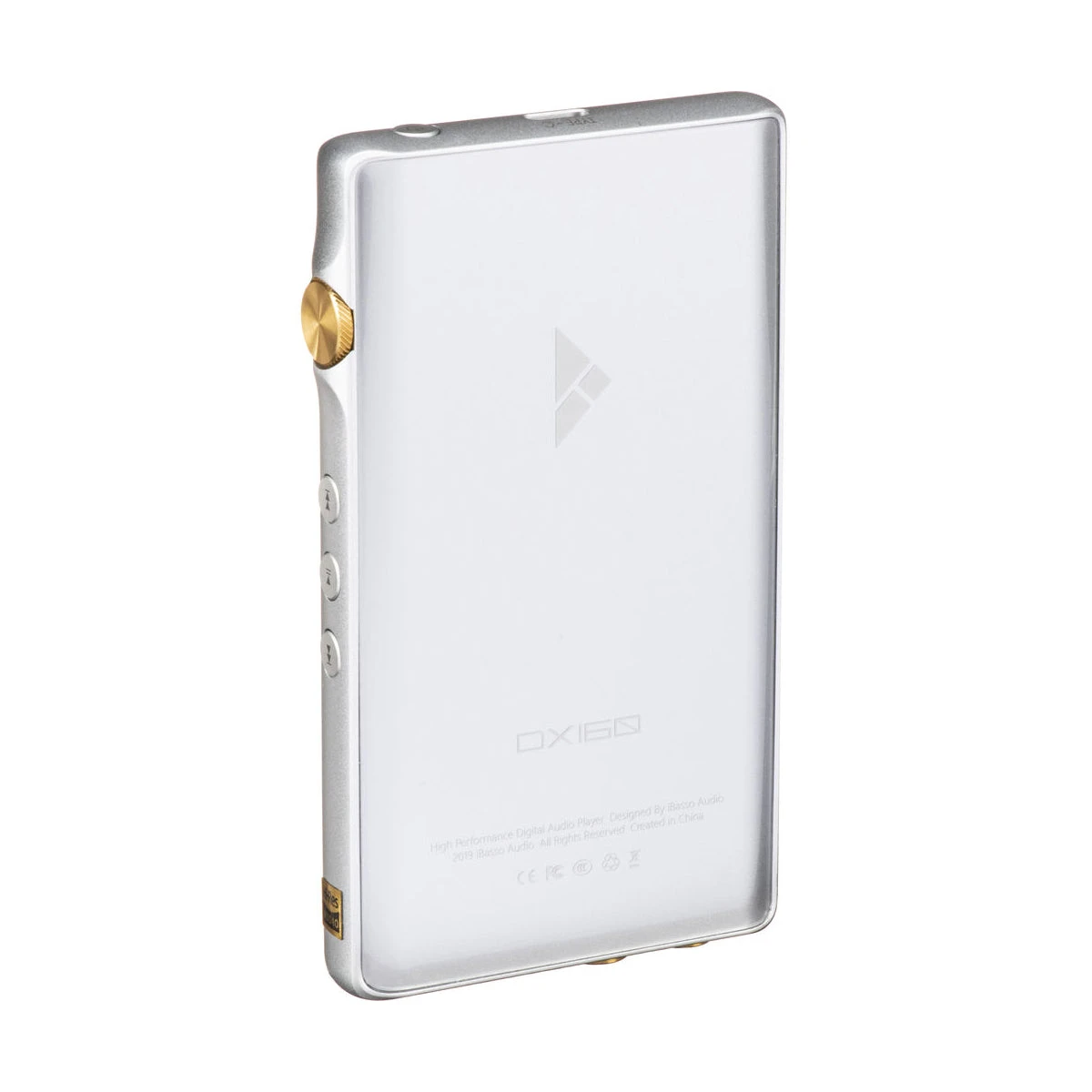

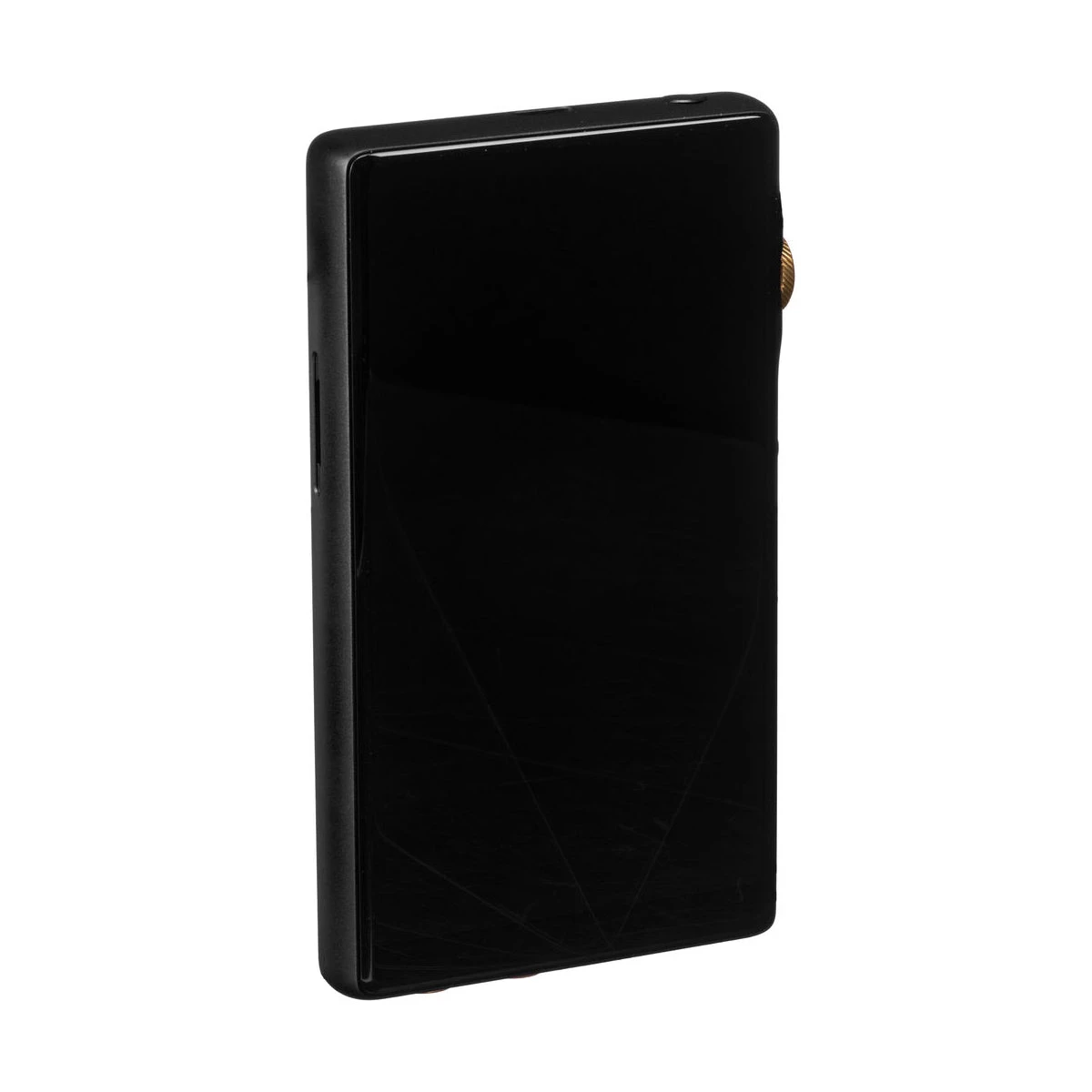

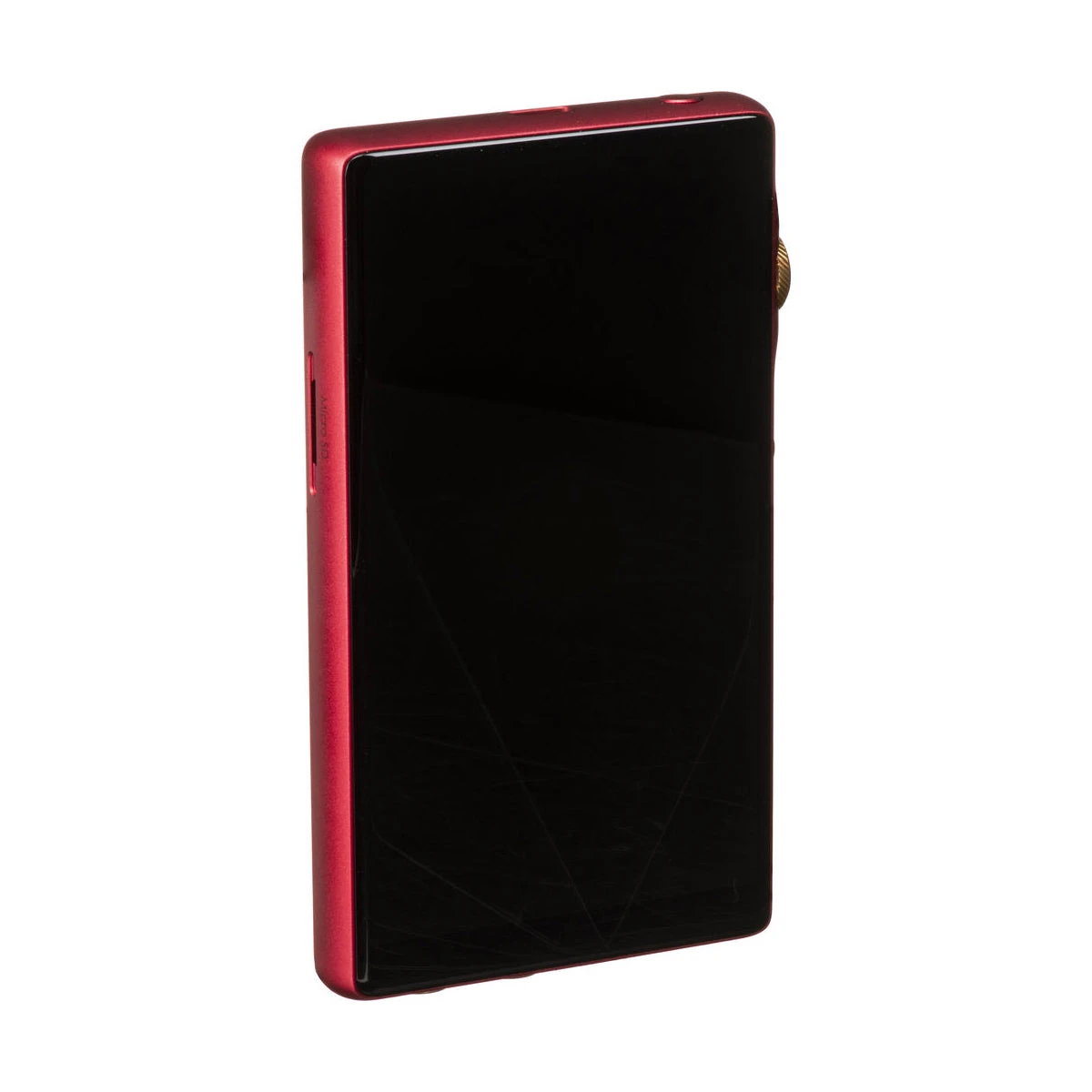

IBasso DX160 [2020 Version] High Performance Digital Audio Player

Specifications

• OS: Android 8.1
• Colors: Black/Silver/Blue/Red
• DAC: Dual CS43198
• Output Ports: 4.4BAL, 3.5PO, 3.5LO, SPDIF, USB output
• Screen: 5.0 inch 1080P Sharp Full Screen
• CPU: Octa Core
• RAM: 2G
• ROM: 32G
• Wi-Fi: 80 2.11 b/g/n/ac (2.4Ghz/5Ghz)
• Bluetooth: Bluetooth 5.0
• Battery: 3200mAh
• Quick Charge: QC3.0, PD2.0
• Audio Formats Supported: MQA, APE, FLAC, WAV, WMA, AAC, ALAC, AIFF, OGG, MP3, DFF, DSF, DXD, CUE, ISO, M3U, M3U8, MQA
• Size: 113mm*69mm*15mm
• Weight: 178g
• Average Play Time: 13 hours (The play time varies with different resolutions and heaphone/IEM loads.)

4.4mm Balanced Output

• Output Voltage: 6.4Vrms
• Frequency Response: 10Hz~40kHz +/-0.15dB
• S/N: 130dB
• THD+N: 0.00022% (no Load, 3Vrms)，0.00022% (32Ω Load, 3Vrms)
• Crosstalk: -125dB

3.5mm Single Ended Output

• Output Voltage: 3.2Vrms
• Frequency Response: 10Hz~40kHz +/-0.15dB
• S/N: 125dB
• THD+N: 0.0004% (no Load, 2Vrms)，0.0007% (32Ω Load, 2Vrms)
• Crosstalk: -115dB

Line Out

• Output Voltage: 3.2Vrms
• Frequency Response: 10Hz~40kHz +/- 0.15dB
• S/N: 125dB
• THD+N: 0.00035% (no Load, 2Vrms)
• Crosstalk: -113dB
