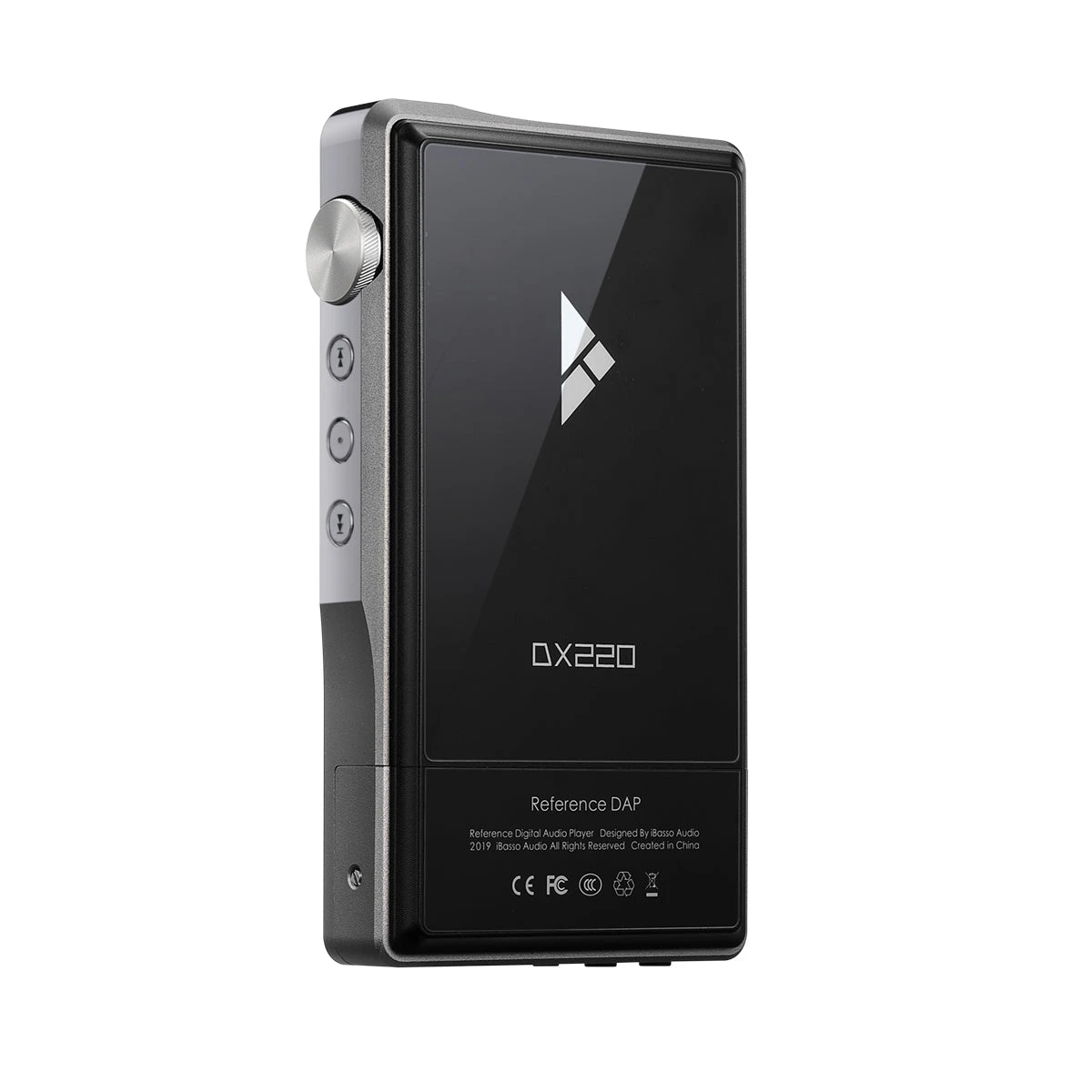

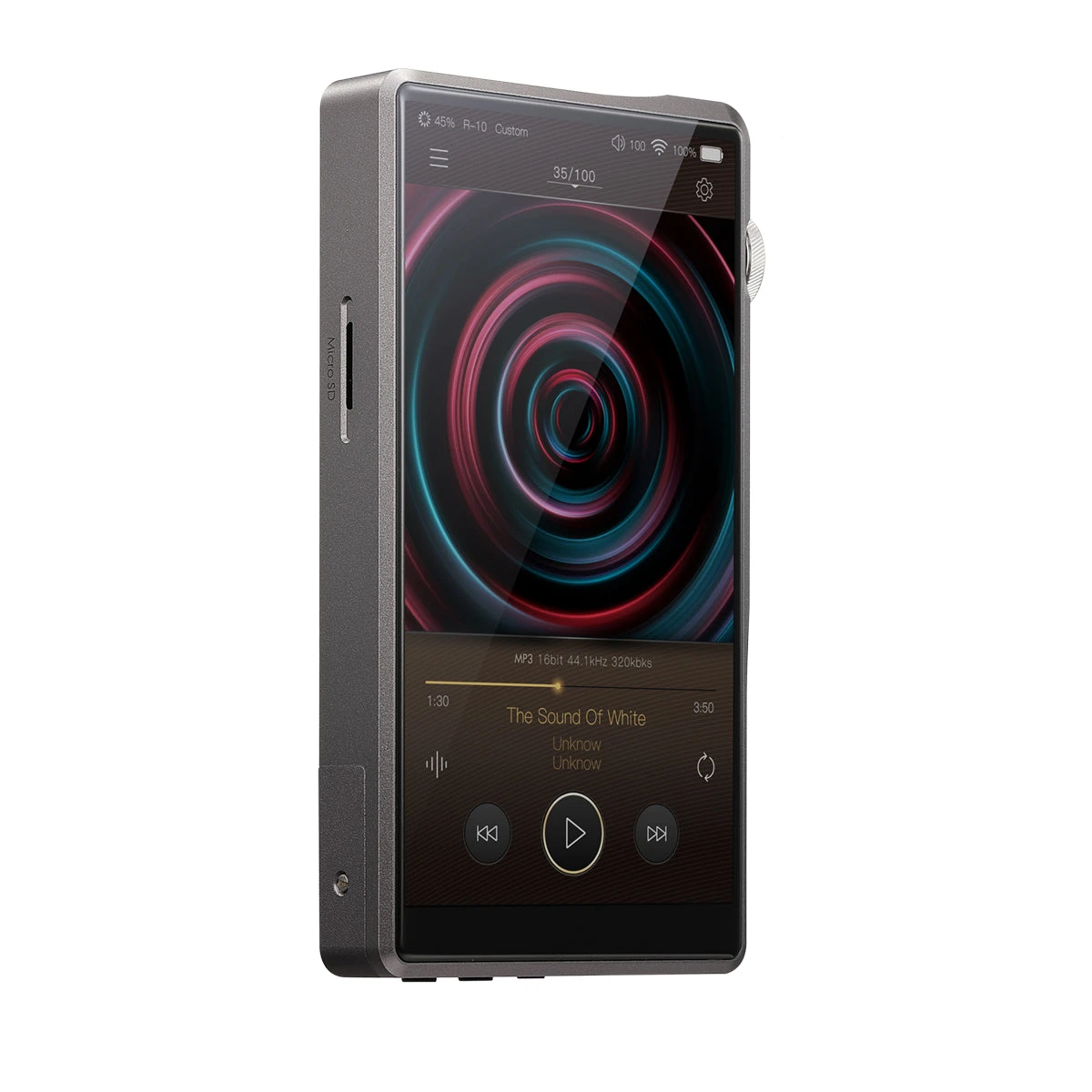

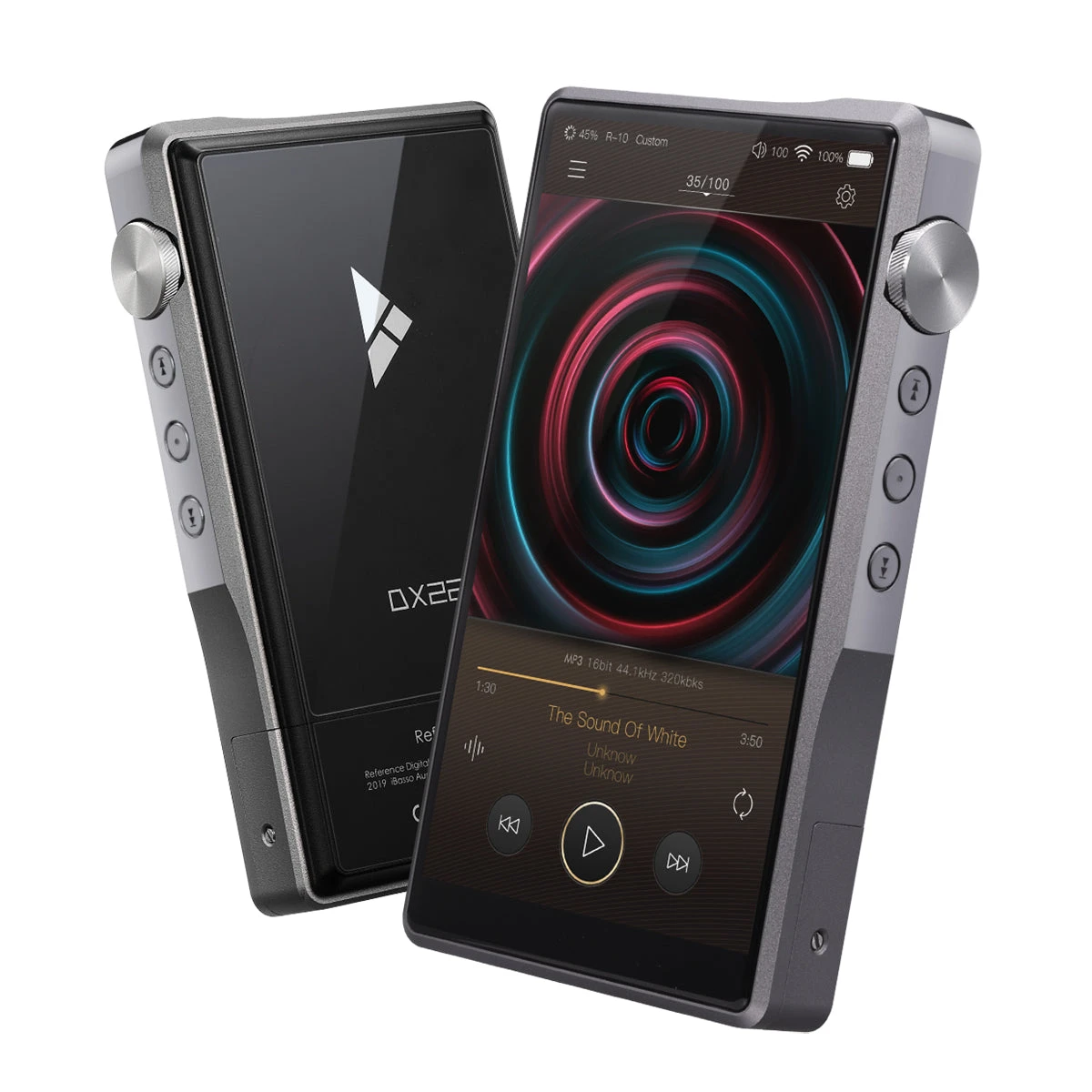

IBasso DX220 Reference Digital Audio Player

iBasso DX220

Sharp 1080P Full Screen

With 16.7 Million Colors

95% sRGB color gamut

87% screen ratio

445ppi Hi resolution display

480cd/m2 screen brightness

On Cell capacitive touch screen

2.5D Corning glass panel

Nano anti-fingerprint coating

Comparable Specs to High Performance Desktop Players

THD+N: 0.000180/0/-114dB

(@1 kHz, 3.0VRms, No load, balanced)

Maximum Output: 6.2VRMS

Frequency response: 15Hz-45kHz

(+1-0.1 dB)

Note: The above measurements are based on DX220+AMP1 MKII, @1kHz, 3.0VRms, No load, balanced output.

True Measurements

There are a lot of players on the market that directly use the chip’s nominal measurements as the finished product measurements. This is then used to make the data look better. iBasso insists on research with music at the heart of development. The DX220 measuredTHD+N is as low as 0.00018%,-114dB, which is very close to the chip’s nominal measurement.

Replaceable Amp Card Design

The DX220 comes standard with the AMPI MKII.

All AMP cards designed for the DX series are backward and forward compatible. There is no planned obsolescence.

A High-End USB-DAC / A Desktop DAC Competitor

The USB DAC supports PCM up to 32Bit/384kHz, native DSD up to 512x. With such a powerful decoding capability, the DX220’s USB DAC stands alone as one of the best portable USB DACs on the market, and able to compete with any desktop DAC.

We have added femtosecond oscillators to the CPU and XMOS. With a total of 5 femtosecond oscillators, the DX220 achieves full femtosecond audio system, providing more professional USB DAC function.

Charge up to 70% in just one hour.

The DX220 supports three Quick Charging protocols, QC3.0, PD2.0 and, MTK PE Plus.

4400mAh battery capacity for approximately 8 to 9 hours of play time.

Designed For Music

A New Ul Interactive Experience

The new Ul interface is more professional and visually pleasing. The operating fluency has been greatly improved. User-friendly settings greatly reduce the time required to understand and use them.

The DX220 is the First DAP Support Two-Way Bluetooth 5.0

The DX220 is the first portable player to support two-way Bluetooth 5.0, which provides native support for I-DAC and aptX. All-metal CNC back cover + antenna isolation cavity assures that the antenna is completely outside the case, eliminating possible interference with sound quality.

Powerful Professional Parametric EQ

In addition to the 10 band graphical E DX220 adds a more professional Parametric EQ (PEQ), providing a total of 8 different filters in 6 segments. Each filter can be customized with central frequency, gain and qua factor. The PEQ has a detailed visual adjustment capability.

Specifications:

Model: DX220 reference digital audio player

OS: Android 8.1 & Mango OS

DAC: Dual ES9028PRO

Output Ports: 25BAL, 35PO, 3.10, 3.5SPDIF, USB output

Screen: 5.0 inch 1080P Sharp full screen

Sample Rate: PCM: 8kHz-384kHz (8/16/24/32bits) native

DSD: DSD64/128/256/512

CPU: Octa-core

RAM: 4G

ROM: 64G

Micro SD: Supports SDHC & SDXC, up to 2TB.

WiFi: 802.11 b/g/n/ac (2.4Ghz/5Ghz)

Quick Charge: QC3.O, PD2.O, and MTK PE Plus quick charge, support 1 2v/s 9V/ I .5A quick charge and compatible with BC I .2 USB charge.

USB DAC Function: XMOS XU208, Thesycon USB driver, femtosecond oscillators.

Audio Formats Supported: MQA, APE, FLAC,WAV, WMA,AAC, ALAC, AIFF, OGG, MP3, DFF, DSF, DXD, CUE, ISO

Size: 1 26mm*7 0.5mm*1 8.7m (4.96inch* 2.78inch* 0.74inch)

Weight: 240g ( 8.470z)

Average Play Time: 8 hours. (The play time varies with different resolutions and headphone/lEM loads.)

Contents: DX220 player, Type-C cable, burn-in cable, coaxial cable, leather case, screen protectors, quick start guide, and warranty card.
