IBasso DX240 High Performance Digital Audio Player

A Worthy Upgrade To The DX220

DX2x0 series has been one of the most successful Digital Audio Player series in the market. They revolutionized the way we listen to our music with great performance, high-quality DAC chips, swappable amp modules, and many more features. The DX240 comes as a successor to the highly acclaimed DX220 music player with a better DAC, better SoC, and an overall better performance both in terms of UI as well as sound.

• Stock amp module: AMP1 MK3
• Output ports: 2.5mm TRRS, 3.5mm Single-ended, 3.5mm Line Out
• Display: 5.0” 1080P Full HD
• Battery capacity: 4400mAh
• Charging time: 2.5H
• Playback time: up to 11 hours

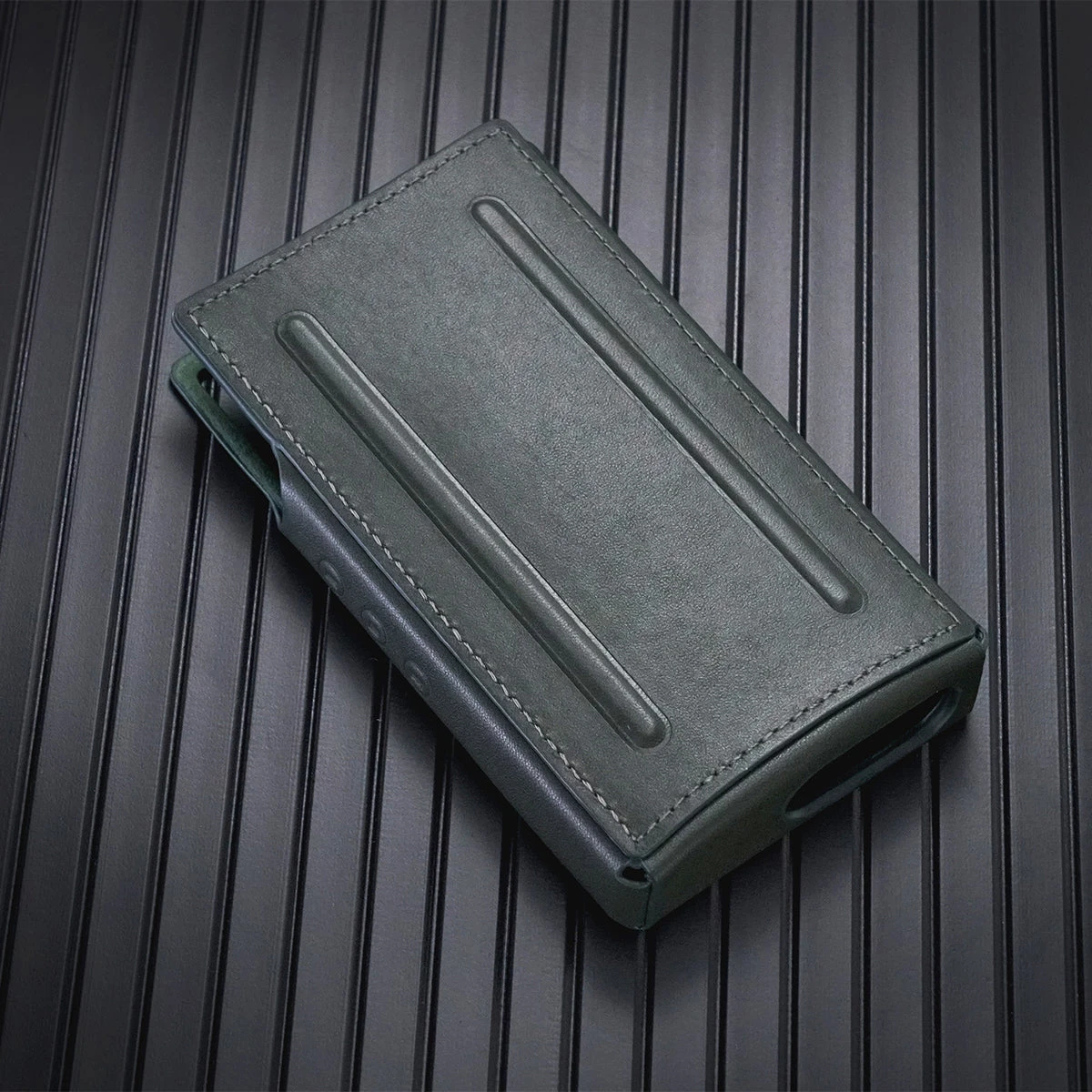

DX240’s first owners receive a FREE matching color leather case, worth $149, available while supplies last!

Your Latest Flagship Digital Audio Player

iBasso DX240 is equipped with the latest ESS flagship ES9038Pro DAC chip. It’s an ultimate decoding chip that provides high-resolution 32-Bit PCM and native DSD decoding support. Users can enjoy their music with great clarity with low distortion and noise-free background on the DX240. ES9038Pro features four cores per channel providing us with ultimate performance.

iBasso’s Self-Developed FPGA Master Technology

iBasso has featured their self-developed FPGA Master technology that requests signals directly from the SoC. It is incorporated by two independent NDK femtosecond crystal oscillators in maintaining a stable signal with low jitter and high definition.

Pocket MQA Decoder

iBasso DX240 supports full 16x MQA decoding ensuring the best quality experience for us. This beautiful device is capable of decoding and rendering MQA files fully and bring a remarkable experience for the users. DX240 is your latest Pocket MQA player.

Modular Design With Swappable Amp Modules

iBasso DX240 is a modular digital audio player with swappable AMP modules. Users can switch the amp module in DX240 at their personal preference. DX240 supports AMP1-AMP8 modules straight out of the box(All of these were previously launched for the DX220 series. Only the AMP9 and above modules that are designed specifically for the DX300 are not supported by the DX240. iBasso packs the AMP1 MK3 module with the DX240. It has 2.5mm Bal, 3.5mm SE PO ports as well as a 3.5mm LO port.

Lag-Free User Interface With Eight-Core Snapdragon SoC

iBasso DX240 is equipped with a Qualcomm Snapdragon 660 CPU and 4GB of RAM. It provides a smooth, lag-free user interface with the latest Android 9 OS. Users can explore any media application on the Android OS and expect smooth performance with the DX240. It also features iBasso’s mango OS for a pure musical experience.

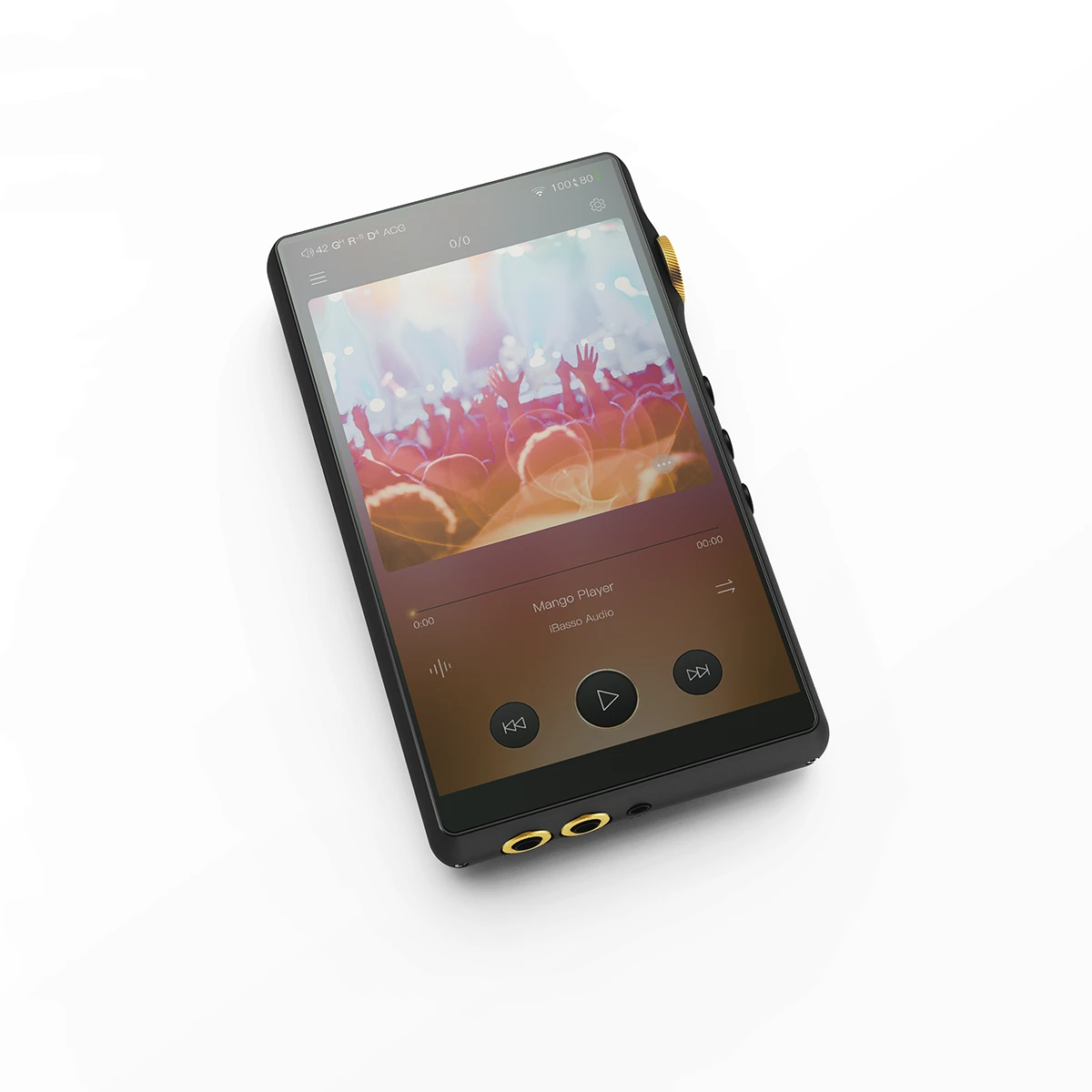

Crisp Full HD Display With Premium Aluminum Alloy Body

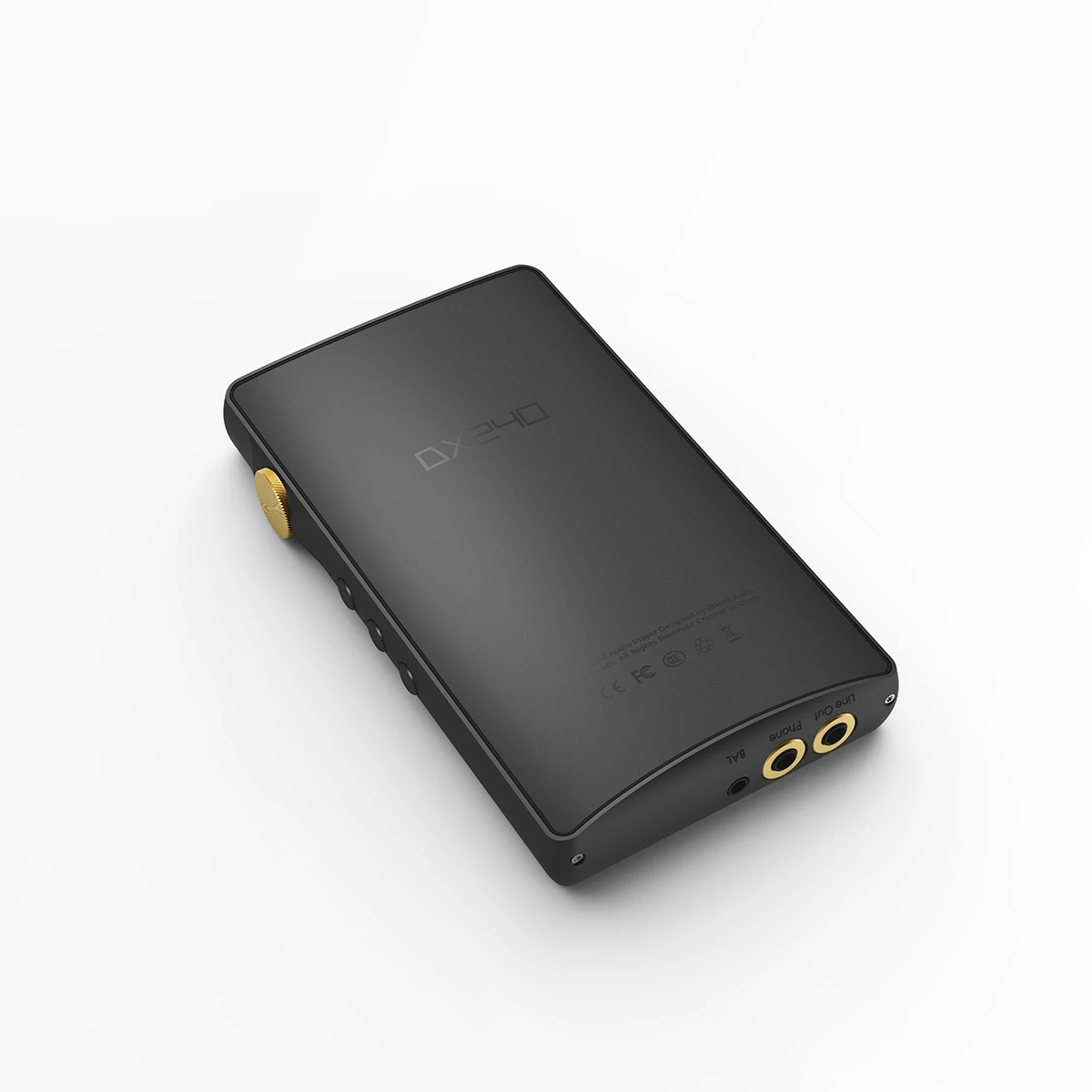

iBasso DX240 has a stunning design and a rich feel to it. The player houses a bright 5″ full HD 1080P display panel with small bezels and a well-finished aluminum alloy chassis. The player has a curved frosted glass back panel for a rich and premium finish with its design.

Specifications

2.5mm Balanced Phone Port：

• Maximum Output Level：6.2Vrms
• Output Power： 878mW@32ohm, 128mW@300ohm
• Frequency Response：10Hz~45kHz +/-0.1dB
• S/N：125dB
• Dynamic Range：125dB
• THD+N：-114dB (3Vrms, no load)
• -114dB (3Vrms, 32ohm load)
• Crosstalk：-119dB
• Output Impedance： 0.57ohm

3.5mm Single Ended Phone Out:

• Maximum Output Level： 3.1Vrms
• Output Power：281mW@32ohm, 32mW@300ohm
• Frequency Response：10Hz~45kHz +/-0.1dB
• S/N：123dB
• Dynamic Range：123dB
• THD+N：-110dB (1.8Vrms, no load)，
• -109dB (1.8Vrms, 32ohm load)
• Crosstalk：-117dB
• Output Impedance： 0.38ohm

3.5mm Single Ended Line Out：

• Maximum Output Level：3Vrms
• Frequency Response：10Hz~45kHz +/-0.1dB
• S/N：122dB
• Dynamic Range：-122dB
• THD+N：-110dB (1.8Vrms, no load)，
• Crosstalk：-116dB
• Average Play Time: 11hours

(The play time varies with different resolutions, volume used and headphone/IEM loads.)
