A match made in Meze

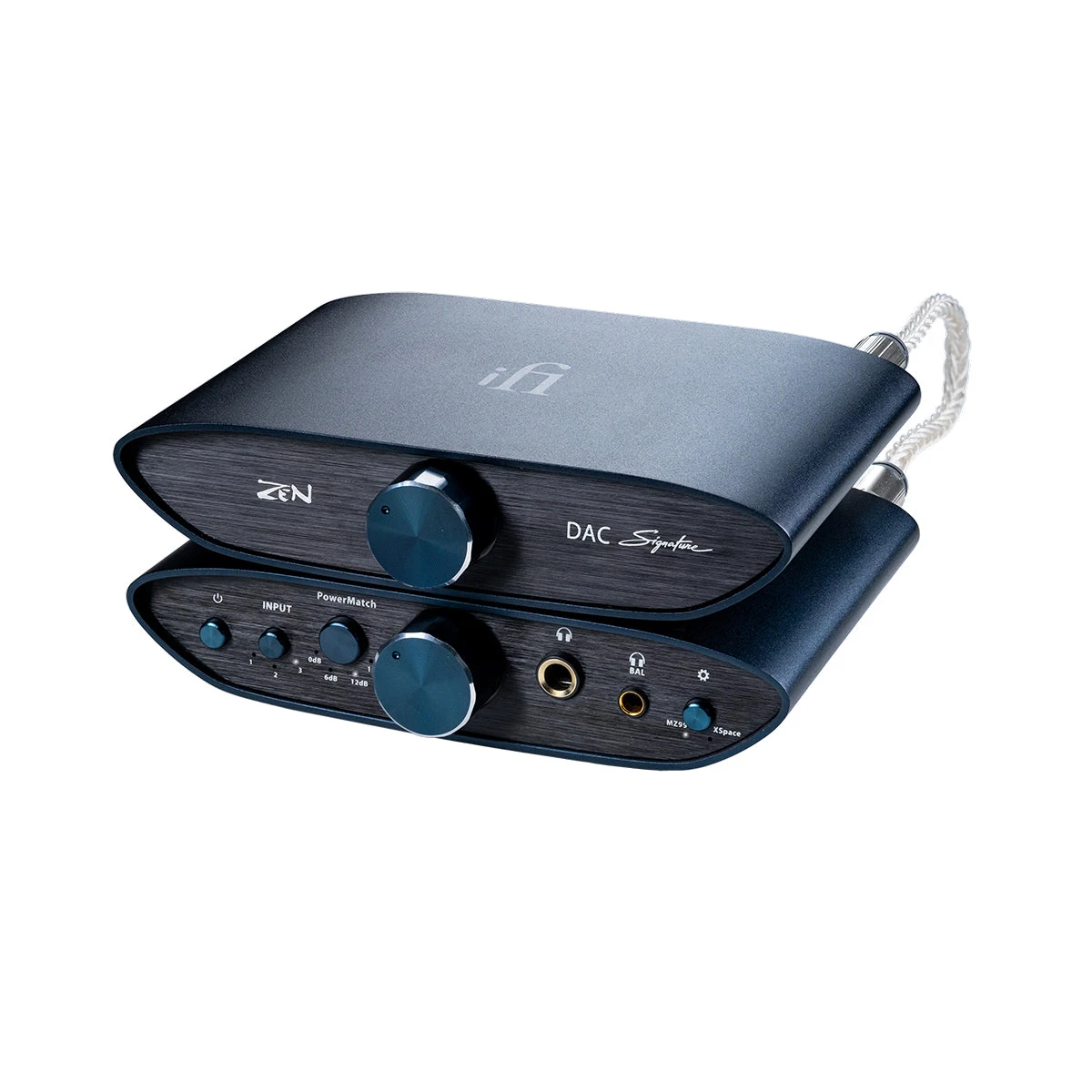

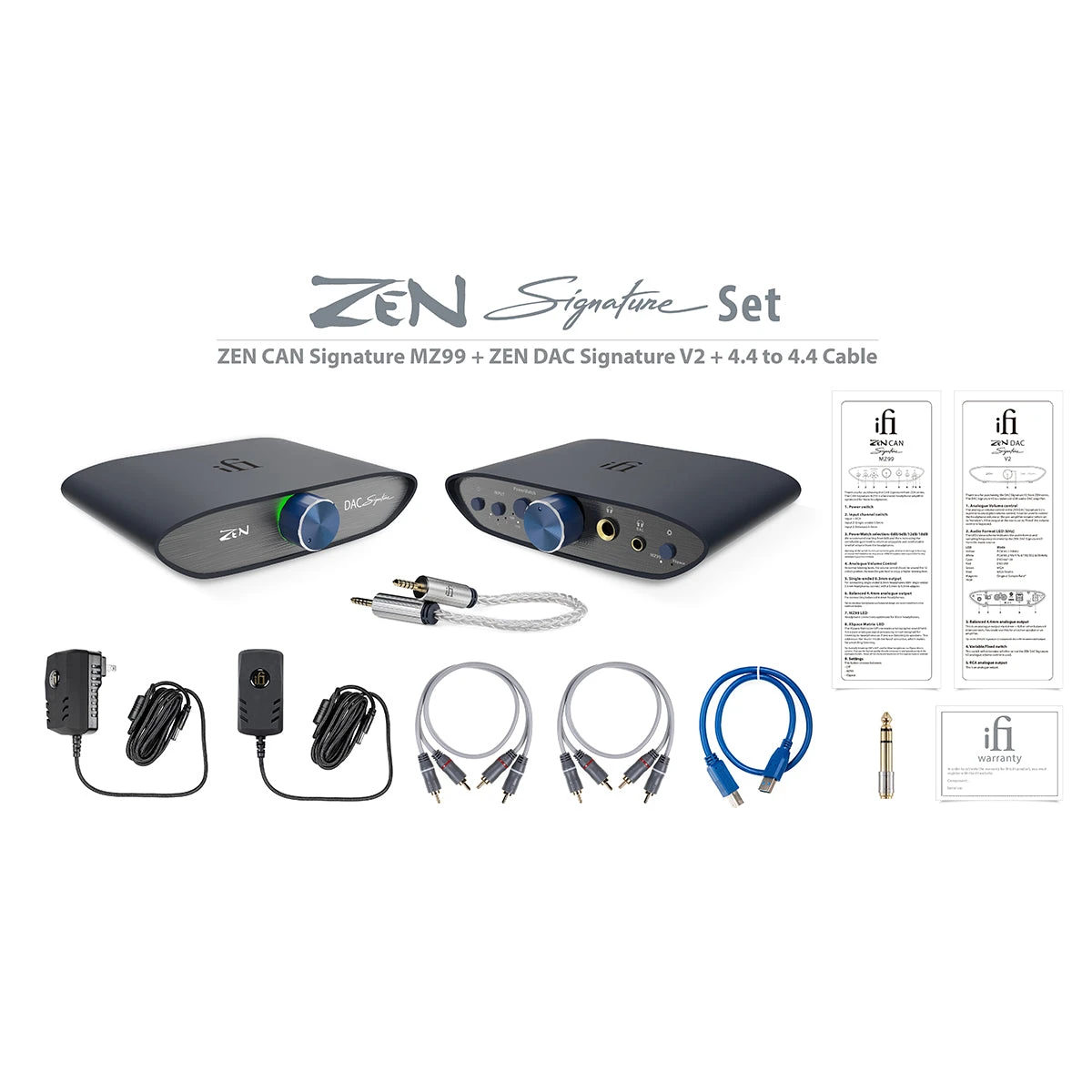

The ZEN Signature Set MZ99 is made up of the ZEN DAC Signature V2 and the new ZEN CAN Signature MZ99.
The ZEN CAN Signature MZ99 has an unique EQ curve that makes the most of the already magnificent Meze 99s.
This set includes a high-performance 4.4mm Pentaconn cable to connect them together.
ZEN DAC Signature V2
This ZEN DAC Signature V2 is the upgraded version of our original ZEN DAC Signature – a pure DAC that benefits from true-differential balanced circuit design. It has upgraded circuit components and short, direct signal paths for optimal signal purity.
It delivers bit-perfect PCM (up to 32-bit/384kHz), native DSD (up to DSD256) and DXD.
The use of the 16-core XMOS chip, rather than the original 8-core, means it is now a full MQA decoder rather than a renderer.
It offers a pair of RCA sockets for single-ended connection to an amp, plus a Pentaconn 4.4mm output.
The full benefit of the ZEN DAC Signature V2’s balanced circuit design comes to the fore when it is connected to an amp or active speakers equipped with a balanced input. This can either be a 4.4mm Pentaconn input or stereo XLR inputs via a 4.4mm-to-XLR cable.
It can switch between ‘variable’ and ‘fixed’ outputs.
ZEN CAN Signature MZ99
The ZEN CAN Signature MZ99 has a carefully calibrated EQ curve to compliment the Meze 99 Classics. It adjusts the treble for more ‘vivaciousness’ and enhances the mid-low bass to extract the last drop of sonic goodness from these already musical headphones.
Its custom ActivEQ setting combines active and passive components to create this special EQ curve. Take a look at the Meze Curve & Compatibility chart here.
The ZEN CAN Signature MZ99 also works with the Meze 99 Neo and the Meze 99 by Drop. ActivEQ can be switched off to make the most of ALL headphones and in-ear monitors.
The ZEN CAN Signature MZ99 also uses XSpace. This is an analogue processing mode which compensates for the ‘in-head localisation’ effect that can occur when listening to tracks mixed using a pair of speakers on headphones.
It features PowerMatch – four gain in six dB steps – 0dB, 6dB, 12dB and 18db.
The ZEN CAN Signature MZ99 boasts symmetrical, dual-mono balanced circuitry. It delivers 1600mW (7.2V) into 32 ohms from the single-ended output, with 15V+ available to loads of 600 ohms or more through the balanced output.
It houses stereo RCA and 3.5mm single-ended inputs, plus a balanced 4.4mm Balanced input. It has a 6.3mm output for headphones that have a standard single-ended connector and a 4.4mm Balanced balanced output for headphones offering a balanced connection.
4.4mm to 4.4mm cable
The iFi 4.4mm to 4.4mm cable employs heavy OFHC continuous cast copper and silver matrix conductors with a total thickness of 14AWG for the best signal transfer.
It’s a perfect addition to our ZEN Signature Set HFM as this audiophile-grade cable will give you maximum quality balanced signal transfer and minimum interference.
The cable construction is a custom helix design, minimised both in capacitance and inductance. It has intrinsic shielding provided by minZâ„¢ helix construction. This protects the cable from RFI and EMI noise and provides the cleanest transfer medium possible.
To insulate the cable even further, we used an RoHS compliant super-soft (60P) HD polymer with 1500V AC spark resistance and excellent dielectric properties.
