IKKO ITM05 Music Patch DAC

IKKO ITM05 Music Patch combines Double CS43198 DAC chips with the most portable but delicate size, producing an accurate immersive Hi-Fi sound with a distortion rating of only 0.0008%. Experience music like you’re there. Bring sound to the next level.

Until now, when high-quality sound was required for terminals such as smartphones and tablets, it was necessary to connect a large external portable DAC amplifier to the terminal, and there were few cost-effective options. The ITM05 was developed as a compact, high-quality portable DAC amplifier to solve these size and cost issues. By attaching ITM05 to your mobile device, you can easily evolve it into a portable player of middle class or higher.

Full-scale orientation with MasterHIFI’s high-performance DAC in Dual

The low-power audio DAC “CS43198” is installed in a Dual DAC configuration, bearing the MasterHIFI, which is the proof of Cirrus Logic’s highest standard, which is also installed in middle-end to high-end portable players. It supports up to PCM 32 / 384kHz and DSD256, and also supports high resolution specifications. In addition, by adopting a low-power DAC, it is possible to reduce the battery consumption of the connected terminal and build a comfortable portable environment.

It also supports balanced output and has excellent audio performance.

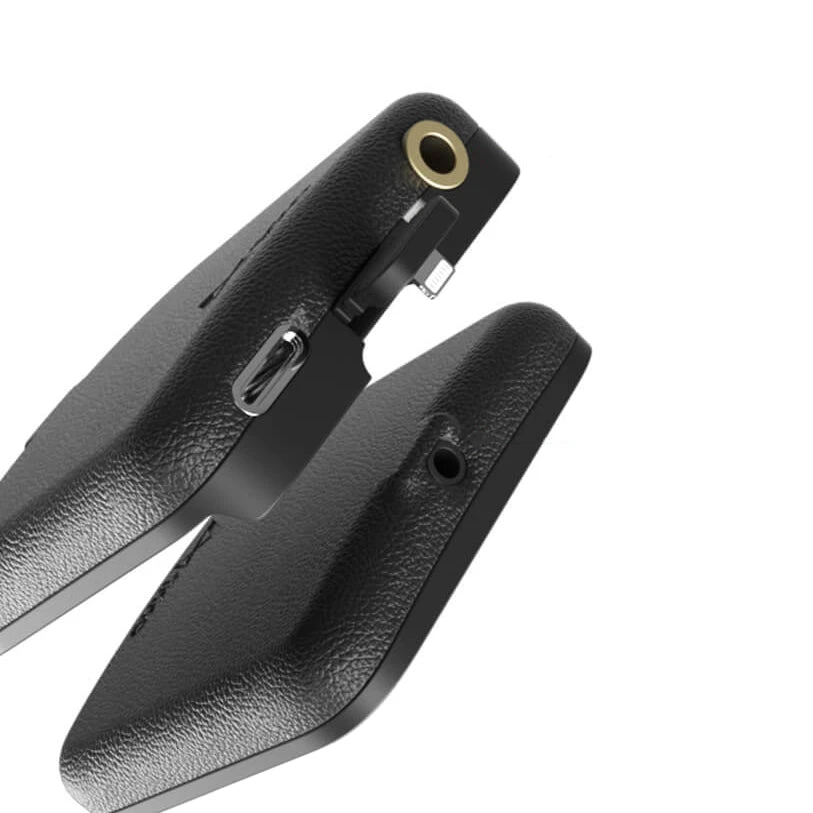

The OUTPUT is equipped with two 3.5 mm single-ended (2.1 Vrms) and 2.5 mm balanced (2.0 Vrms), and is designed to bring out the full performance of the Dual DAC. In addition, the THD + N (distortion rate) is 0.0008% and the SN ratio is 122db, which are extremely excellent values, achieving performance comparable to that of high-end portable audio players.

It also supports balanced output and has excellent audio performance.

The OUTPUT is equipped with two 3.5 mm single-ended (2.1 Vrms) and 2.5 mm balanced (2.0 Vrms), and is designed to bring out the full performance of the Dual DAC. In addition, the THD + N (distortion rate) is 0.0008% and the SN ratio is 122db, which are extremely excellent values, achieving performance comparable to that of high-end portable audio players.

Small and lightweight body that you want to take out

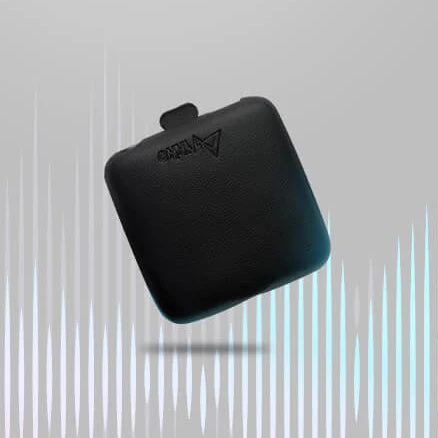

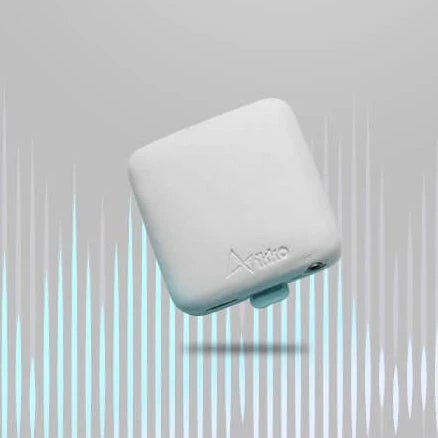

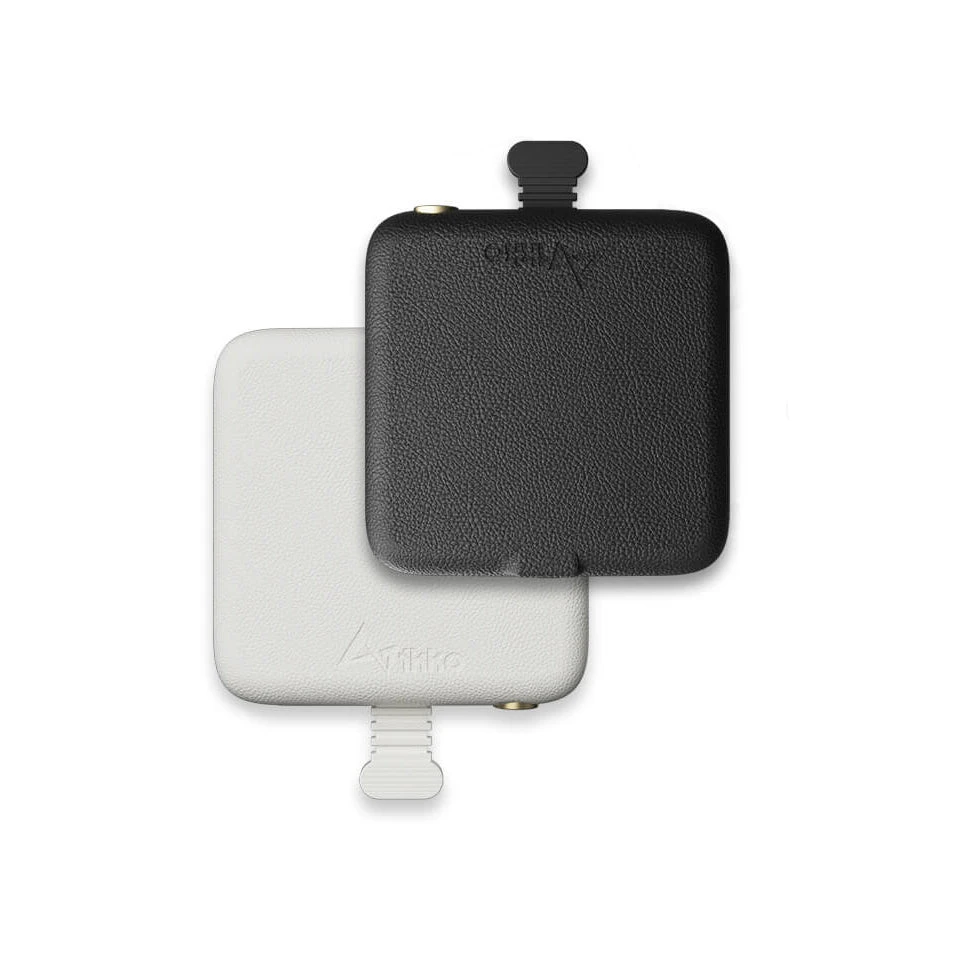

The weight of the main body is only 30g, which is a very lightweight design. Therefore, even when attached to the terminal, it is stress-free, comfortable and does not make you feel the load. In addition, the exterior part that is touched by the hand is treated with urethane mat and soft leather to realize a comfortable hold feeling.

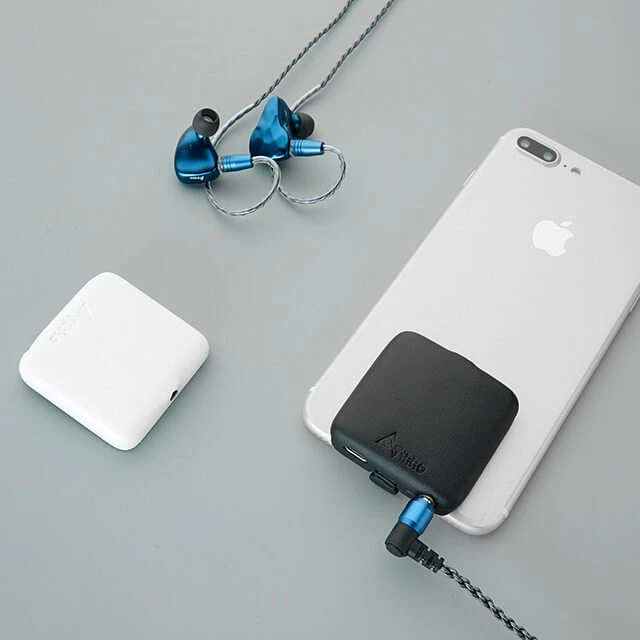

The terminal can be charged with it attached

The ITM05 is also equipped with a charging port, so you can charge your smartphone or tablet without removing it. It can also be used while charging, such as watching videos and playing games.

Engineered in every detail, they feature:

• Mini size at 5cm x 5cm x 1.2cm
• Real Hi-Fi Sound with Double CS43198 DAC Chips
• THD: 0.0008% / SNR: 122dB
• 2.5mm Balanced Output; Output Level: 2.0V (180mW @ 32 ohms)
• 3.5mm Audio Output; Output Level: 2.1V (177mW @ 32 ohms)
• Battery-free & Ultra-low Power Consumption Design
• Quite a Simple Plug and Play
• Supports All Android, iOS and PC devices (even if the device with the case)
• Supports For Using While Charging
• Full system compatibility:
• (Type-C) compatible with Android/Windows/MacOSX System Smartphone Laptop
• (Lightning) Compatible with iphone/ipad/ipod

Music Patch ITM05
DAC chip	Cirrus Logic CS43 198 x 2
THD + N	<0.0008%
PCM	32Bit / 384kHz
DSD	Supports up to 256 DSD native playback (DoP) [* 1]
Recommended impedance	16-600Ω (headphone output)
Input terminal	USB TYPE-C / Lightning (Apple MFI certified)
Output terminal	2.5mm 4-pole balanced jack / 3.5mm stereo mini jack [* 2]
System requirements	Android5.1 or later, IOS8.4 or later, Windows PC

[* 1 This unit does not have a volume adjustment function. Please note that during DSD native playback (DoP), the sound may be played at maximum volume.][* 2 Please note that you cannot operate the microphone / volume with earphones / headphones that have a microphone / volume operation function.]
