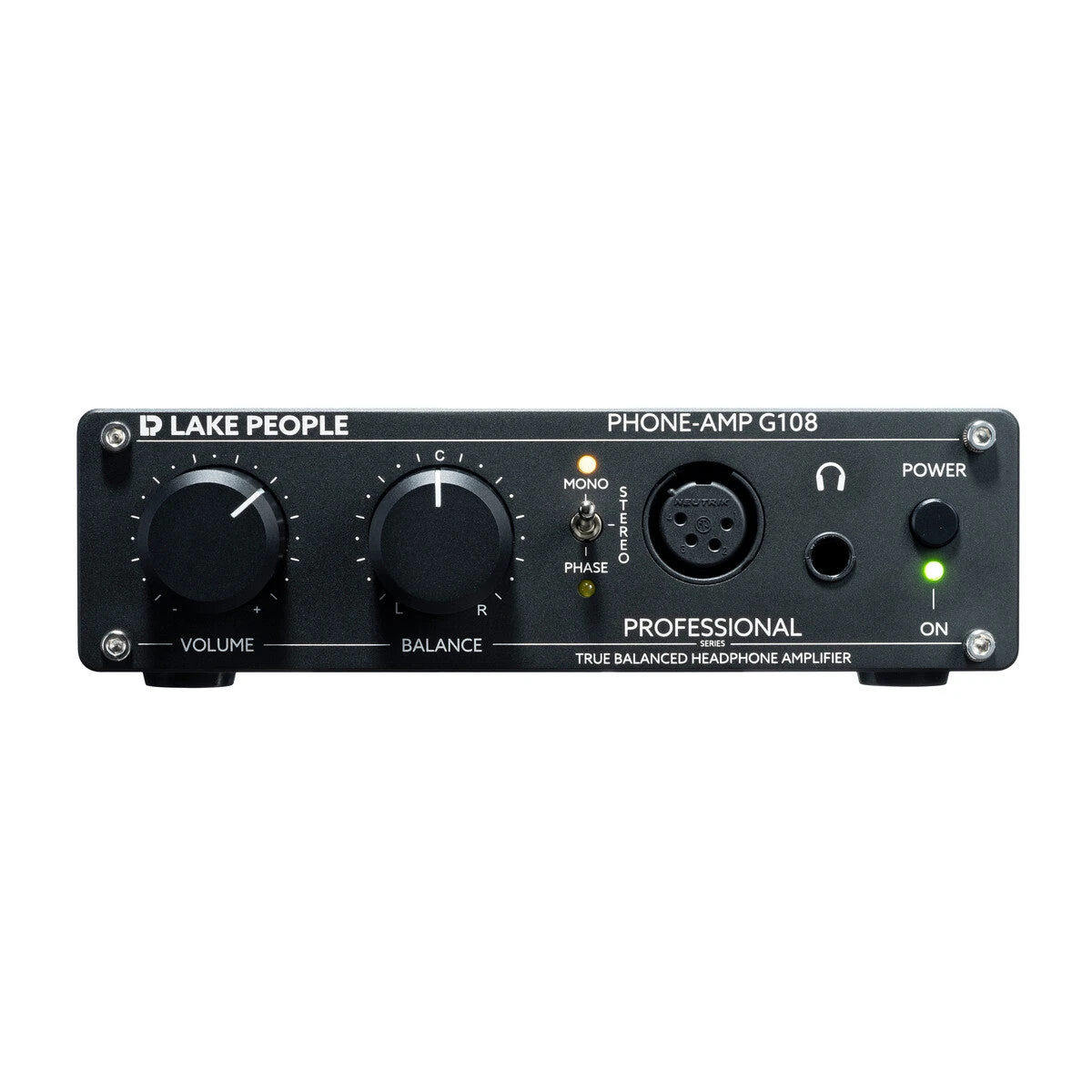

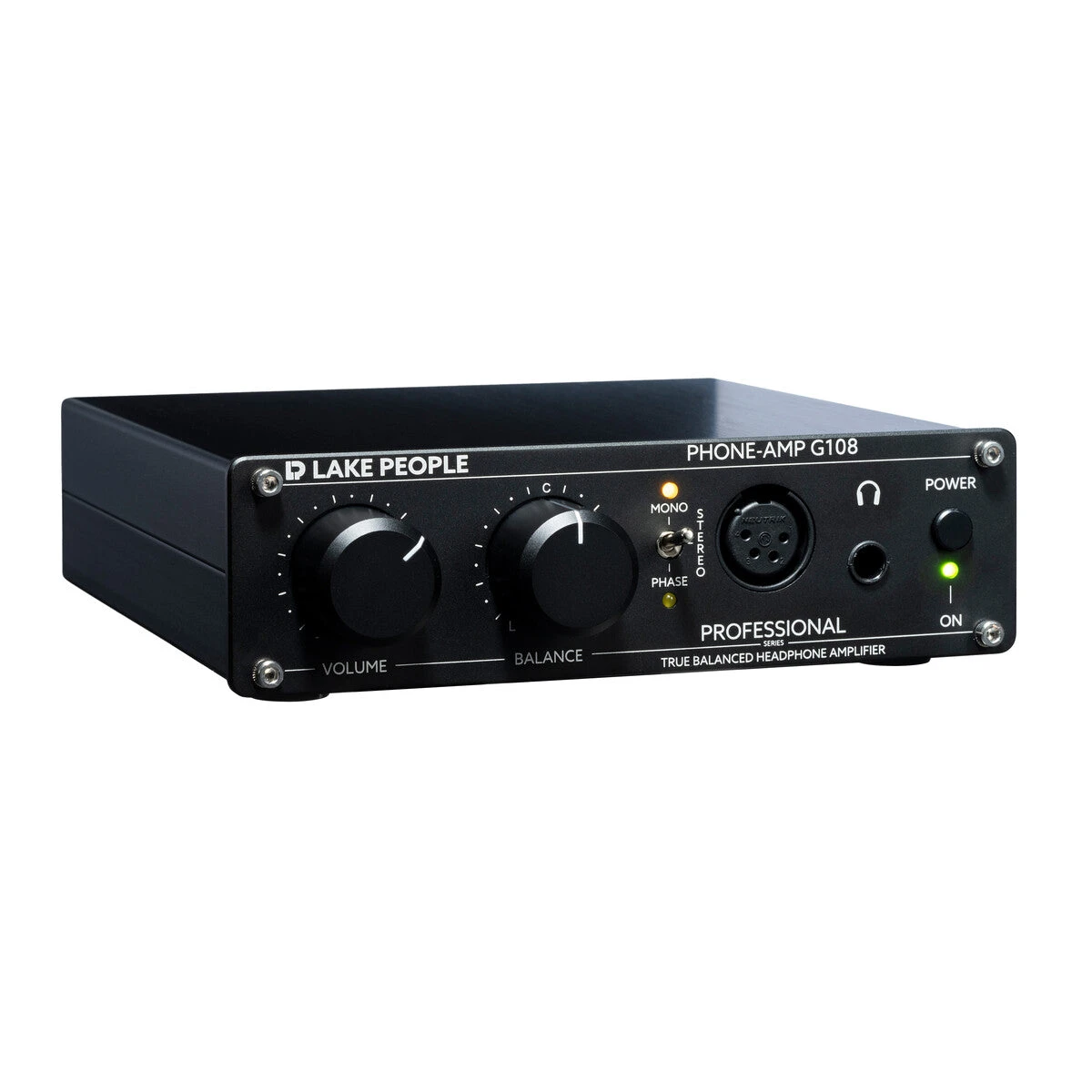

Lake People G108 Headphone Amplifier

• Mains input via CEE connector – no wallplug adapter
• 10 VA toroidal transformer
• Selectable RCA and XLR inputs
• Internal “PRE-GAIN“ (Range: -18 … +18 dB)
• 1“ solid aluminum volume control and balance control
• “Mono“ Mode and “(Left Channel) Phase“ switchable
• True balanced amplifier with 4 power stages
• Amps made with Texas Instruments “OPA 551“
• > 20 VRMS into 600 Ohm (for high impedance headphones)
• > 2700 mW into 100 Ohm (for low impedance headphones)
• 1 headphone output via ¼“ jacks
• 1 headphone output via 4-pin XLR
• Overall dimensions: 6.6 x 1.85 x 7.25in (WxHxD)
• Front panel: 6.6 x 1.85in(WxH)

Same as G105 – but for those who value the advantages of Balanced Headphones

SCOPE OF DELIVERY

• 1x Lake People G108
• 1x Power Chord
• 1x Manual

TECHNICAL DATA

Item number:	1008324
dimensions	168 x 49 x 145 mm (BxHxT)
input sensitivity	+ 6 dBu
input impedance	10 kOhms
housing	Desktop
headphone Out	1 (1/4″ jack, unbalanced), 1 (4-pin XLR, balanced)
Line I/O	2 / 0 (XLR)
max. output level	520 mW (600 Ohm) / 1050 mW (200 Ohm) / 1100 mW (100 Ohm) / 1200 mW (50 Ohm) / 500 mW (16 Ohm)
signal-to-noise ratio (SNR)	> 122 dBA
power supply	Internal 230 V / 115 V AC
THD+N (@ -1 dBFs)	< 0,001 %
frequency range	2 Hz – 150 kHz (-3 dB)
crosstalk	< 70 dB
