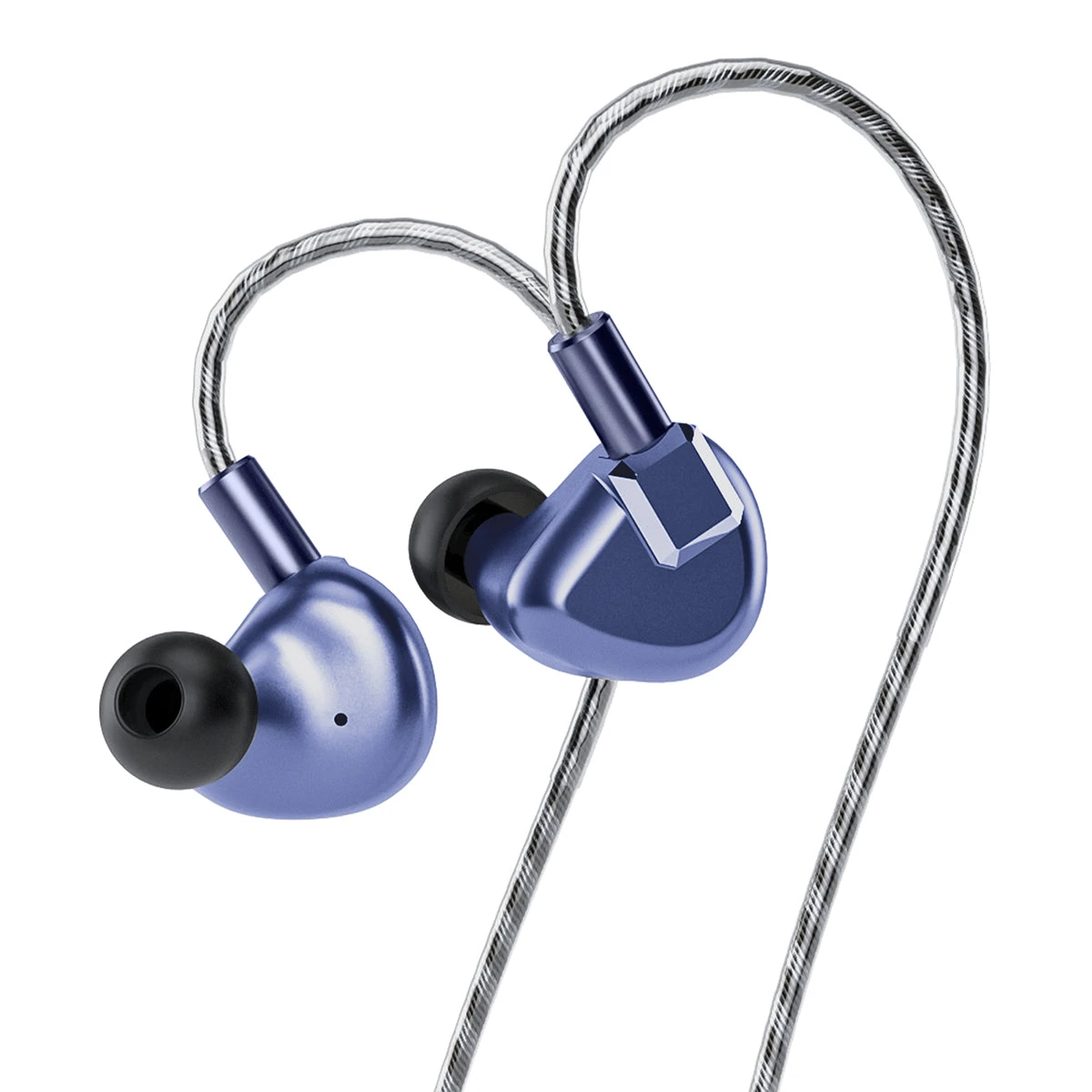

LETSHUOER S12 PRO Planar Universal In-Ear Monitor

LETSHUOER S12 PRO- Magnetic planar earphones Hi-Fi planar in ear monitors for audiophiles and music lovers

LETSHUOER S12 PRO utilizes a custom 14.8mm large-diaphragm driver with great details retrieval, punchy bass and clear trebles. 102db high sensitivity means that it can be easily driven to volume, be it a cell phone or dongle DACs, LETSHUOER S12 PRO will sound optimal pairing with most source/amps. LETSHUOER S12 PRO comes with a stock cable that is constructed with silver-plated monocrystalline copper, and four 98-strand cores are then weaved together. It is terminated in standard 0.78mm dual pin connectors, and the other end is a swappable jack with 2.5mm / 3.5mm /4.4mm jacks. This system will work with a great amount of source gears and IEMs. Magnetic planar earphones Hi-Fi planar in ear monitors for audiophiles and music lovers.

• LETSHUOER 6th anniversary edition
• Custom 14.8mm Planar Driver
• 392-strands silver-plated monocrystalline copper cable
• CNC aluminum chassis
• New color scheme
• Standard 0.78mm dual pin connector and receptacle
• 2.5/3.5/4.4mm Swappable jacks on stock Silver plated monocrystalline copper cable
• Earphone carrying case

Frequency

14.8mm planar driver, with a large diaphragm driver, which brings bigger volume and soundstage, and extracts every nuance from the music.

Swappable jacks on stockcable

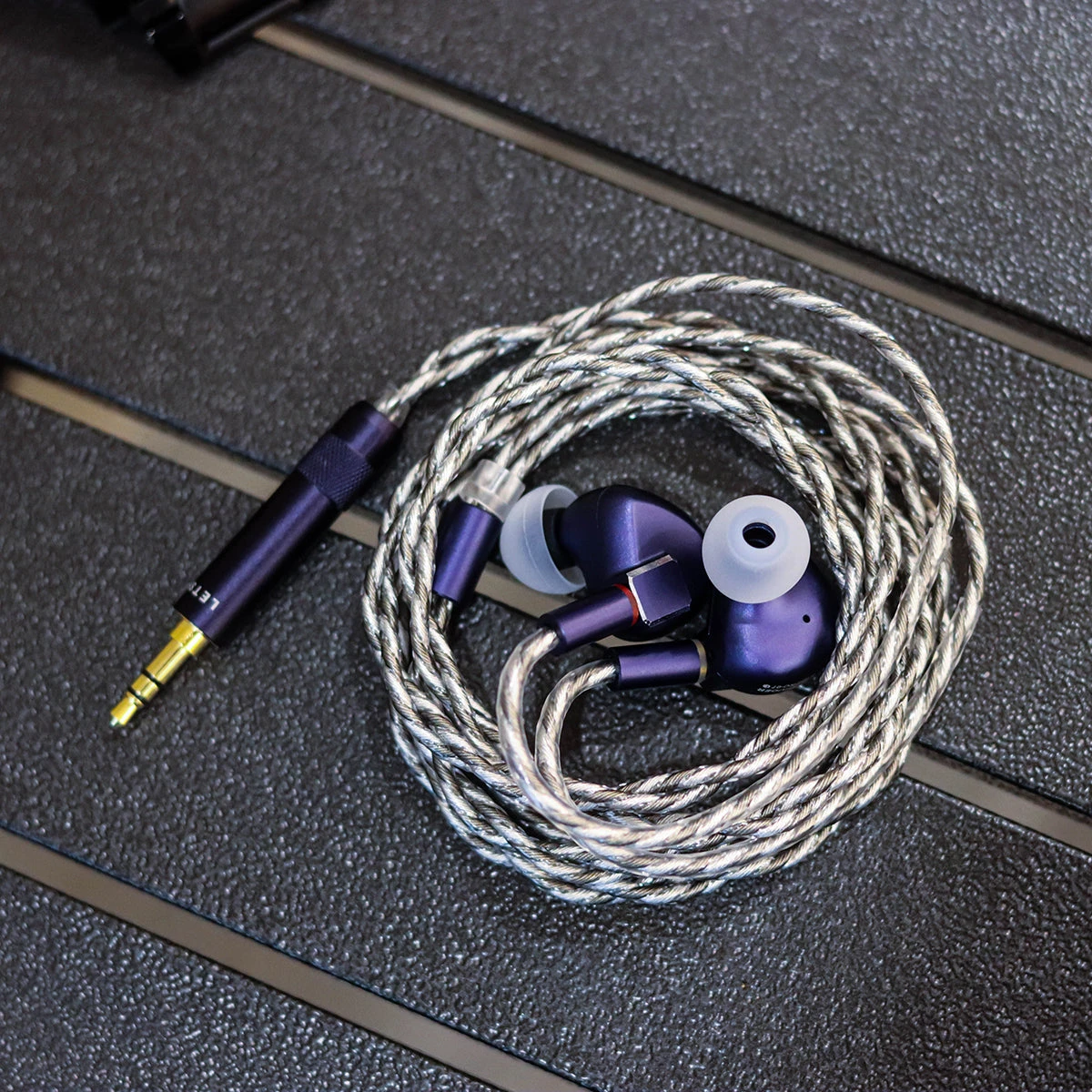

The stock cable of LETSHUOER S12 PRO is constructed with silver-plated monocrystalline copper, and 4 x 98-strands cores are then weaved together. It is terminated in standard 0.78mm dual pin connectors, and the other end is a swappable jack with 2.5mm / 3.5mm /4.4mm jacks. This system will work with a great amount of source gears and IEMs.

Custom 14.8mm planar magnetic driver

LETSHUOER S12 PRO utilizes a custom 14.8mm large diaphragm driver with great details retrieval, punchy bass and clear trebles. 102db high sensitivity means that it can be easily driven to volume, be it a cell phone or dongle DACs, LETSHUOER S1 PRO will sound optimal pairing with most source / amps.

Five-axis machining process

LETSHUOER S12 PRO’s aluminum chassis is shaped to have a snug fit in the concha. The finishing is smooth to the touch thanks to the five-axis CNC machining process. It’s strong, touch and without sharp edges. The chassis comes in a minimalistic profile, with not a lot of wiggle room within the acoustic chamber to minimize reverberation. Dual-pin receptacle is a separate piece protruded from the faceplate so that the irregular shape would not cause distortion.

Balanced chassis design

LETSHUOER S12 PRO’s chassis design is a continuation of the predecessor, with an updated tuning. Multiple vent holes on both sides are effective in alleviating negative pressure build up within the ear canal, and thus protecting the hearing. The independent rear acoustic chamber design makes channel matching to be more consistent. In terms of sound performance, the structural design of the front and rear acoustic chamber effectively discharges the pressure inside the chassis, thereby attaining a more natural sound.

Ergonomic design details

The earphone connector protrudes slightly from the side of the IEM so the earhook on the cable can sit comfortably on the ear without twisting inwards. The receptor is slightly indented into the chassis to ensure product longevity as well.

Product warranty and accessories

Any products bought from the LETSHUOER official stores will get 12 months of warranty. If you have questions or problems with the product, you can contact us directly and we will get back to you within 24 hours.

Equipped with everything you need for music enjoyment.

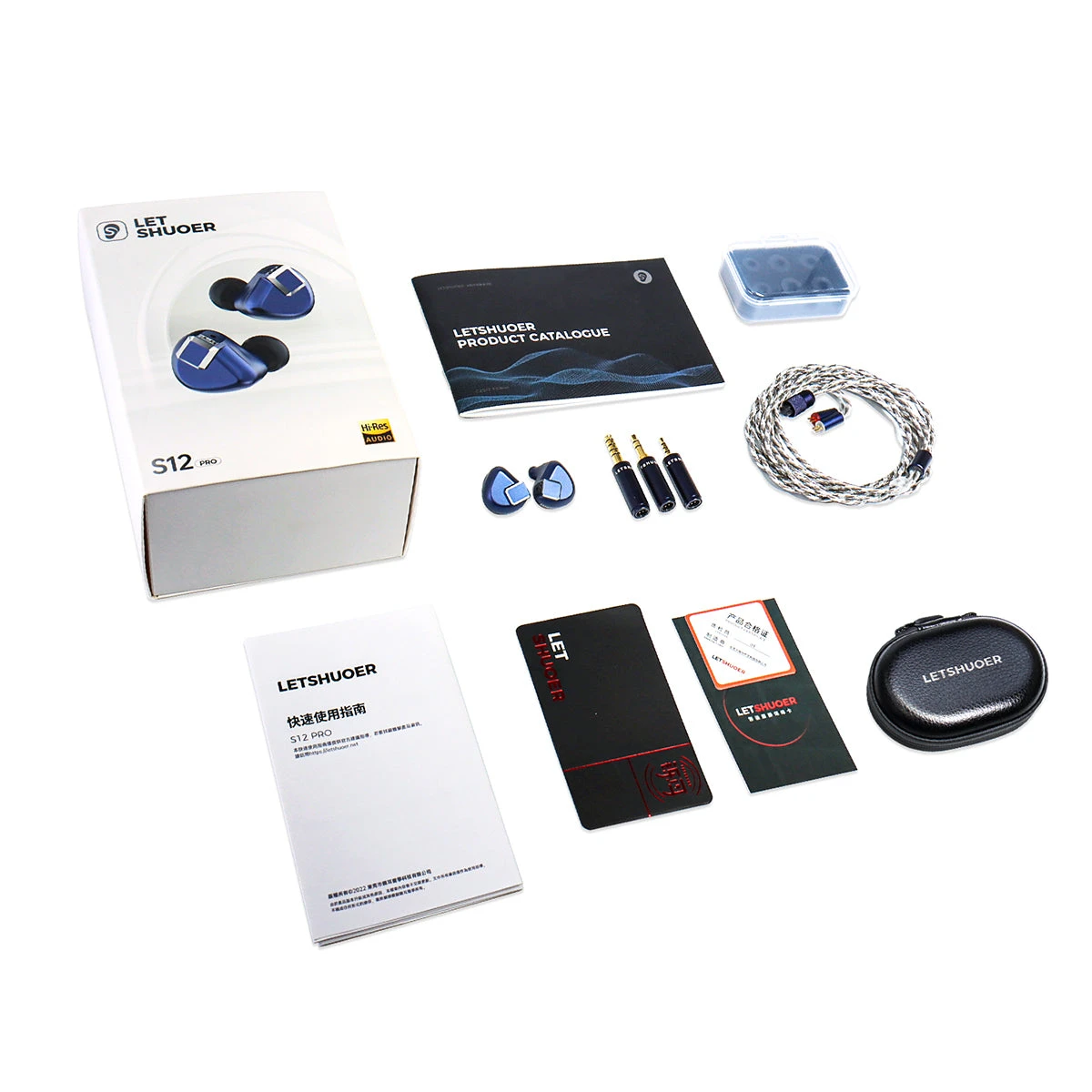

LETSHUOER S12 PRO comes with these accessories:

• Memory foam, standard and transparent ear tips. Each set comes in three sizes.
• Stock cable with 2.5mm / 3.5mm / 4.4mm adapter
• Durable faux leather carrying case
• User manual and quality assurance certificate

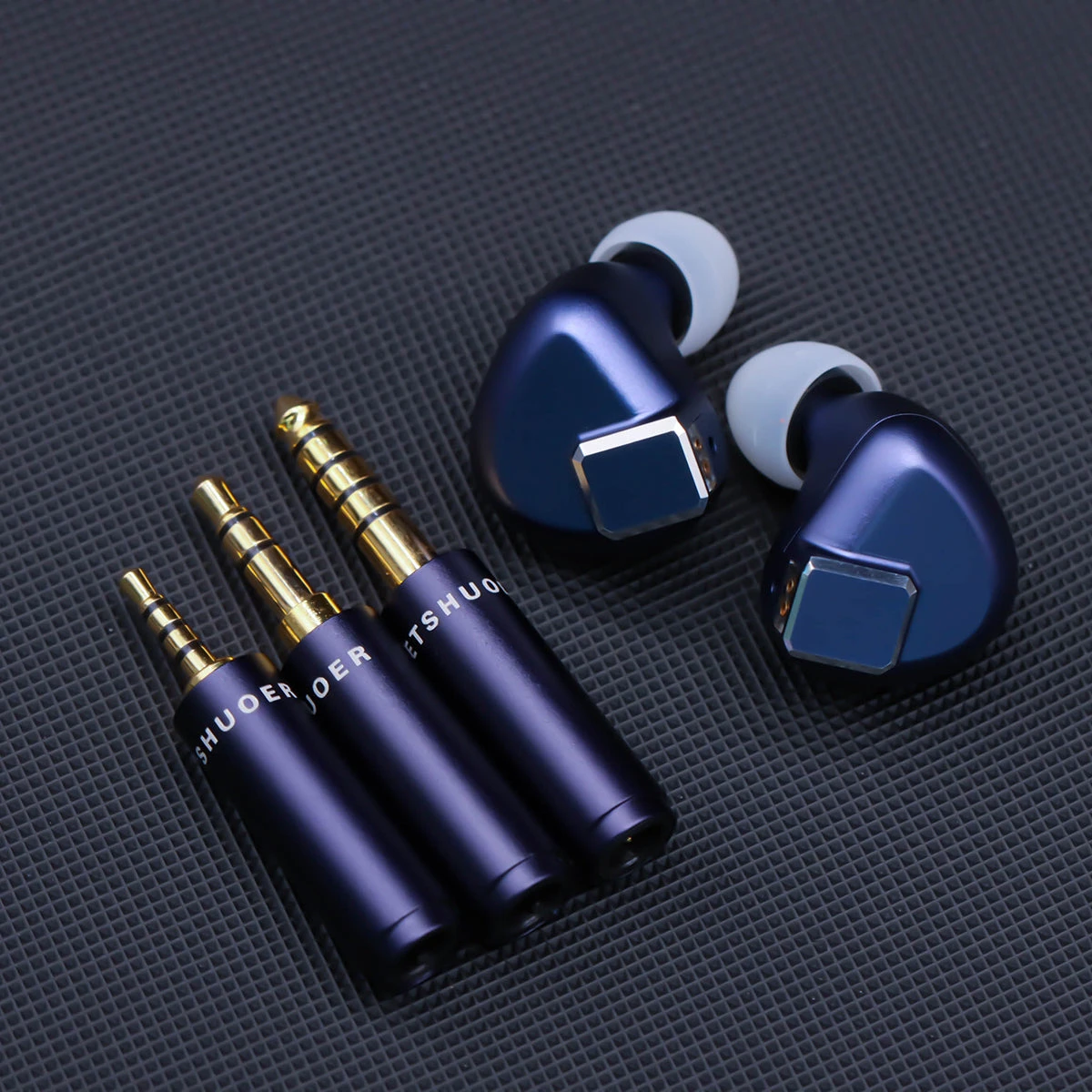

Swappable jacks – where the “pro” comes in

A new set of swappable jacks cable system comes standard to the pro model. It utilizes the same silver-plated monocrystalline cores that customers love with the original S12 cables. S12 Pro elevates the original S12 cable with a swappable 2.5mm / 3.5mm / 4.4mm jacks system and terminates with standard 0.78mm dual pin connector.

S12 Pro specifications:

Sensitivity	102db
Distortion	0.5% ±0.1%
Impedance	16Ω±1Ω
Connector	0.78 dual pin
Jack	2.5mm / 3.5mm / 4.4mm swappable
Chassis material	Aluminum alloy
Machining process	CNC
Driver	Planar magnetic
Driver diameter	14.8mm
Frequency response	20-20kHz
Cable	392-strands monocrystalline copper
