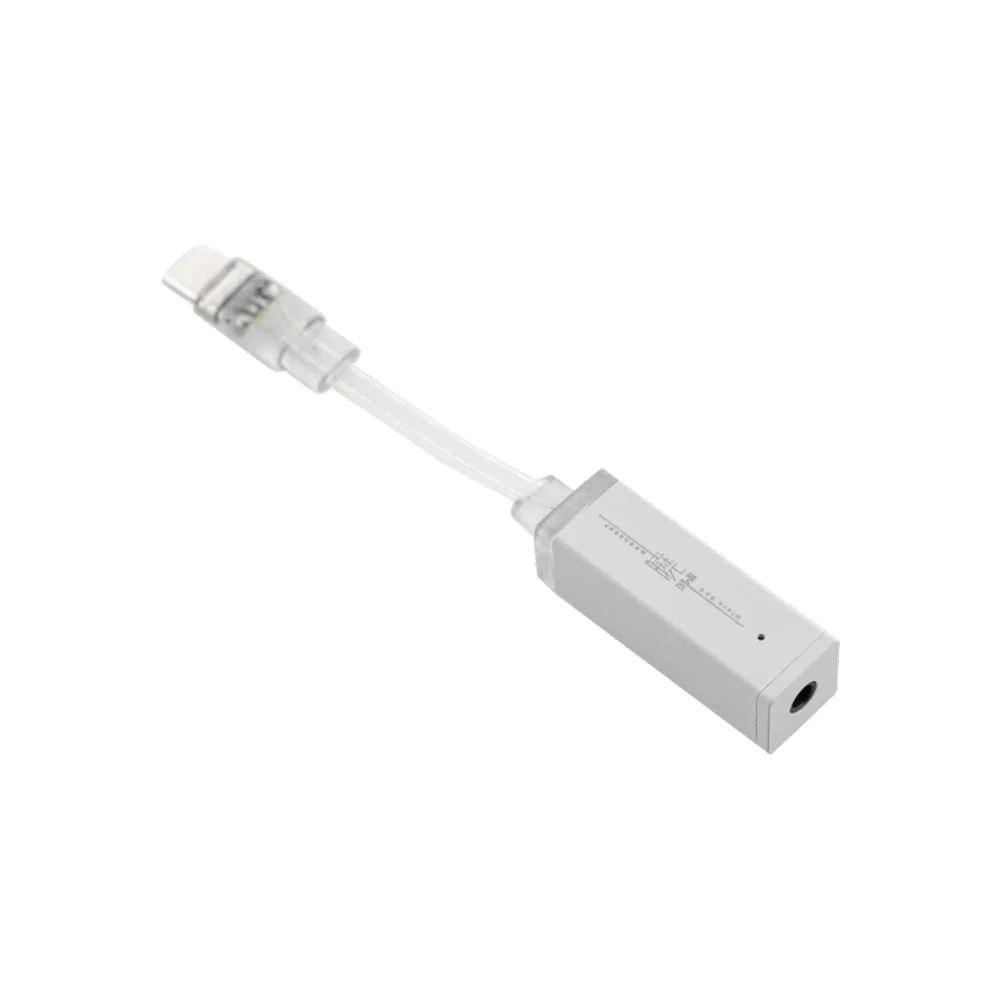

MoonDrop DAWN 3.5mm Portable Headphone DAC/Amp (Open Box)

Dawn 3.5mm

• Compact, Smart, Aesthetic
• Cost-effective
• Music | Gaming | Movie
• Offering an immersive experience
• PC and mobile devices, covering the multiple scenes
• 127dB dynamic range
• Ultra-low THD as 0.0002%
• Over 114dB SNR
• PCM decoding is up to 32Bit/ 768kHz
• Supports DSD256
• 2Vrms large thrust
• Ultra-low Background Noise
• 3.5mm Stereo Out

3.5mm Stereo DUAL Decoding Chip

Adopting dual CS43131 high performance decoding chip
Equipped with excellent circuit design
Bring super high-performance approaching the theoretical value of the chip

3.5mm Stereo Headphone Output

Equipped with 3.5mm single-end earphone jack
Outputting the maximum power of 2Vrms
For easily driving all kinds of earphones

Type-C interface

Compatible with mainstream devices
The extended devices can be used by adapter

DAWN 3.5mm utilizes Type-C interface
Connect with mainstream Android smartphones and computers as well

DUAL Crystal Oscillator Ultra-Low Jitter

Adopt independent dual crystal oscillator
Ensure high-quality digital signals

127dB Dynamic Range

Relying on high-performance fully balanced circuit
And high-level hardware configuration
The dynamic range of DAWN 3.5mm is up to 127dB (AES17 20kHz, Awt)
Bring you more subtle details in music

ULTRA-LOW Background Noise

The background noise is as low as 1.1uVrms
And SRN is as high as 127dB (AES17 20kHz-Awt)
Even for the ultra-sensitive multi-BAs earphones the background noise is also inaudible

ULTRA-LOW Distortion Highly Restored Timbre

THD+N is lower than 0.0002%
The SNR is as high as 114dB

Easily Control the Complex Audio Signals

DAWN 3.5mm features the excellent multi-tone performance
Bring the restored timbre and detailed sound
Even for the complex large music programs

Far Beyond the Effective Bandwidth of Hires Standard

The effective frequency response range is 5Hz-87000Hz
Easily cover the required audio bandwidth

Excellent Decoding Performance

Decoding All kinds of High Definition Audio

DAWN 3.5mm owns the capability of decoding DSD256
And PCM 32Bit/ 768kHz
Show you a cost effective audio decoding amplifier

The driver is required for PC

Customize Digital Cable Ensure signal Transmission

Uses customized parallel arrangement of high-purity copper silver-plated digital signal transmission cable. It is more beneficial to the transmission of digital signals than hand-woven audio cable. Ensure low distortion and anti-interference of digital signals

Aluminum Alloy Shell Anti-Interference

DAWN 3.5mm is designed with aviation aluminum alloy CNC shell
It not only has rigidity but also can shield external electromagnetic interference
White matte paint spraying presenting delicate texture

MOONDROP LINK

Compatible with MOONDROP Link Firmware upgrade, gain and filter settings can be performed by smartphone

*The APP can be download via Google Store or APP store

Features

• Double chips configuration, combines with two CS43131 chips and excellent circuit design to access the performance close to the theoretical value of the chip. ‍
• Maximum line output: 2Vrms (High), 1Vrms (Low). ‍
• A adapter can achieve to extend the compatible mainstream devices. ‍
• Adopting dual crystal oscillator ensures high-quality digital signals
• The maximum dynamic range reach 127dB. ‍
• The noise floor is as low as 1.1uVrms. ‍
• The total harmonic distortion is lower than 0.0002%, and the SNR is as high as 114dB. ‍
• Uses the parallel arrangement of high purity copper silver-plated digital signal transmission cable. ‍
• The shell adopts aviation aluminum alloy cnc cavity and white matt paint, bringing a delicate surface texture and it can effectively shield external electromagnetic interference. ‍
• The gain and setting filters can be operated by MOONDROP LINK.

Specification

[DAWN 3.5] high performance mini DAC/AMP

• Weight: 11.5g
• Size: 115mm x 13.4mm
• Headphone jack: 3.5mm single-ended
• Frequency response range: 5hz-87kHz (-3dB)
• Connector: USB Type-C
• Background Noise: 1.1uV (AES17 20kHz)
• THD+N: 0.0002% (AES17 20kHz, without load)
• SNR: 127dB (AES17 20kHz, A-weighted)
• Firmware upgrade: support (PC)
• Gain: High/Low (software switching)
• Output: 2Vrms (High), 1Vrms (Low)

Package

• [DAWN 3.5] USB DAC/AMP * 1
• Type-C to Type-A adapter * 1
• Certificate * 1
• Manual * 1
• Warranty Card * 1
