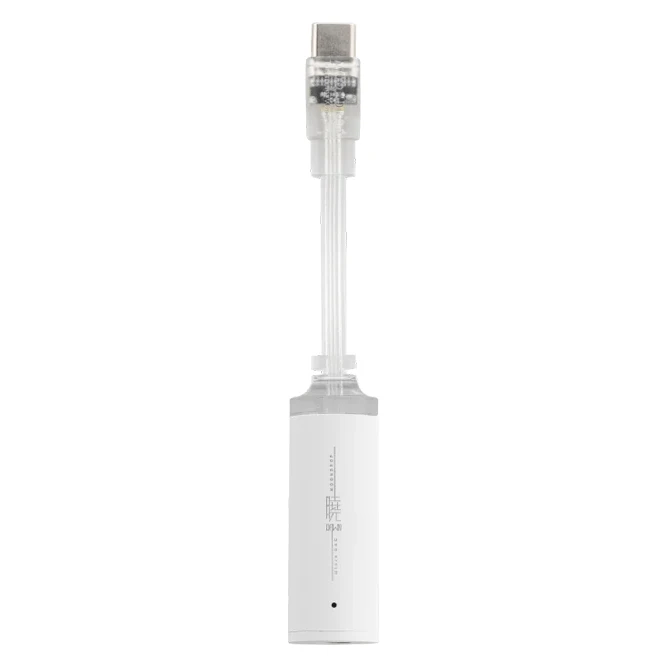

MoonDrop DAWN 4.4mm Portable Balanced Headphone DAC/Amp

MOONDROP DAWN 4.4mm Full Balanced High-Performance Mini USB DAC/AMP

• Compact, Smart, Aesthetic
• Cost-effective
• Music | Gaming | Movie
• Offering an immersive experience
• PC and mobile devices, covering the multiple scenes
• 132dB dynamic range
• Ultra-low THD as 0.00017%
• Over 117dB SNR
• PCM decoding is up to 32Bit/ 768kHz
• Supports DSD256
• 230mW large thrust
• Ultra-low Background Noise
• 4.4mm Fully Balanced Out

Fully Balanced DUAL Decoding Chip

Adopting dual CS43131 high performance decoding chip

Full-link full balanced decoding is performed through four-channel

Bring super high-performance beyond the theoretical value of the chip

4.4mm True Balance Headphone Output

Equipped with 4.4mm true balanced earphone jack
Outputting the maximum power of 4Vrms
Offering up to 230mW undistorted power at 32Ω
For easily driving all kinds of earphones

Type-C interface

Compatible with mainstream devices
The extended devices can be used by adapter

DAWN 4.4mm utilizes Type-C interface
Connect with mainstream Android smartphones
And computers as well
It’s compatible with Apple devices through adapters* (The Type-C to lightning adapter needs to be purchased separately)

*Due to the limitation of power supply for Lightning interface, the maximum output is 1Vrms@32Ω (the maximum power is 31.25mW per channel) when iPhone/iPad (not Type-C) as the front-end devices. The playback interruption may occur if the volume is too high.

DUAL Crystal Oscillator Ultra-Low Jitter

Adopt independent dual crystal oscillator

Ensure high-quality digital signals

132dB Dynamic Range

Relying on high-performance fully balanced circuit
And high-level hardware configuration
The dynamic range of DAWN 4.4mm is up to 132dB (AES17 20kHz, Awt)
Bring you more subtle details in music

ULTRA-LOW Background Noise

The background noise is as low as 1.3uVrms
And SRN is as high as 132dB (AES17 20kHz-Awt)
Even for the ultra-sensitive multi-BAs earphones the background noise is also inaudible

ULTRA-LOW Distortion

Highly Restored Timbre

THD+N is lower than 0.00017%
The SNR is as high as 117dB

Easily Control the Complex Audio Signals

DAWN 4.4mm features the excellent multi-tone performance
Bring the restored timbre and detailed sound
Even for the complex large music programs

Far Beyond the Effective Bandwidth of Hires Standard

The effective frequency response range is 7Hz-90000Hz
Easily cover the required audio bandwidth

Excellent Decoding Performance

Decoding All kinds of High Definition Audio

DAWN 4.4mm owns the capability of decoding DSD256
And PCM 32Bit/ 768kHz
Show you a cost effective audio decoding amplifier

The driver is required for PC

Customize Digital Cable Ensure Signal Transmission

Uses customized parallel arrangement of high-purity copper silver-plated digital signal transmission cable It is more beneficial to the transmission of digital signals than hand-woven audio cable
Ensure low distortion and anti-interference of digital signals

Aluminum Alloy Shell Anti-Interference

DAWN 4.4mm is designed with aviation aluminum alloy CNC shell. It not only has rigidity but also can shield external electromagnetic interference
White matte paint spraying presenting delicate texture

MOONDROP LINK

Only compatible with MOONDROP LINK for Android
The gain and filter setting can be performed by smartphone

*MOONDROP LINK APP can be download via Google Store
*iOs doesn’t support this feature

Specifications

• DAWN Full Balanced High-Performance Mini USB DAC/AMP
• Weight: 13.7g
• Size: 120mm X 16.4mm
• Earphone Jack: 4.4mm balanced port
• Frequency response range: 7hz-90Khz(-3dB)
• Port: USB Type-C
• Background noise: 1.3uV(AES17 20Khz)
• THD+N: 0.00017% (AES17 20kHz, without load)
• SNR: 132dB(AES17 20Khz, A-weight)
• Firmware upgrade: Support (Connect PC)
• Gain: High/Low (Software switching)
• Line-out: 4Vrms(High),2Vrms(Low)
• Maximum output power: 230mW@32Ω,54mW@300Ω
