MoonDrop MoonRiver 2 Ti Portable USB DAC/Amp

MoonRiver 2: Ti Portable USB DAC/Amp

Combination of Master Workmanship and Excellent Performance

• CNC Carved Shell of TC4 Titanium Alloy
• Window Design Fully Display
• 32Bit/384kHz PCM Decoding
• DSD512 DSD Decoding
• Dual CS43198 Flagship Decoding Chip
• Dual Amplifier Four-channel Output
• 5PCS Independent Power Chips
• 131dB Dynamic Range Ultra-low Background Noise
• Distortion 0.0001% SNR exceeds 116dB
• 4Vrms/250mW Balanced Output
• 100-level Smooth Volume Control
• Interchangeable Type-C Port
• 3.5 Single-ended + 4.4 Balanced

Brand-new Design: Going with the Flow

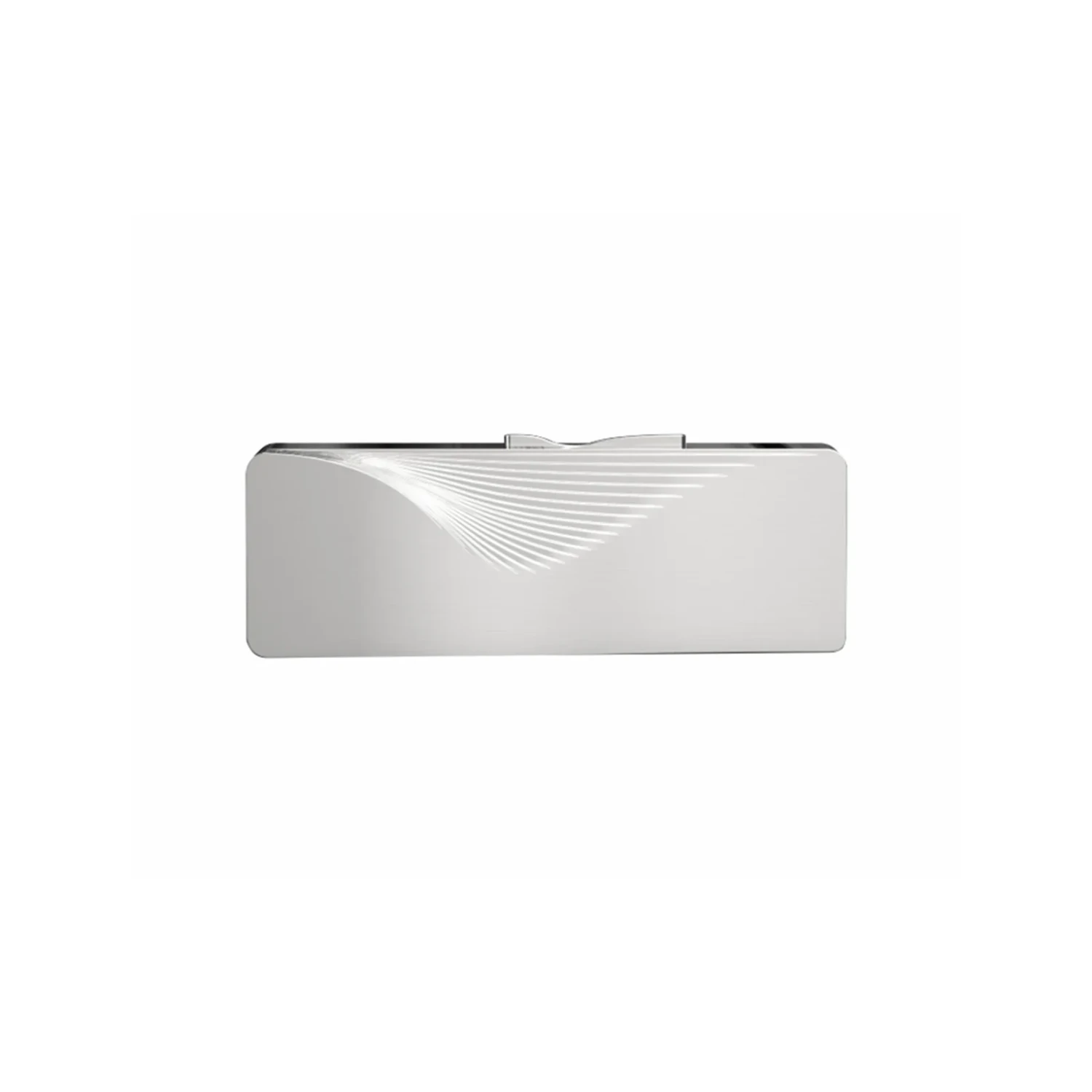

Integrated Titanium Alloy CNC-machined Shell + Transparent Cover

The unique design of the MOONRIVER 2 generated wide interest in the audio community, and was imitated by several manufacturers. MOONDROP has redesigned the unit and made significant improvements in performance.

The new MOONRIVER 2: Ti takes for its inspiration the rippling “Flow” of the original design, delivering rich details and layering through exquisite craftsmanship, a careful combination of selected materials, and esthetically pleasing lines.

The MOONRIVER 2: Ti demonstrates MOONDROP’s commitment to excellence through meticulous product design and outstanding performance.

Workable Well with Computers, Smartphones, and Laptops.
offers both lossless and master audio

MOONRIVER 2: Ti is compatible with most available computers, smartphones, and laptops, and supports decoding PCM from 16Bit/44.1kHz to 32Bit/384kHz, even for 1Bit with DSD512.

Dual Flagship Cirrus Logic Decoding Chips Dual Independent Dual-Channel Amp Chips 5pcs Independent Power Chips Complete Hifi Audio Circuit

MOONRIVER 2: Ti adopts dual flagship decoding chips CS43198 from Cirrus Logic, an amplifying circuit composed of two independent dual-channel amplifier chips, a HiFi-level USB digital interface chip, and two independent crystal oscillators, and five independent power supply chips to feed each IC independently, forming a complete HiFi audio circuit architecture with strong thrust, ultra-low distortion and noise, and full sound signature.

100-level Smooth DAC Volume Control

Almost lossless 100-level volume control, which separates the device volume control from smartphone, not only presents better performance, but also brings a smooth control experience.

131dB Dynamic Range
Larger dynamic, ultra-low background noise

The Distortion is as low as 0.0001%,
and the SNR Exceeds 116dB
Fully restore HiFi sound quality

4Vrms/250mW Lossless Output Power

3.5mm Single-ended Outputs + 4.4mm Balanced Outputs

The 3.5mm single-ended port ensures a wider compatibility The 4.4mm balanced port provides twice the performance of single-ended output

SPECIFICATIONS

• Model: MOONRIVER 2:TI Portable DAC/AMP
• Weight: 30g
• Size: 57mm x 19.6mm x 13.4mm
• Headphone Plug: 3.5mm SE, 4.4mm BAL
• Frequency Range:7Hz-85kHz (±1dB)
• Background Noise:
• 4.4mm: 1.5μV (AES17 20kHz)
• 3.5mm: 1.2μV (AES17 20kHz)
• SNR:
• 4.4mm: 131dB(A-wt)
• 3.5mm: 123dB(A-wt)
• Dynamic Range: 4.4mm: 131dB (A-wt)
• Line Out:
• 4.4mm: 4Vrms
• 3.5mm: 2Vrms
• Maximum Output Power: 4.4mm: 32Ω 280mW, 300Ω 53mW
• THD+N: 4.4mm: 0.00014% ( AES17 20kHz, 300Ω )

WHAT IN THE BOX?

• [MoonRiver2]Micro DAC+AMP * 1
• Type-C to Type-C adapter cable *1
• Type-A to Type-C adapter *1
