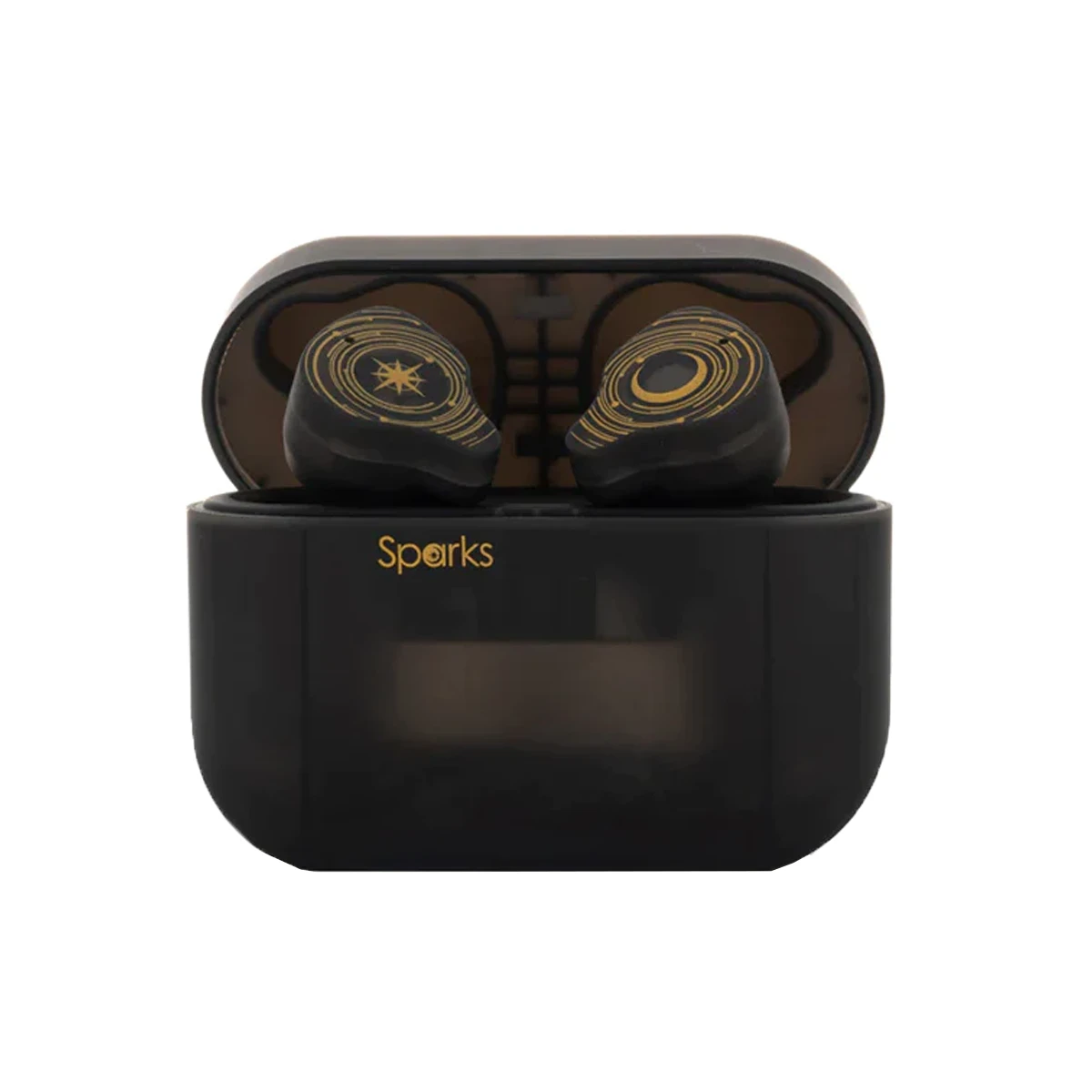

MoonDrop Sparks True Wireless In-Ear Headphone

MOONDROP Sparks True Wireless Stereo

• Bluetooth 5.2
• Compatible with iOS, Android
• 10m (33 feet) Stable Transmission
• NFC Fast Connection
• Touch Operation
• Single/Dual Earbuds Switching
• Magnetic Charging
• VDSF targert response Virtual Diffuse Sound Field
• 8+48h Battery Life
• High Efficiency Magnetic Circuit
• aptX Adaptive High-quality Transmission
• Qualcom CVC Noise Reduction

HEMC
Improved High Efficiency Magnetic Circuit

ENERGY CONVERSION EFFICIENCY X 1.4

Based on the original high efficiency external magnetic circuit, it improves the system’s energy conversion efficiency to 1.4 times the original.

HIGH DYNAMIC SOUND FIELDS
More Energy

With the output of wireless earbuds, the unit’s energy conversion efficiency has been greatly improved. It could provide better dynamic sound field, more detailed sound.

Qualcomm QCC3040 aptX Adaptive/ACC

Sparks (self-developed version. International version) is a Bluetooth audio circuit based on Qualcomm QCC chip independently developed by its Bluetooth development team. It supports aptX Adaptive high-quality transmission protocol and AAC high-quality transmission protocol, bringing low power consumption and low latency. Low-loss and high-fidelity transmission.

TUNING BY MOONDROP
Wide Soundfield Natural Sound

Relying on the built-in DSP of the Bluetooth chip and our dynamic tuning technology, the frequency response characteristic of Sparks is almost fully in line with the new VDSF target response, which will bring a spacious sound field and almost real natural sound.

BLUETOOTH 5.2

Bluetooth 5.2 High-rate Low-latency

Battery Life 8h+48h

Single Earbud 50mAh
Charging Case 700mAh

Mobile APP

Sparks [self-developed version (international version)] uses the self-developed MOONDROP Link mobile phone APP, which can be used for online OTA (firmware update), sound quality expansion (switching different sounds, simulating different classic headphones), and function expansion through OTA and some upgrades. APP will also adapt the headset to provide detailed instructions for product use and in-depth functions. In the next upgrade, APP will also expand functions such as access to the after-sales management system and user community, so stay tuned. (The APP is still in the internal testing stage and will be launched soon.) (Page 10C)

Specifications

• Frequency Response: 20- 20000Hz(IEC60318-4)
• Driver Unit: 6mm Dynamic Driver
• Housing Material: ABS/PC
• Diaphragm: Berylium-Coated Dome + PU Suspension Ring
• Driver Coil: 0.035mm-CCAW
• Magnetic Circuit: [HEMC] Improved High Efficiency Magnetic Circuit+N52 Neodymium magnet
• Acoustic Filter: Patented Anti Clogging Filter
• Bluetooth Version: Bluetooth 5.2
• Audio Transmission Formats: aptX Adaptive/aptX/AAC/SBC
• Battery Capacity: Earphone 50mAh I Charging Case 700mAh
• Playback time: 8 hours on earphone + 48 hours on charging case
• Charging rating: 5V-500mA
• Operation: Touch, Light + Voice prompt
• Bluetooth Range: 10 meters
• Supplier of Bluetooth PCBA: Self-developed
