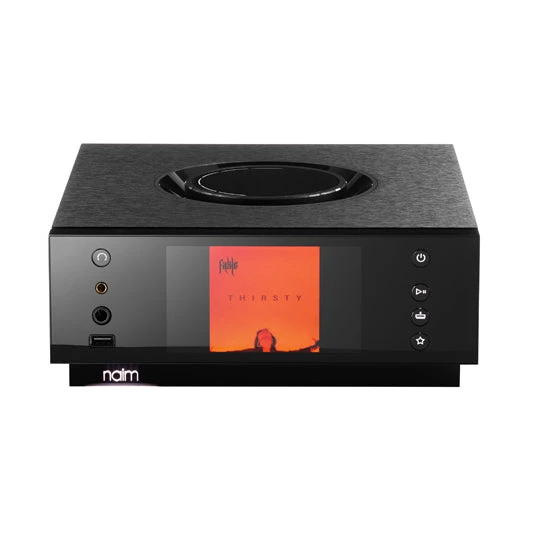

Naim Uniti Atom Headphone Edition All-in-One System

From Audio46: It is normal for the power plug area to be loose

---

Uniti Atom Headphone Edition (115V, US)

Relax at home, without distractions

The Uniti Atom Headphone Edition can transform any space into your own audio cocoon. Where typical headphone amplifiers demand tethering to a computer the Uniti Atom Headphone Edition has all the brains – and Naim’s exclusive streaming platform. The headphone-optimised version of the multi-award-winning Uniti Atom also features Balanced 4-pin XLR and 4.4mm (Pentaconn) outputs; 6.3mm output, plus is compatible with an array of headphones – we suggest Focal as the perfect partner. Offering yet more flexibility, you can keep up to three headphones plugged in and switch sets depending on what you’re listening to and when.

Stream your own digital music library, favourite radio stations and podcasts, and music from Spotify, Apple Music, Tidal and Qobuz through your headphones without life disturbing you. Also wirelessly stream directly from all your devices via Apple AirPlay 2 and Chromecast built-in, plus connect other sources, from turntables to USB drives. Explore and curate all these choices via the Naim App.

For when you want to listen out loud, it also excels as a compact streaming pre-amplifier. Just add active speakers, or a power amplifier and speakers – for an instant system.

Enjoy all this, and more

Chromecast built-in

New for Uniti is native support for Google’s latest technology, Chromecast built-in. This streaming service allows you to seamlessly link to hundreds of supported apps including Deezer, Qobuz, Plex, TuneIn, Soundcloud and Pandora from your smartphone or tablet and stream directly to Uniti.

AirPlay

Stream music from your iDevice or from iTunes and Apple Music.

TIDAL

The lossless streaming service is integrated into the system for an immersive, high-quality sound experience. Plus get a 90-day free trial of the lossless HiFi-tier service (terms and conditions apply).

Spotify^® Connect

Discover millions of songs from the world’s most popular streaming service with the built-in Spotify Connect feature.

Bluetooth (aptX HD)

The new Uniti all-in-one players now feature aptX HD. Pair your Bluetooth device and instantly play back your music in high definition quality.

Internet Radio^™

Access thousands of internet radio stations and save your favourite pre-sets for easy access.

UPnP^™ (Universal Plug ‘n’ Play)

Stream your stored music from a PC, Mac or network-attached storage in high-res ‘better than CD’ quality.

Digital Input (S/PDIF)

Boost audio from digital sources such as TVs, set top boxes or games consoles.

Analogue Output

For connection to an external power amplifier or a sub-woofer.

Headphones

Front panel 3.5mm headphone jack with newly upgraded headphone amplifier with significantly improved bass extension.

Storage

Store up to 20,000 tracks to a local USB-connected storage device and either play them back through your Uniti Atom or serve them to other Naim streamers on your home network.

Multiroom

New Uniti allows you to play music from any source in multiple rooms simultaneously – simply sync the units using the Naim control app. Or play different music in every room. You can also serve any music stored on your Uniti Atom to other Uniti all-in-one players or Naim streamers at full CD quality.

File Formats

Supports a broad range of music formats including WAV, FLAC, DSD, Apple Lossless, AIFF, AAC, Windows Media-formatted files, Ogg Vorbis and MP3.

Wireless Updates

Over-the-air updates via the Naim App now enable you to update your Uniti system at the touch of a button.

Roon Ready

Roon transforms the experience of browsing music. Beautifully laid-out metadata is located automatically, then interconnected by links to build a surfable, searchable digital magazine about your music collection.

Qobuz

Qobuz allows you to stream the most comprehensive CD-quality music catalogue currently available and the largest selection of albums in true high-resolution studio quality directly to your Naim music streamer.

Easy App control – in one room or many

The Naim App – available for Apple and Android devices – makes it simple to control your Uniti Atom Headphone Edition, and even link up other music systems around your home into a stunning multi-room set-up.

Use the App to access all your music, including your favourite radio stations, streaming services and playlists, and explore artist discographies and biographies.

Uniti Atom Headphone Edition works seamlessly with other Naim streaming products, including Mu-so systems. Choose the same song in beat-perfect sync or play different music in different rooms. You can also pair Uniti Atom Headphone Edition with other AirPlay 2-compatible wireless speakers via the Apple Home app, or with other Chromecast built-in devices via the Google Home app.

Dimensions and Weight

95 mm x 245 mm x 265 mm (H x W x D)
7 kg

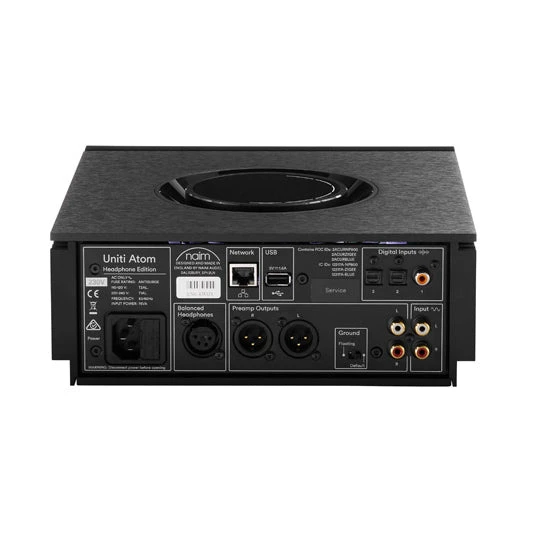

Connectivity

Network: Ethernet (10/100Mbps)
WiFi (802.11 b/g/n/ac with internal antennae)
Multiroom: Sync up to five Naim Streaming products and control via the Naim App.

Audio Inputs
Digital: 2x Optical S/PDIF up to 96kHz, Coaxial RCA (up to 24bit/192kHz, DoP 64Fs)
Analogue: 1 x Stereo RCA pair
USB: 2x USB 2.0 (Type A connector)
Streaming: Apple AirPlay 2, Chromecast Built-in, UPnPTM, Spotify® Connect, TIDAL, Roon Ready, Bluetooth, Internet Radio, Qobuz

Audio Outputs
Balanced XLR Preamp output
RCA Preamp output

Headphone Outputs
4.4mm Pentaconn (balanced) 4 pin XLR (balanced) 6.35mm (¼ inch) jack (unbalanced)
1.5W RMS per channel into 16ohms
Suitable for headphones from 16ohms and upwards

Specifications

Supplied with: Document pack, cleaning cloth, remote, AAA batteries and power lead.

Power

Power Consumption Typical use: 17W
Network Standby mode: No-network Standby mode: Auto Standby time User selectable: adjustable from off up to 2 hour

Mains Supply
115V, 230V; 50 or 60Hz
