RME MADIface XT 394-Channel Triple MADI USB 3.0 Audio Interface

MADI to DAW

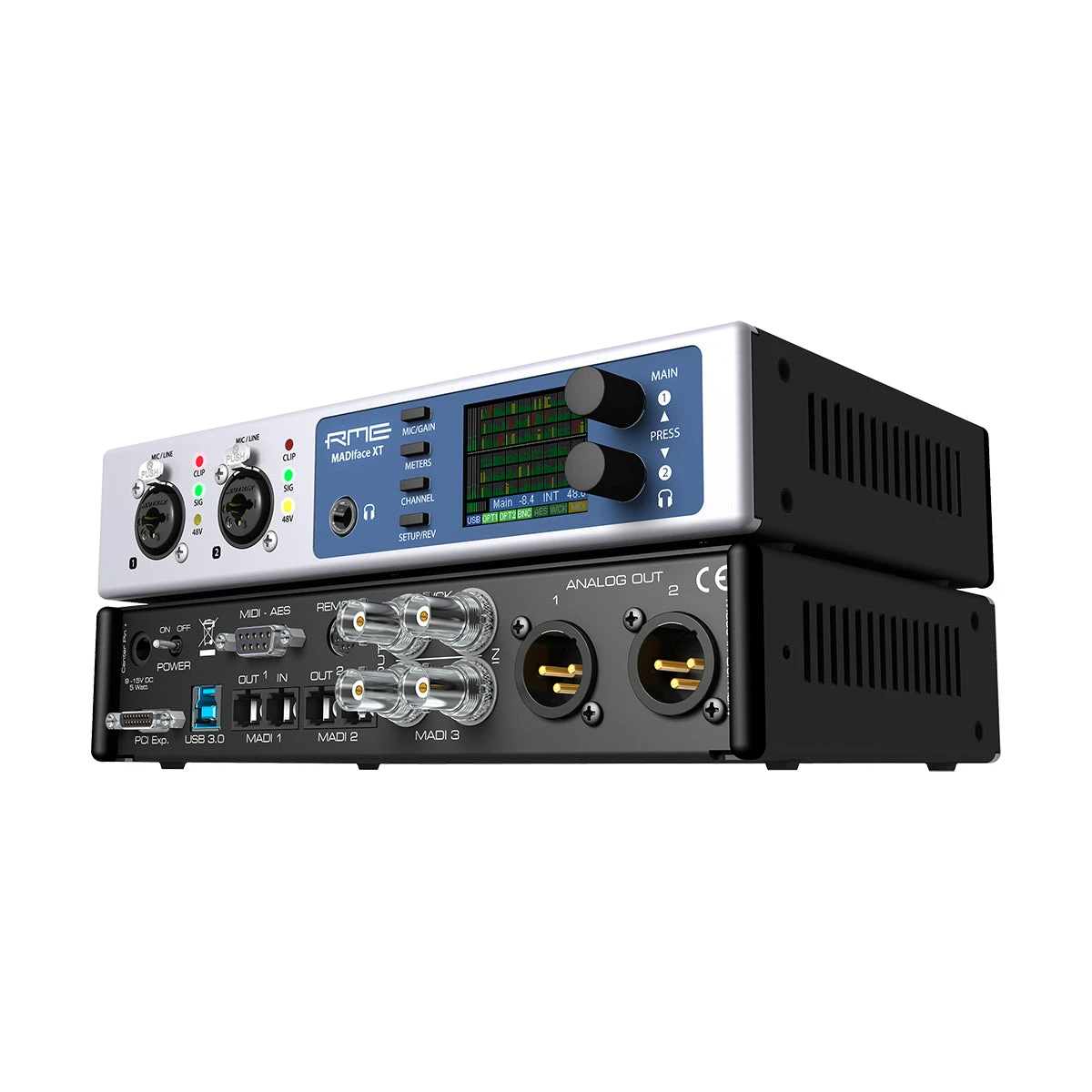

RME’s MADIface XT is the world’s first USB3 audio interface – and the world’s smallest portable interface that provides access to hundreds of audio channels in such a small package.

Connectivity and Features

• 2 x MADI optical I/O
• 1 x MADI I/O coaxial
• 2 x XLR/TRS Mic/Inst/Line
• 2 x Analog I/O
• 1 x Phones Output
• 1 x Word Clock I/O
• 1 x AES/EBU I/O
• 1 x RME USB 3.0
• 4 x MIDI I/O
• TotalMix FX
• AutoSet Digital Gain Control
• ARC USB
• Including FX

USB 3.0 for Maximum Channel Count

For highest usability and connectivity the XT can also be used with USB 2.0 (computer I/O limited to 70 channels). Its unique PCI Express port connects to External PCI Express cards as well as adapters to Thunderbolt, providing all the fastest interfacing technologies available for maximum channel count and lowest latency in one unit.

To bring together the most complete I/O set for live or studio usage, two digitally controlled high end mic/line preamps, two balanced line outputs and one stereo phones output are included. Full stand-alone operation with remote control over MADI plus TotalMix FX for unlimited mixing, routing and processing open an endless world of possible applications.

Features

The RME MADIface XT is capable of transferring digital audio data directly into a computer, from any device equipped with a MADI interface. Analog sources can be connected to a stereo analog input, and 2 stereo analog outputs add full monitoring connectivity. Installation is simple, even for the inexperienced user, thanks to the latest Plug and Play technology. The numerous unique features and well thought-out configuration dialogs put the MADIface XT at the very top of the range of digital audio interfaces.

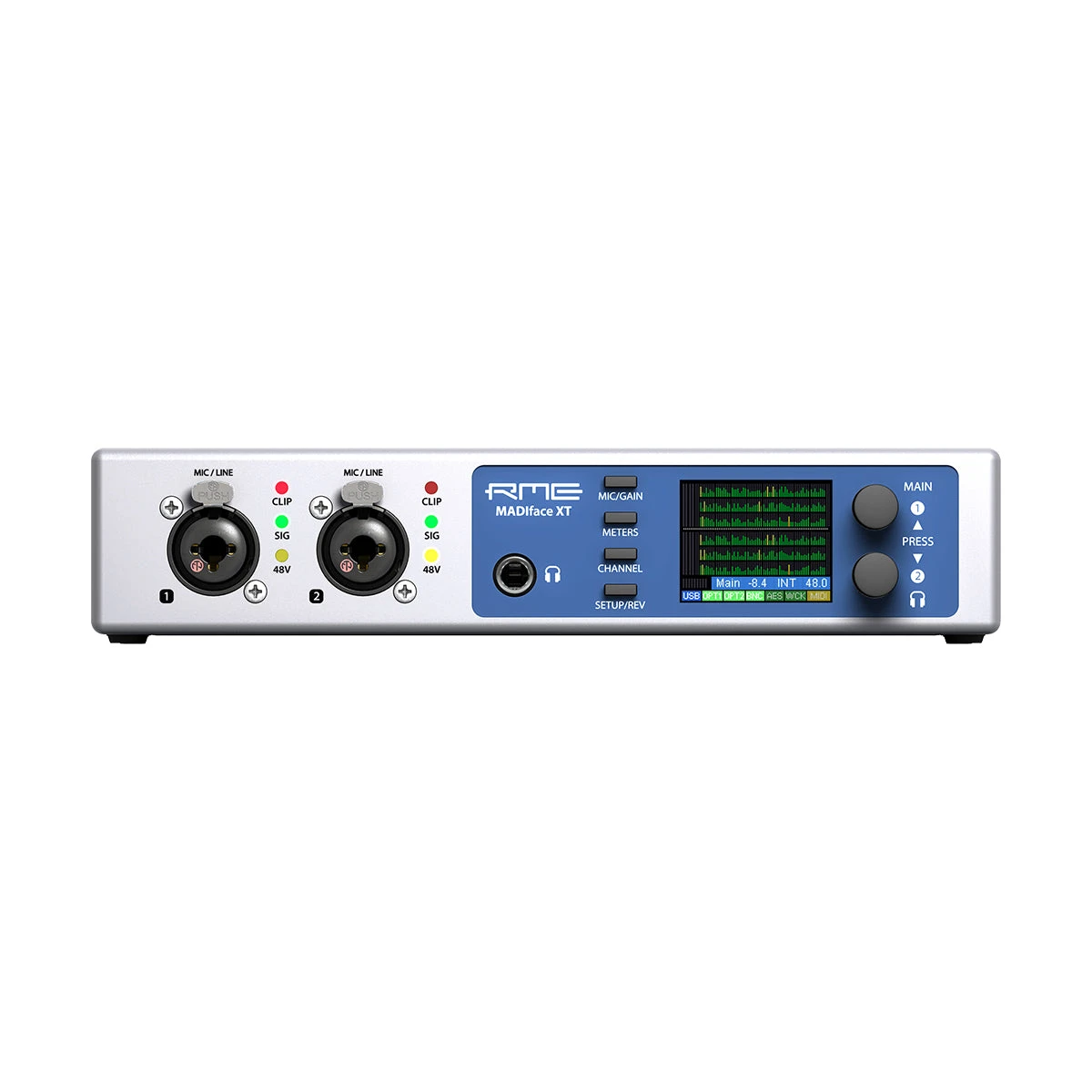

The front of the MADIface XT has 2 XLR/TRS line and microphone inputs, a stereo line/headphone output, two rotary encoders with push functionality, four menu keys, a graphical colour display, and six status LEDs.

MIC/LINE INPUTS

The Neutrik combo sockets of the two Mic/Line inputs provide XLR and 6.3 mm / 1/4″ TRS connection. They have LEDs for Signal (SIG), Overload (Clip) and phantom power (48V).

Headphone Output

Channels 3/4 feed the headphone output, which also operates as high-quality unbalanced line output.

Display

The display main screen (Global Level Meters) shows the current state of interface mode (PCIe orange, USB 2 yellow, USB 3 blue), the sync state of MADI and AES inputs, and incoming and outgoing MIDI data.

The four keys, the two encoders 1 and 2, the high-resolution and clear colour display, and a well thought-out menu structure enable the user to quickly change and configure the device’s settings completely without a computer. Help notes and clear markers in the display guide the user through all functions. The rotary encoder 1 and 2 set the monitoring volume of the rear and front output directly at the device.

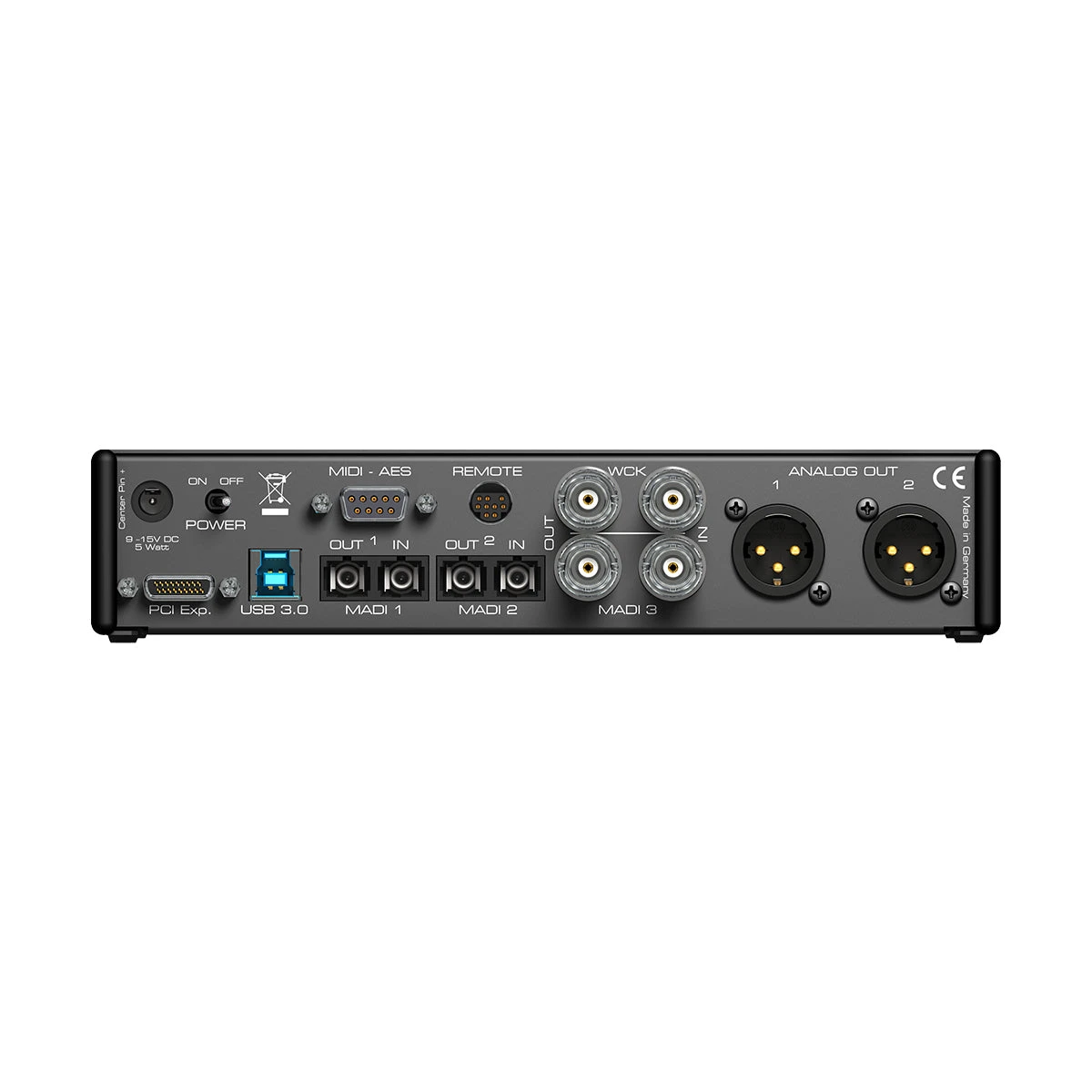

The rear panel of the MADIface XT has two balanced analog outputs, word clock I/O, MADI coaxial I/O, two MADI optical I/O, USB 3 port (compatible to USB 2), PCI Express connector, MIDI/AES I/O, the power socket and a power switch.

Balanced Line Level Outputs. 2 balanced analog outputs via XLR.

Word Clock I/O. BNC. In menu Options – Clock the input can be set to be terminated with 75 Ohms.

MADI I/O coaxial: Standard coaxial MADI ports.

MADI I/O optical: 2 x standard optical MADI ports.

Remote. Mini-DIN. Connector for the optional remote controls with Volume, Store, Dim and Recall functions.

MIDI I/O and AES/EBU I/O. D-sub connector for the included breakout cable with XLR for AES I/O and 5-pin DIN for MIDI I/O.

USB 3.0. USB socket for connection to the computer. USB bus power is not supported. Compatible to USB 2.0.

PCI Express. External PCI Express connector for Molex E-PCIe standard cables.

Power (switch): Turns the MADIface XT on and off.

Socket for power connection. The locking type jack fits the locking type DC connector on the included power supply. After inserting the connector carefully turn it so that it locks.

The included hi-performance switch mode power supply operates in the range of 100V to 240V AC. It is short-circuit-proof, has an integrated line-filter, is fully regulated against voltage fluctuations, and suppresses mains interference.

TotalMix FX – Mixing/Routing with superior features for Studio and Live Work

Since 2001 TotalMix added unlimited routing and mixing to RME‘s audio interfaces. Its unique capability to create as many independent submixes as output channels available turned it into the most flexible and powerful mixer of its kind.

Specifications

MADIface XT

• Interface for External PCI Express, USB 3.0 and USB 2.0
• Sample rates: 32 kHz up to 192 kHz, variable (Sync/word clock)
• Analog input gain range: 60 dB
• SNR input: 108 dB RMS unweighted, 111 dBA
• SNR output: 112 dB RMS unweigthed, 115 dBA
• 3 virtual MIDI over MADI I/Os, one external MIDI I/O
• TotalMix: 4096-channel mixer with 46-bit internal resolution
• SteadyClock™: super-stable digital clock, highest jitter suppression
• Full stand-alone operation, including MIDI remote control
• Comes with DIGICheck, RME’s ultimate measurement, analysis and test tool
• Please note: MADIface XT is not compatible with RME Rackmount ‘RM-19’

Current Compatibility Information:

• Fully compatible to Intel’s USB 3 implementation, which – on current Windows and Mac computers – is part of the chipset. USB 3 sockets that are connected via an internal cable (not directly soldered onto the motherboard) can cause transmission errors. These are shown in the Settings dialog
• Fully compatible to AMD’s USB 3 implementation. USB 3 sockets that are connected via an internal cable (not directly soldered onto the motherboard) can cause transmission errors. These are shown in the Settings dialog
• Fully compatible to Fresco USB 3. This rarely used chip can be found for example on the Sonnet Tango 3.0 PCIe card
• Compatible to NEC / Renesas USB 3. Real-world performance and error-free operation depend on the firmware version, driver version and the PCB layout of the respective extension card/motherboard
• ASMedia – not compatible
• Etron EJ168A – not compatible
• Texas TUSB7340 – not compatible
• Via VL800/805 – not compatible
