TEAC TN-400BT-SE Manual Belt-Drive Bluetooth Turntable
Original price was: $382.00.$97.99Current price is: $97.99.
- Excellent customer service online in a timely manner
- Get Quality, Get More
- The quality you expect, the service you deserve.
- Hassle-Free Payments
ENJOY YOUR VINYL AND CUT THE CORD
The TN-400BT-SE is an analog turntable with Bluetooth® built-in so you can enjoy your favorites using wireless headphones & speakers. A die-cast aluminum platter provides accurate rotational speed while an S-shaped static-balanced aluminum tone-arm provides accurate tracking. The built-in Phono EQ amplifier enables the TN-400BT-SE to be connected to a conventional hi-fi amplifier or a micro hi-fi, while a universal-type headshell allows users to change cartridges with ease.
A high-quality, Japanese-made moving magnet-type cartridge comes pre-installed so you can start enjoying your records immediately.
Aluminum Die-Cast Platter with 3-Speed Belt-Drive
A die-cast, high-inertia aluminum platter is driven by a high-torque DC motor via a durable rubber flat-belt, giving immensely stable playback at 33-⅓, 45 and 78 rpm speeds.
New low-resistance spindle
A precisely-machined stainless steel spindle and durable brass bearing maintain accurate rotational speed, thanks to reduced friction.
Natural walnut veneer finish with laser-engraved logo
The TN-400BT-SE is available in a natural varnished walnut veneer finish with a laser-engraved TEAC logo.
Built-in Phono EQ amplifier
The TN-400BT-SE has an onboard Phono EQ amplifier that supports MM-type cartridges, allowing the deck to be connected to conventional amplifiers/microsystems that lack a dedicated turntable input. The Phono EQ amplifier employs a hi-fi quality NJM8080 op-amp chip (designed by JRC) which amplifies the tiny audio signal from the stylus with the minimum of distortion.
S-shaped static-balanced tone-arm
The S-shaped, static-balanced aluminum tone-arm is equipped with a counterweight and anti-skating mechanism that allow an exact setting of balance as well as tracking pressure, ensuring accurate tracking during playback. A tone-arm lifter is also fitted for smooth lowering of the tone-arm onto records.
The tone-arm takes universal-type headshells so users can change cartridges with relative ease. In order to reduce signal losses between the tone-arm and the headshell, gold-plated contact points are employed, to help deliver an uncorrupted audio signal.

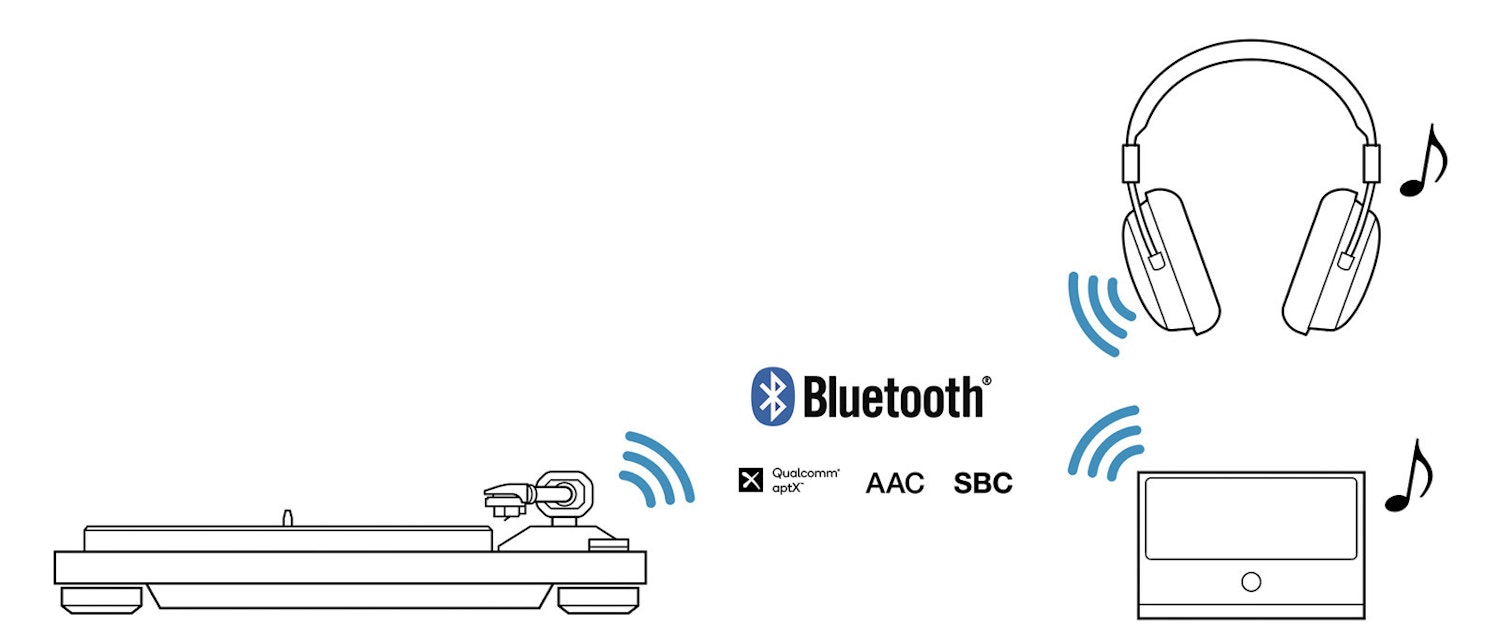

Bluetooth® wireless audio streaming with Qualcomm® aptX™ codec
The TN-400BT-SE’s Bluetooth® wireless transmission system supports the higher quality Qualcomm® aptX™ and AAC codecs, as well as the conventional SBC codec. This means that even if users don’t have a hi-fi system, you can still enjoy truly high-quality vinyl replay via Bluetooth®-equipped headphones or speakers. Connecting the TN-400BT-SE to Bluetooth® headphones or speakers is achieved very simply, at the touch of a button. A single-function pairing key and an associated LED indicator provide simple and clear confirmation of the connection status.
Beautifully detailed
The TN-400BT-SE brings elegance to the process of playing a record. The machined aluminum operation knobs ooze quality while the aluminum feet are attached to high-density MDF chassis via shock-absorbing rubber, providing high feedback resistance.
MM-type Cartridge from Audio-Technica
The deck comes with an excellent, all-purpose MM cartridge, employing a lightweight aluminum cantilever, which helps deliver an accurate, highly musical standard of playback.
INCLUDED ACCESSORIES
- Felt Mat
- EP Adapter
- Counter Weight
- Headshell (audio-Technica AT95E installed)
- Platter
- Dust Cover
- Dust Cover Hinges × 2
- RCA Audio Cable with GND wiring
- AC Adapter (GPE053A-V120050-Z)
- Owner’s Manual (including Warranty Card)
SPECIFICATIONS
| Turntable section | |
| Type | Belt Drive |
| Motor | DC Motor |
| Rotation Speeds | 33-⅓, 45, 78 rpm |
| Wow-and-Flutters | 0.2% |
| S/N Ratio | more than 67dB (A-weighted) 60dB (unweighted, 20kHz, LPF) |
| Turntable (Platter) | |
| Material | Aluminum Die-cast |
| Diameter | 30cm |
| Tone-arm section | |
| Type | S-shaped, Static-balanced |
| Effective Length | 223mm |
| Needle Pressure Range | 0g to 5g |
| Compatible Cartridge Weight | 4g to 8g 14g to 18g (including Head-shell) |
| Head-shell and Cartridge sections | |
| Model of Cartridge | audio-Technica AT95E |
| Type of Cartridge | MM-type (VM-type) |
| Frequency Response | 20Hz to 20,000Hz |
| Output Voltage | 3.5mV (1kHz, 5cm/sec.) |
| Channel Separation | 20dB (1kHz) |
| Output Balance | 2.0 dB (1kHz) |
| Needle Pressure | 1.5g to 2.5g (appropriate value: 2.0g) |
| Needle Life | approx. 300 hours (depends on conditions) |
| Coil Impedance | 2.8kohms (1kHz) |
| DC Resistance | 410ohms |
| Loading Resistance | 47kohms |
| Loading Capacity | 100 to 200pF |
| Coil Inductance | 400mH (1kHz) |
| Static Compliance | 20 × 10-6cm/dyne |
| Dynamic Compliance | 6.5 × 10-6cm/dyne (100Hz) |
| Needle Shape | Joint-oval 0.3 × 0.7mil |
| Cantilever | Aluminum Pipe |
| Vertical Tracking Degree | 20 degrees |
| Overall Dimensions | 17.0(W) × 17.2(H) × 30.5(D) mm |
| Weight | 5.7 g |
| Head-shell Weight | 10g (including nuts, screws, and wires) |
| Analog Output section | |
| Connectors | RCA jack × 1 pair (Gold-plated) |
| Output Voltage | |
| PHONO | 3.5mV +/-3dB |
| LINE | 155mV (-16dBV) |
| Bluetooth® section | |
| Bluetooth version | 4.0 (DUAL MODE) |
| Output class | Class 2 |
| Codecs | SBC, AAC, Qualcomm® aptX™ |
| Maximum number of stored pairings | 8 devices |
| Operation Power | |
| AC Adapter Input | AC 100 – 240V, 50/60Hz |
| AC Adapter Output | DC 12V 500mA |
| Power Consumption | 1.5W or less |
| Standby Power | 0.5W or less |
| Dimensions (including protrusions) | 420(W) × 117(H) × 356(D) mm / 16.5″(W) × 4.6″(H) × 14.0″(D) |
| Weight | 4.9kg / 10.8lbs |
| Operating temperature range | 5°C to 35°C |
