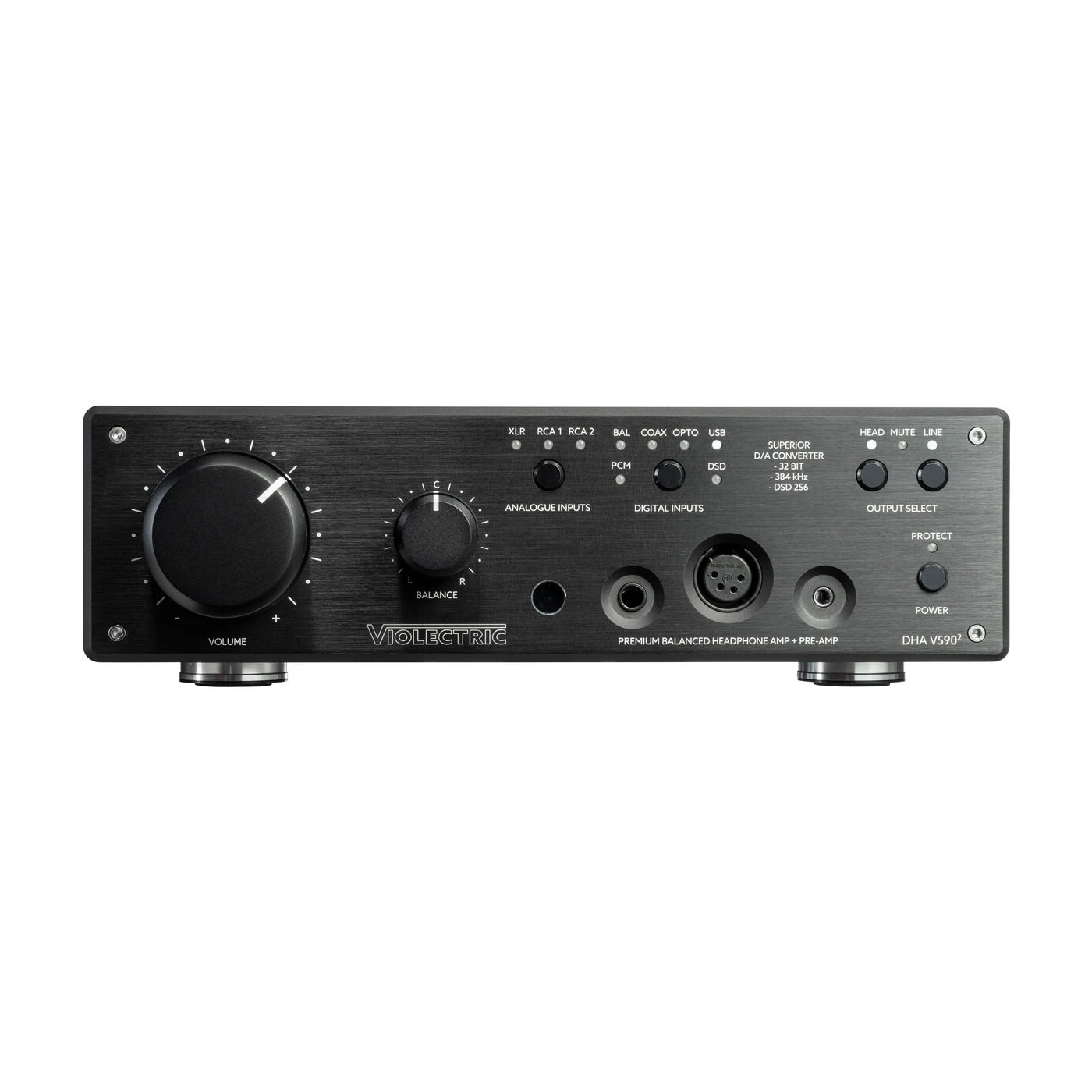

Violectric DHA V590 Pro DAC/Amp/Preamp

V590 PRO balanced headphone amplifier, pre amp, and DAC!

• Pre-amplifer
• Balanced Headphone Amp
• ESS-based 32 bit DAC + 32 bit Resampler (PCM & DSD)
• Femto-Clock (standard)
• Remote control (standard)
• 256 step relay volume (Pro model)

The Violectric DHA V590² PRO is the new top device in the Violectric range and is delivered from the factory with the 256 step relay. It offers a state-of-the-art D/A converter and a headphone amplifier. The D/A converter is a new development and includes a 32-bit resampler / reclocker and two 32-bit D/A converters per channel. The latest findings from the multiple test winners from Violectric and Niimbus were implemented in the headphone amplifier. Most functions can be conveniently controlled using a stylish remote.

With its incomparable technology, DHA V590² PRO not only offers one of the most powerful headphone amplifiers in the market, but also:

• Lowest Noise – through a very small amount of internal gain. This makes the amplifier’s self-generated noise inaudible.
• High Output Voltage – through 50 V internal operating voltage. Therefore ideally suited for high-impedance headphones deserving high output voltage swing.
• High Output Power – thanks to powerful amplifiers that offer far more power even the most demanding headphones would need. So best suited for headphones with low impedances as well as magnetostatic headphones
• High Damping Factor – due to lowest output impedance. Therefore the ideal match for difficult to drive headphones without negative side effects and with the guarantee for a uncompromising frequency response.

It is on you:

Headphone amplifier? Pre-amplifier? D/A converter? Combination? Everything goes! The headphone outputs and / or the line outputs can be activated / deactivated by buttons on the front or by remote control. Connect not only your headphones to the DHA V590² PRO but also your power amplifier or your active speakers and enjoy a compact and fantastic sounding headphone amplifier with a State-of-the-art D/A converter and a premium preamplifier

Remote:

Control the DHA V590² PRO with its stylish remote control, milled from a solid piece of aluminum. Via infrared rays you have access to motorized volume control, mute, input selection, resampling settings, Headphone and line-out control.

Specifications:

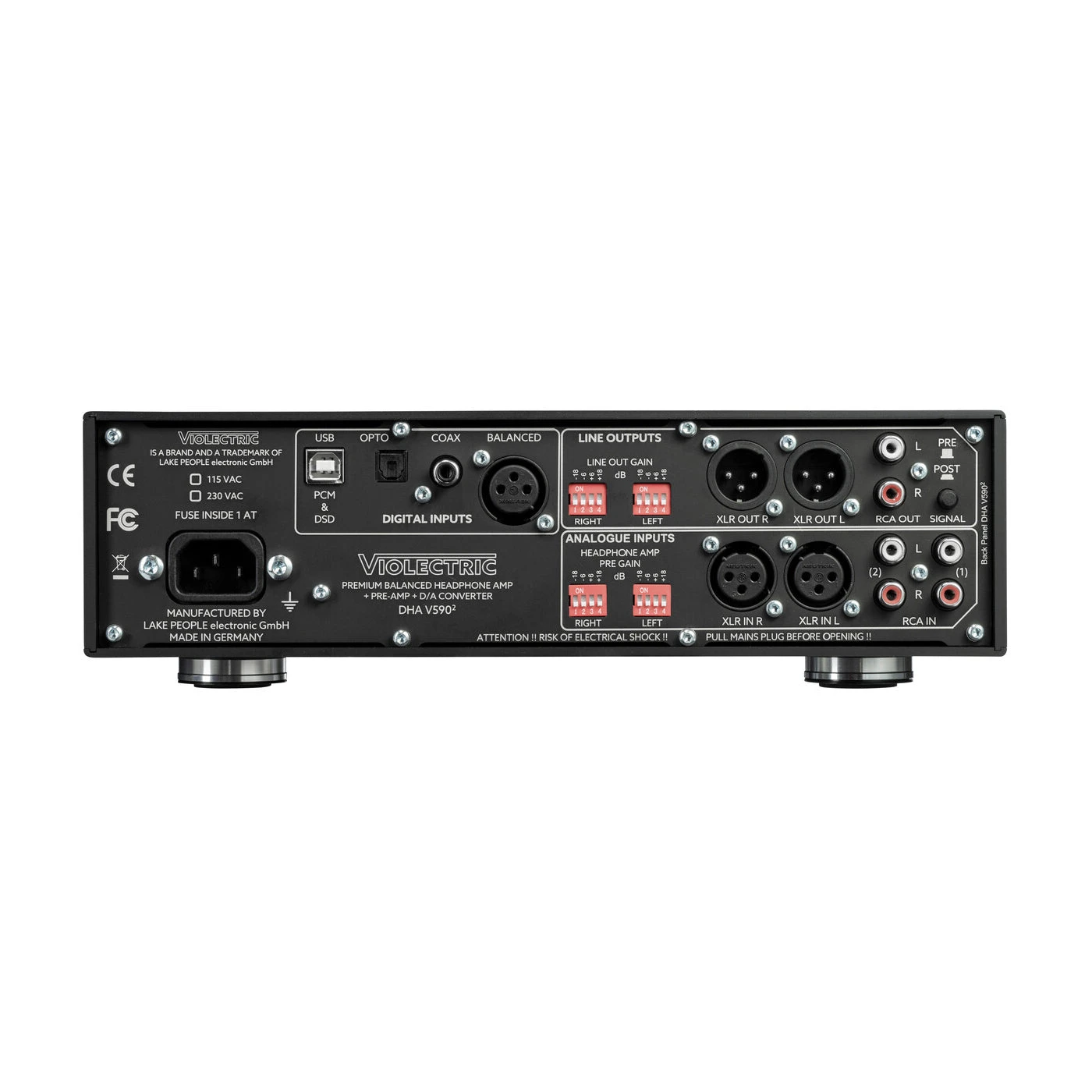

INPUTS

• 3 analogue inputs: 2 x RCA, 1 x XLR
• 4 digital inputs: optical, coaxial, AES balanced, USB
• USB allows for up to 384 kHz PCM and 512 x DSD

DAC

• 32 Bit ES9026 Pro
• New 32-bit Resampler with a dynamic range of up to 180 dB

POWER and NOISE

• 8 dB less noise than the V281
• 2 x 25 Watt PSU, switchable between 115 and 230V
• Gain factor 0 dB unbalanced, 6 dB balanced
• Extended pre-gain settings via DIP switches: -18, -12, -6, 0, +6, +12, +18 dB, same for the line out
• Pre and post fader now work via the push of a button on the back and not via software control
• Max output voltage (balanced output, both channels driven): 32 Volt = 1.8 Watts @ 600 Ohm
• Maximum power (balanced output, both channels driven): 6.4 Watt @ 50 Ohm
• Noise -100 dB / THD+N – 102 dB
• Output impedance < 0,2
• Ohm Damping factor > 250

DIMENSIONS

• (WxHxD) 290mm x 80mm (90 with feet) x 250 mm
• Front, Back: 8 mm / 3 mm Aluminum, black anodized
• Case: 3 mm / 4 mm Aluminum, black anodized
