Warwick Acoustics BRAVURA Electrostatic System

Every sense awakened

Introducing the new BRAVURA – from the Italian, meaning: “great technical skill and brilliance shown in a performance.”

Warwick Acoustics, have designed and manufactured the BRAVURA for lovers of exceptional audio, looking to own a system that offers unrivalled sound quality and musicality.

The BRAVURA is designed to awaken every sense and heighten every emotion when listening to your favourite music. Slip on the luxurious lightweight and comfortable headphones, close your eyes and within moments, you are no longer listening; you are there!

The art of sound

Developed for the audio connoisseur and those seeking audio perfection, the award-winning BRAVURA headphone system delivers the ultimate in luxury listening.

As with the other premium electrostatic headphones in the Warwick Acoustics range, the BRAVURA reproduces audio content as pristinely and accurately as possible, revealing the details and complexities of an original recording without colouration or alteration.

Simply put, it breathes new life into the music that you love.

Live the music

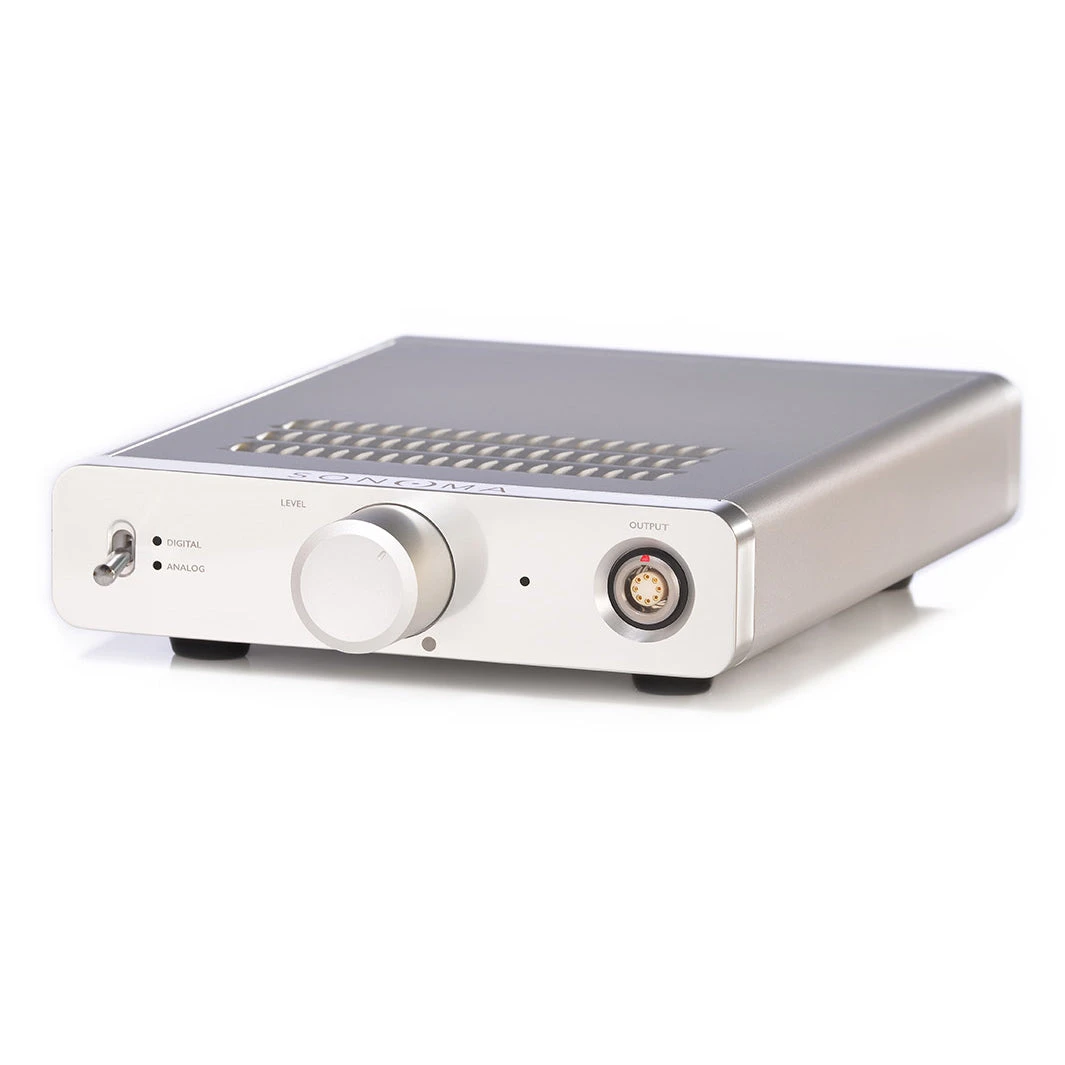

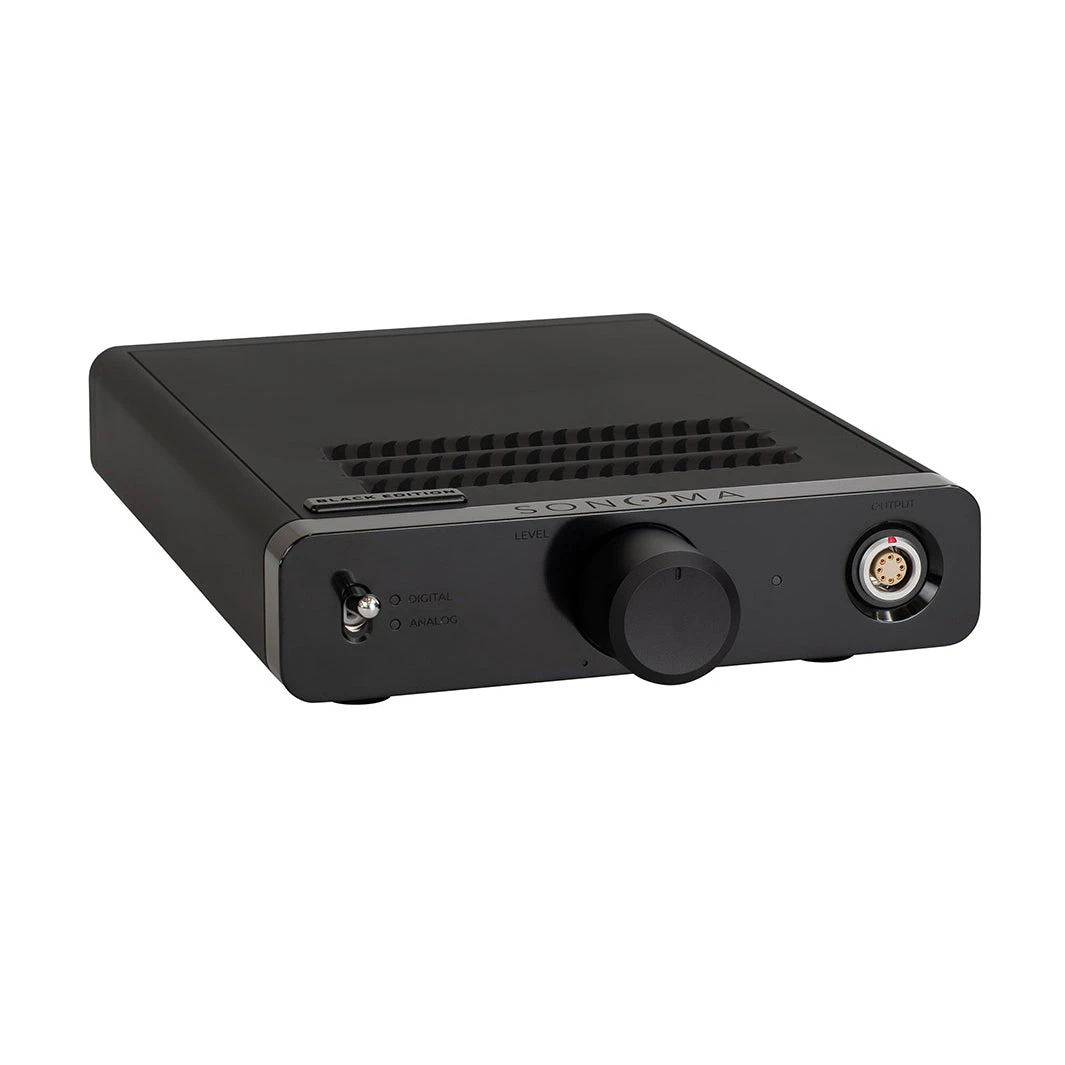

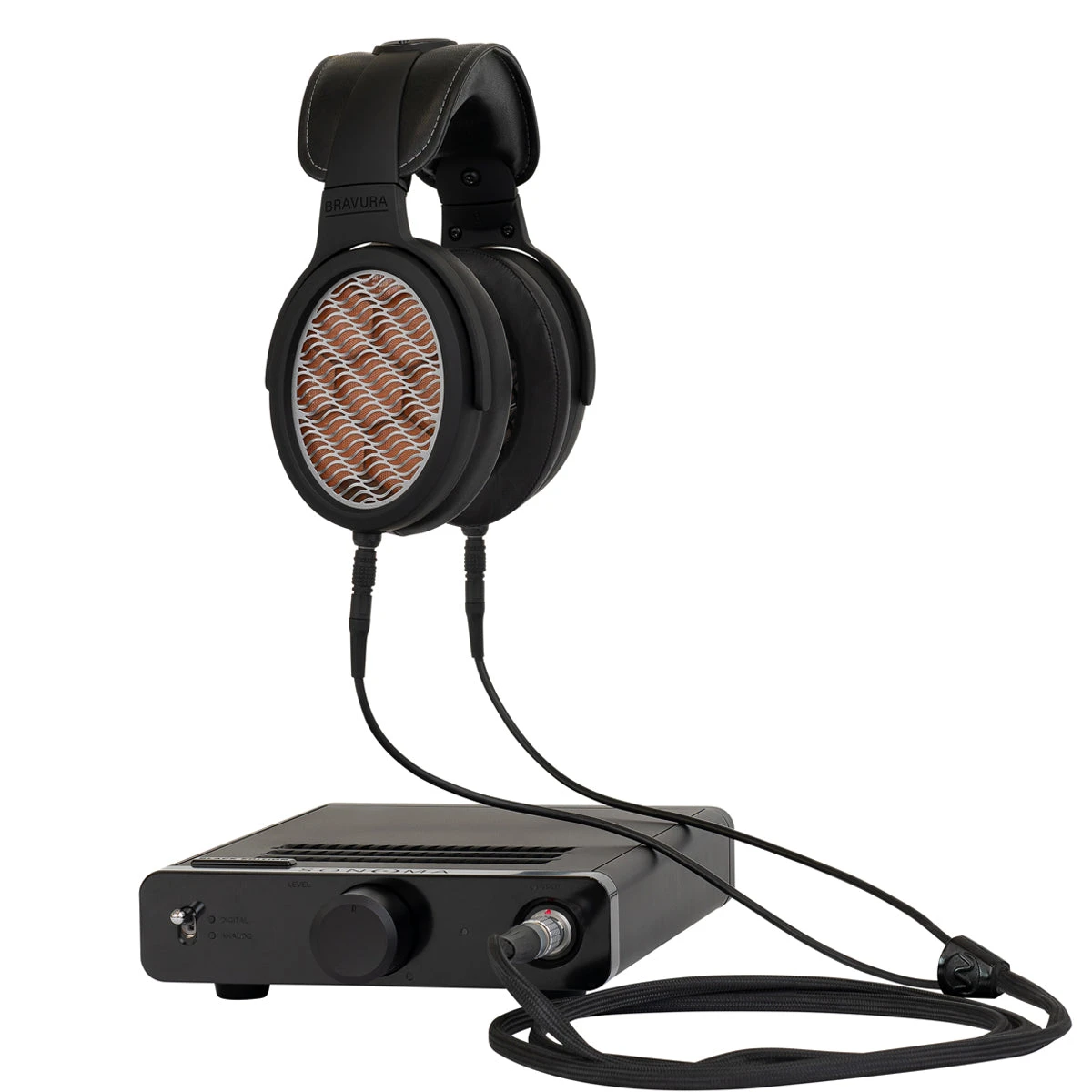

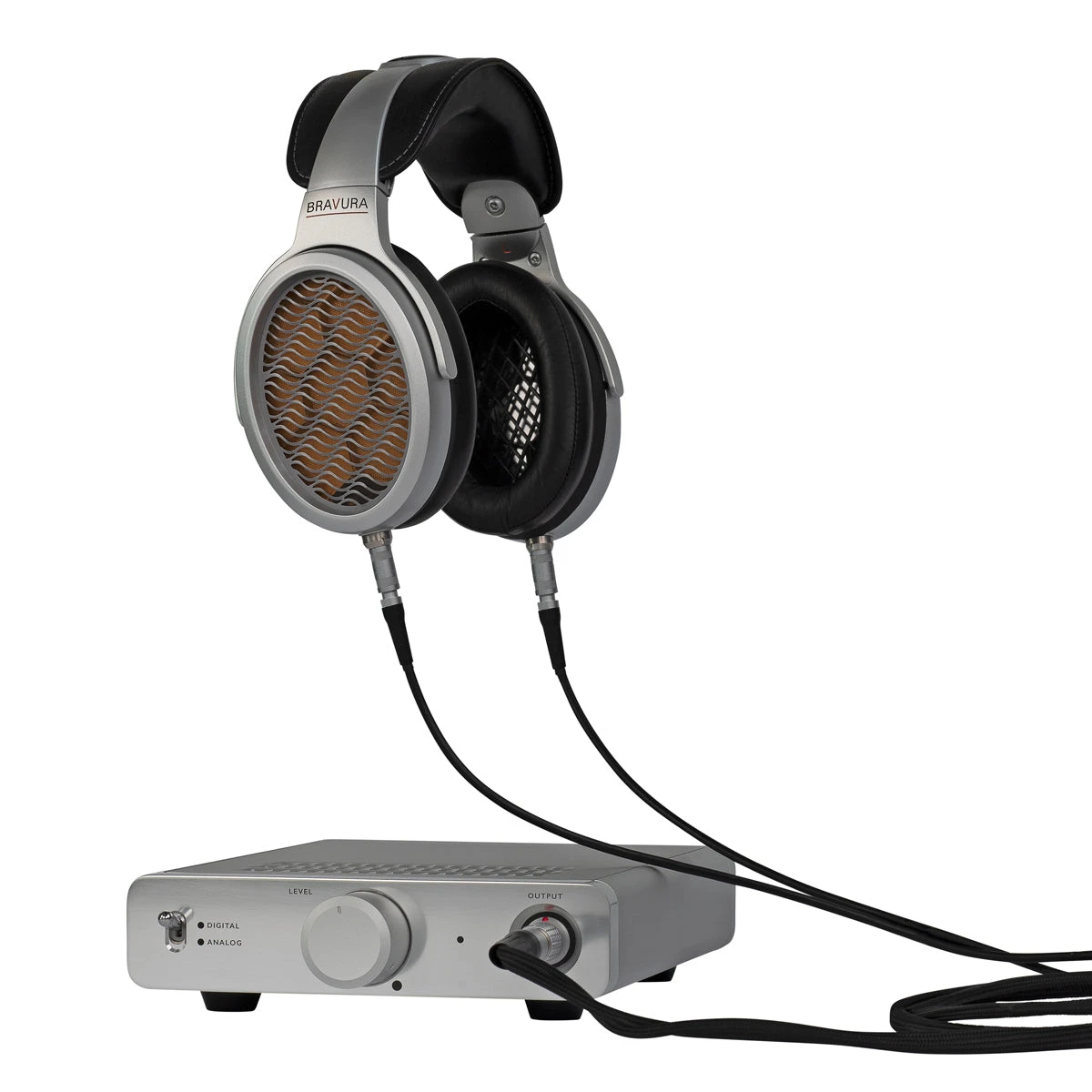

The BRAVURA Headphones, available in either Silver or a special Black Edition, have been designed to pair with the highly acclaimed Sonoma M1 Amplifier, which is also now available in a special Black Edition finish.

Discover audio heaven

With advancements to our core patented technology over the last three years, the latest evolution of the single-ended transducer uses a new stator design and more advanced materials resulting in ultra-low distortion, increased SPL and wider bandwidth. Each transducer is handmade and individually matched, resulting in remarkable listening experiences with unrivaled transparency and musicality.

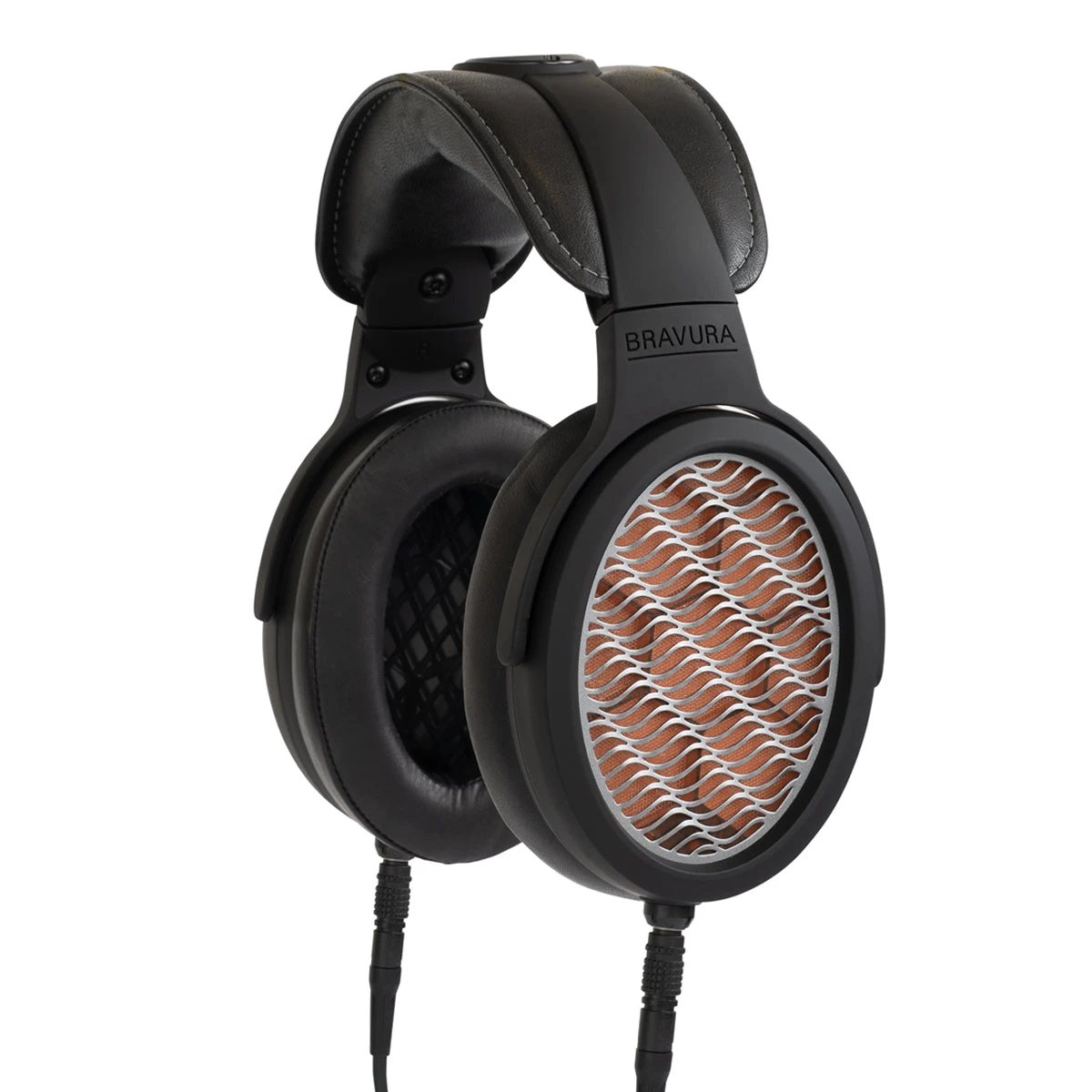

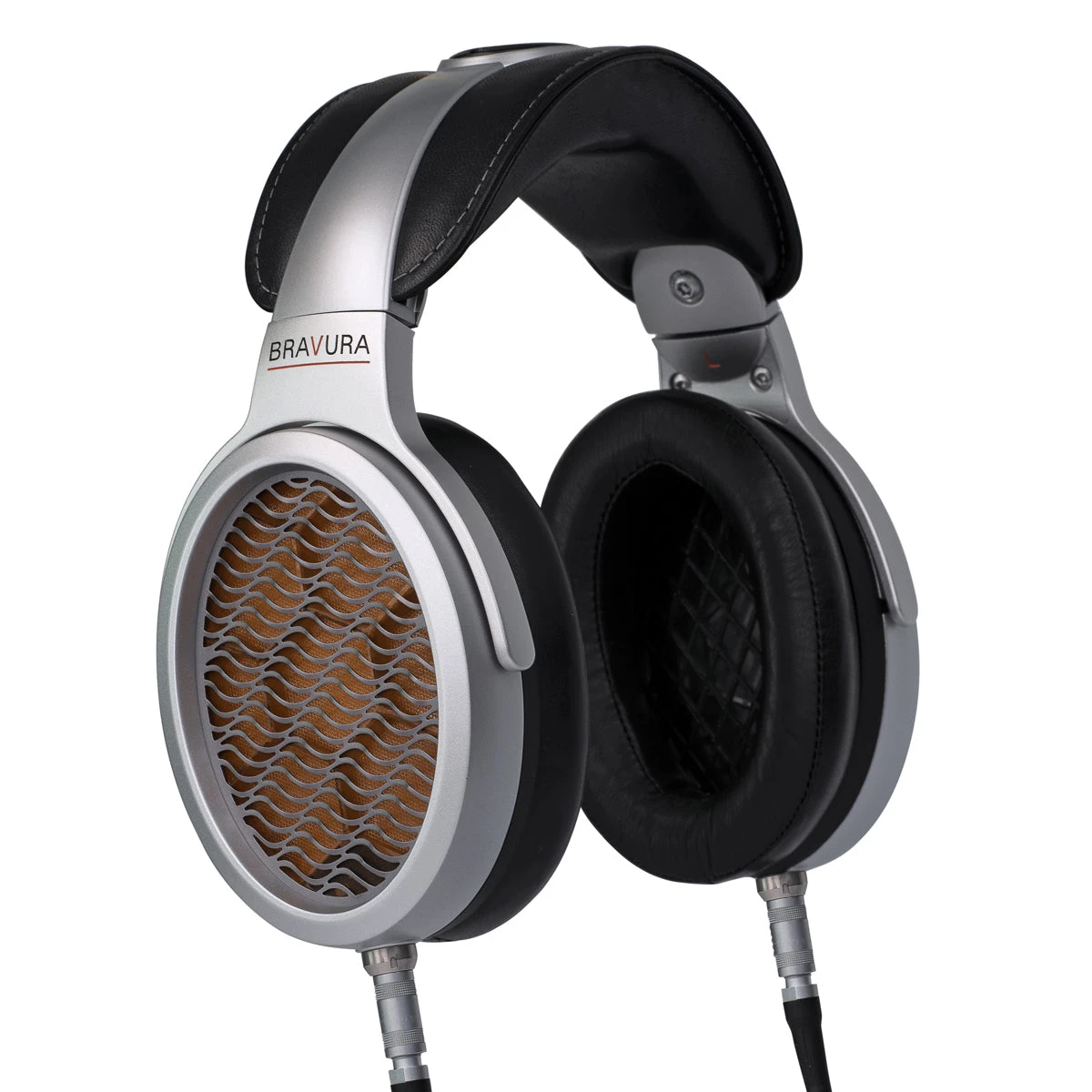

Headphone features and colors

• Injected magnesium ear-cups
• Handmade sheep hair ear cushions
• A luxury hand-stitched headband
• Custom low-capacitance cable
• Lightweight and comfortable headband

Configuration	Open-back headphones; circumaural type
Transducer	HPEL, single-ended electrostatic
Effective Diaphragm Area	3570mm2
Moving Mass (for dynamic range)	< 0.2g
Transducer Capacitance	105pF
Transducer Impedence	> 5GΩ
THD	0.1% @ 1kHz / 100dB SPL
Frequency Response	10Hz – 60kHz
Bias Voltage	1350Vdc
Cable	Ultra-low capacitance, High-precision cable, 2m length
Weight (without cable)	403g (14.2oz)

---

DAC & Energizer

Delivering performance without compromise, ESS SABRE reference DACs, an AKM Premium ADC, and custom 64-bit double-precision fixed-point DSP, sit at the heart of a high precision, ultra-low noise, low distortion system.

The Sonoma system supports all of the Hi-Res Audio formats an audiophile would expect from a class-leading audio product.

ESS sabre reference DAC

The Sonoma M1 system was developed to deliver true high-resolution performance. For the critical digital-to-analog conversion stage, we turned to an established leader in the field. ESS Technology is universally recognised as the world’s premier DAC chip manufacturer, and we have opted for their 32-bit Reference DAC. Two stereo DAC chips are used in a special mono mode to deliver a measured 129 dB signal-to-noise ratio (SNR).

Precision CNC-machined aluminium case

In contrast to the M1 headphones, where every effort was made to minimise weight, the M1 amplifier is a very substantial unit. Starting with a solid billet of high purity Aluminium 6063, the material is first extruded, and then CNC-machined to produce a shallow U-shape comprising the base and side walls of the amplifier. The metal walls which remain are 5/16th of an inch thick. A top-plate of the same thickness is similarly produced, along with ½ inch thick end-plates to form the complete enclosure. A special 3D-wave pattern is then cut into the base and top-plate by CNC-machine to facilitate heat dissipation

Discrete Single-Ended Class-A Amplifier

Like all electrostatic transducers, the HPEL requires a high-voltage drive amplifier in order to function. In the case of the M1, the drive comes from a high-performance, single-ended, discrete FET Class-A amplifier with very low distortion and wide bandwidth which is optimally matched to the HPEL. The amplifier was designed and optimised to drive the inherent capacitive load of an electrostatic transducer, and the Class-A output stage is operated at a high bias level, and delivers a very high slew-rate. Operating at such high bias levels results in improved linearity.

Custom 64-bit Fixed-Point Digital Signal Processing

Anyone who is familiar with loudspeaker or amplifier measurements will undoubtedly have seen plots of flat frequency response from a few tens of Hz all the way up to 20+ kHz. A flat frequency response is the ultimate goal for those components, and is quite easily achieved in an amplifier, but more difficult to achieve in a loudspeaker, especially in a real-world listening room (as opposed to an anechoic chamber).

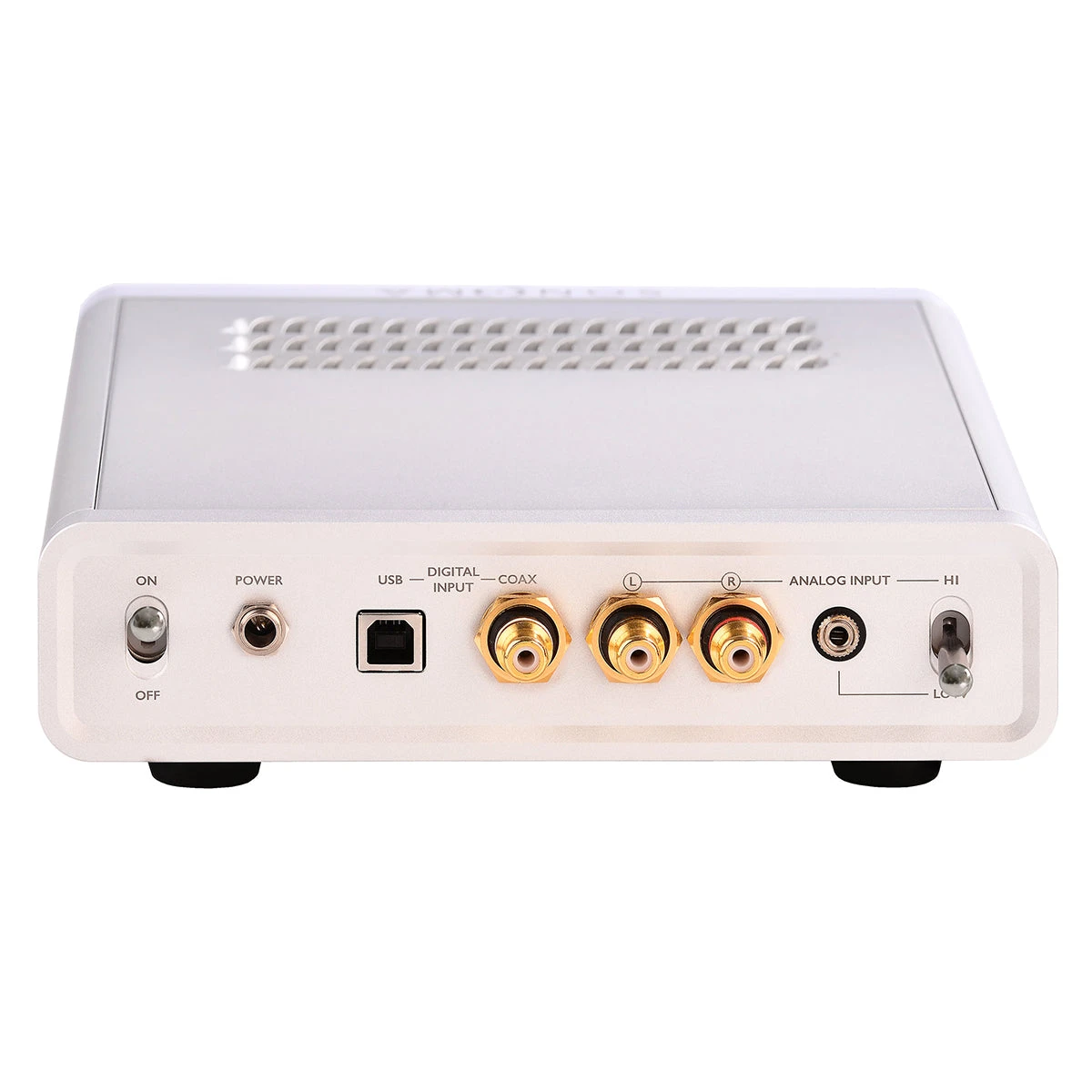

USB Input	USB 2.0, type B; accepts digital audio formats up to 32‑bit/384 kHz PCM and DSD via DoP (DSD64/DSD128)
Digital Coaxial Input	S/PDIF; accepts digital audio formats up to 24‑bit/192 kHz PCM
Analog Input (High Level)	Dual RCA; 2.1 Vrms
Analog Input (Low Level)	3.5 mm; 850 mVrms
DAC	Dual mono, 32-bit/384 kHz DACs with balanced outputs
ADC	32-bit/384 kHz multi-channel ADC with balanced input buffers
Digital Signal Processing (DSP)	64-bit (double-precision) fixed-point processing at native sample rates
Amplifier/Energizer	Discrete FET, single-ended, high-bias Class-A output
Distortion + Noise	< 0.05%
Bandwidth	> 65 kHz
Enclosure	CNC-machined 6063 aluminum
Power Supply	External: 24 VDC, 60 VA, fixed frequency, class B-compliant SMPS; Internal: fully isolated, ultra-low noise linear regulation
AC Mains	World voltage compatible (90-264 V, 50-60 Hz); IEC-60320 C14, earth-grounded power cable; 1.5 meter length
Dimensions	H x W x D: 57 mm (2.24 in) x 190 mm (7.48 in) x 290 mm (11.42 in)
Weight	2.45 kg (5.40 lbs)
