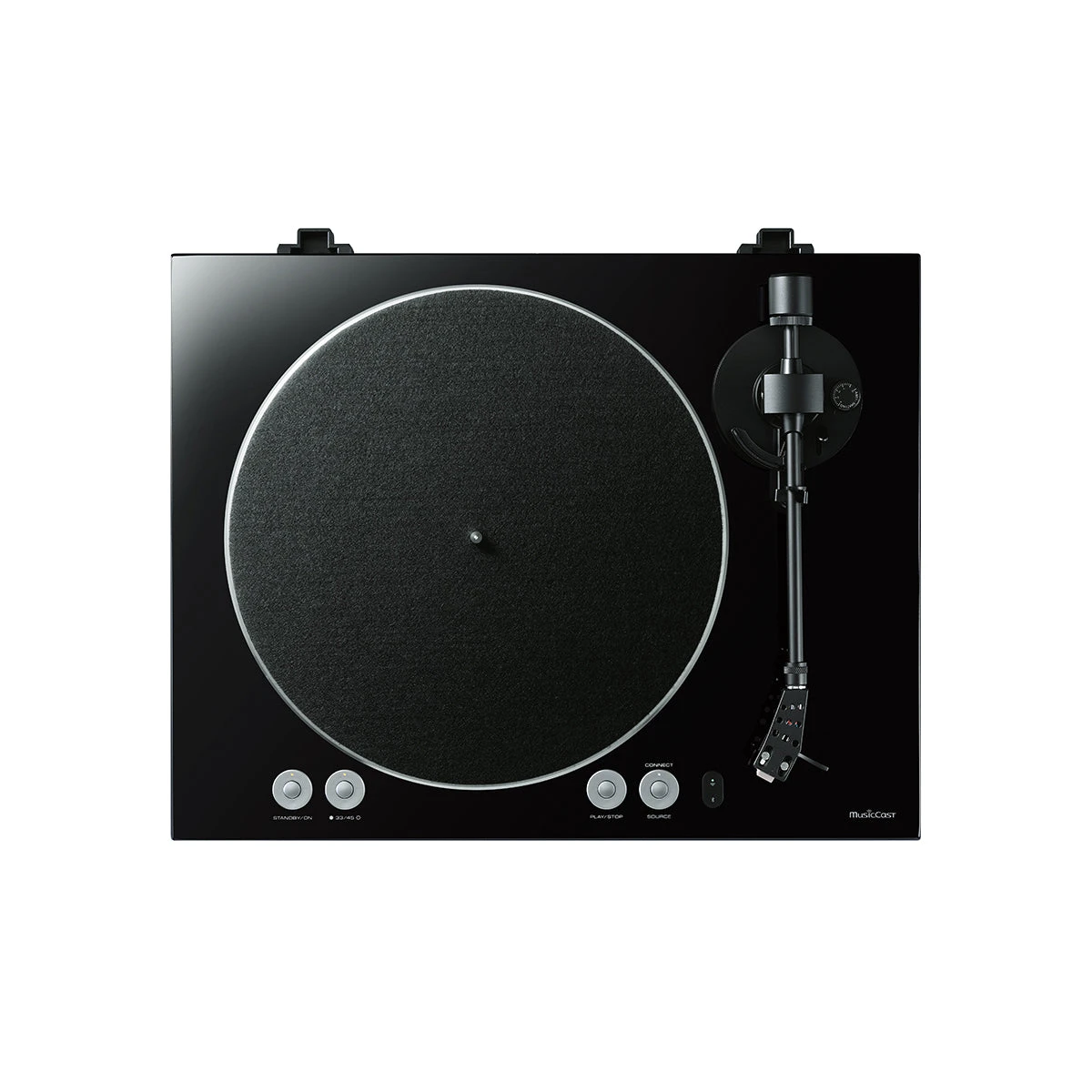

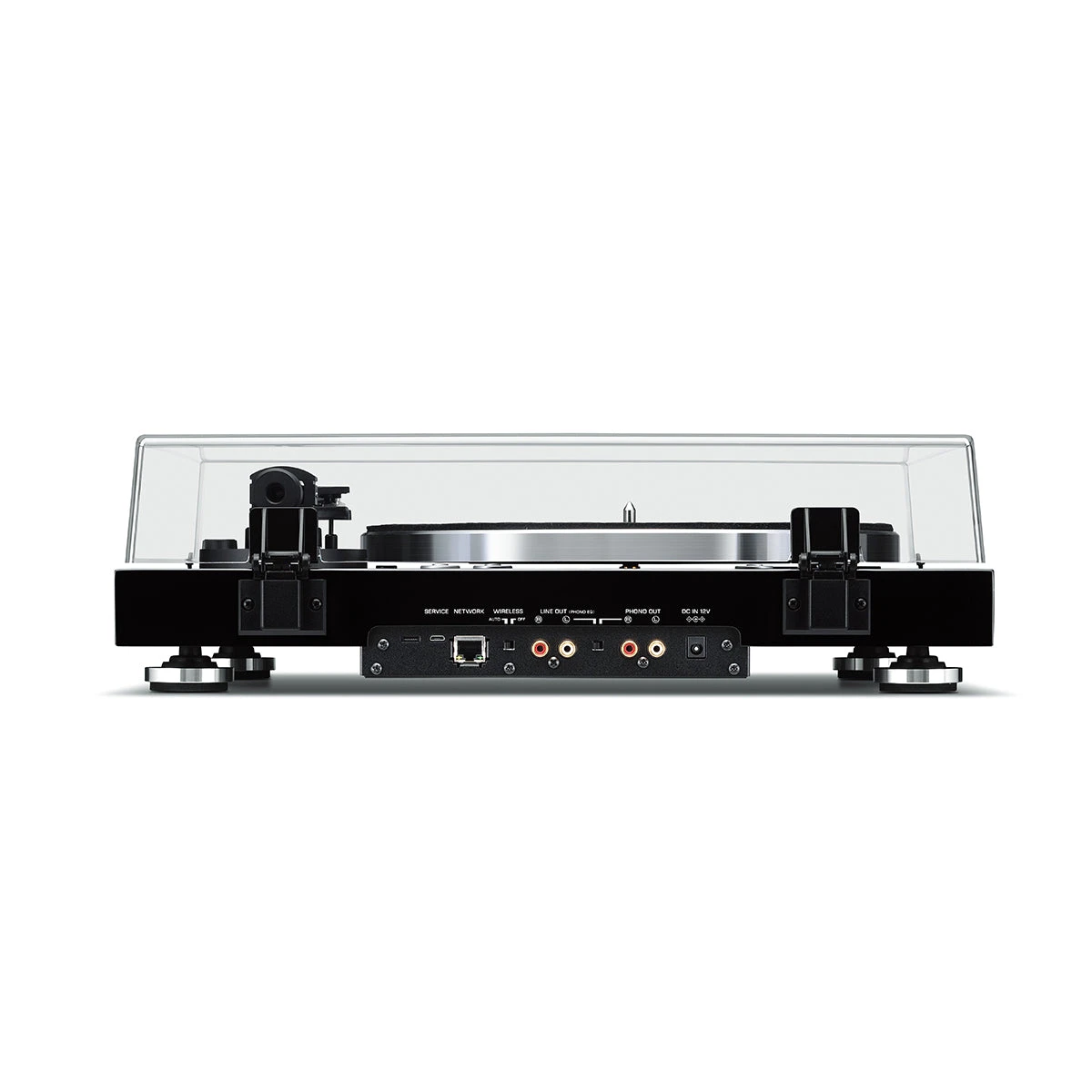

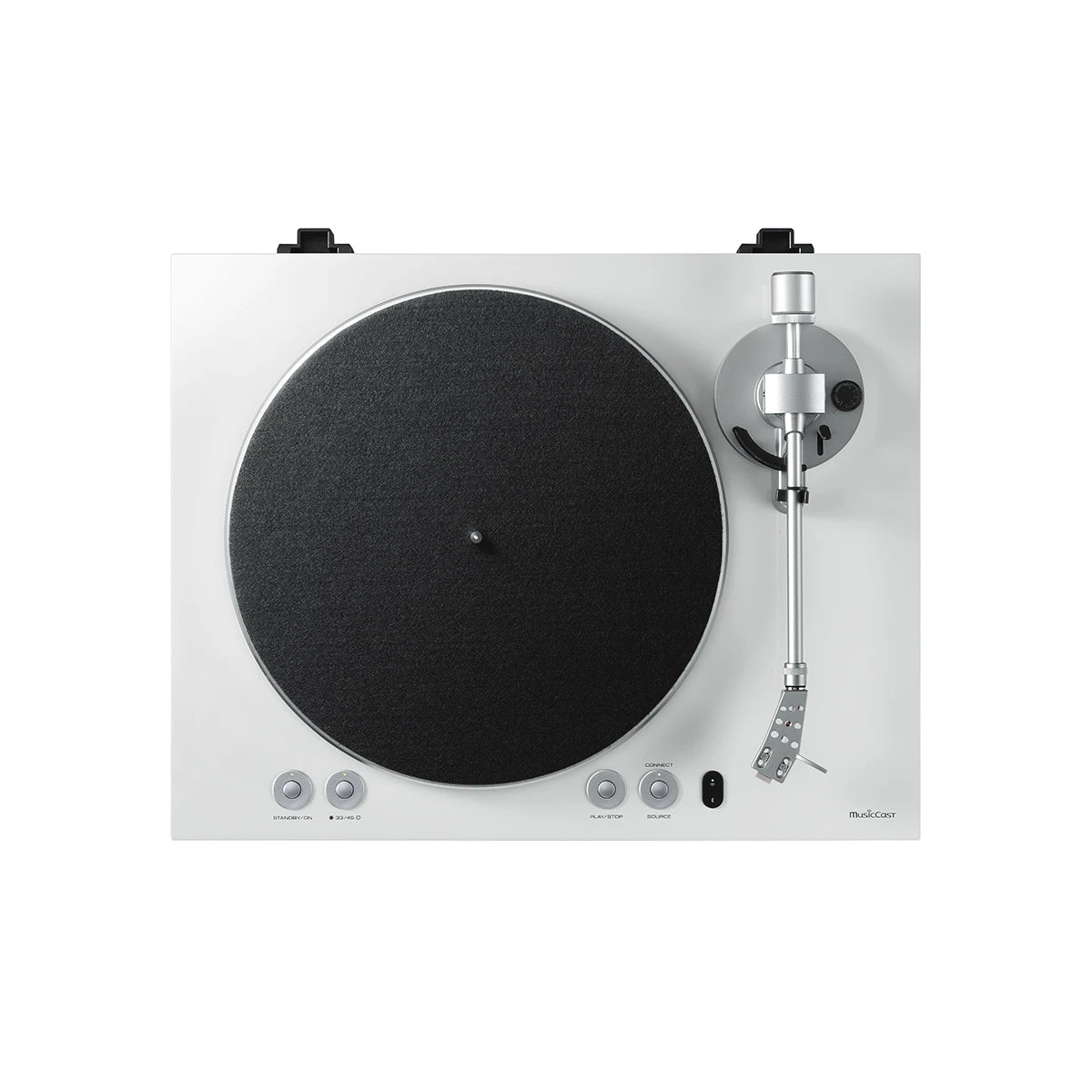

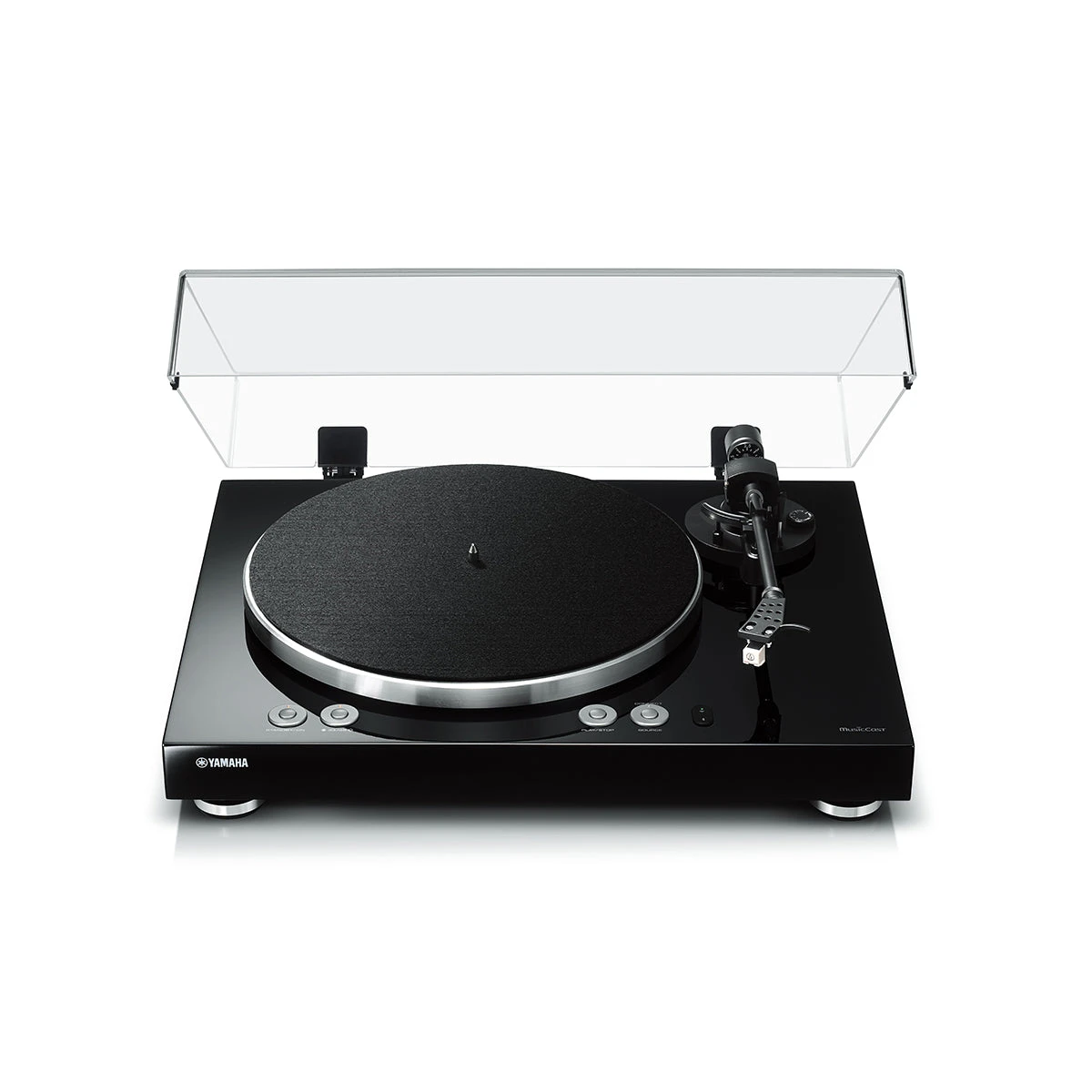

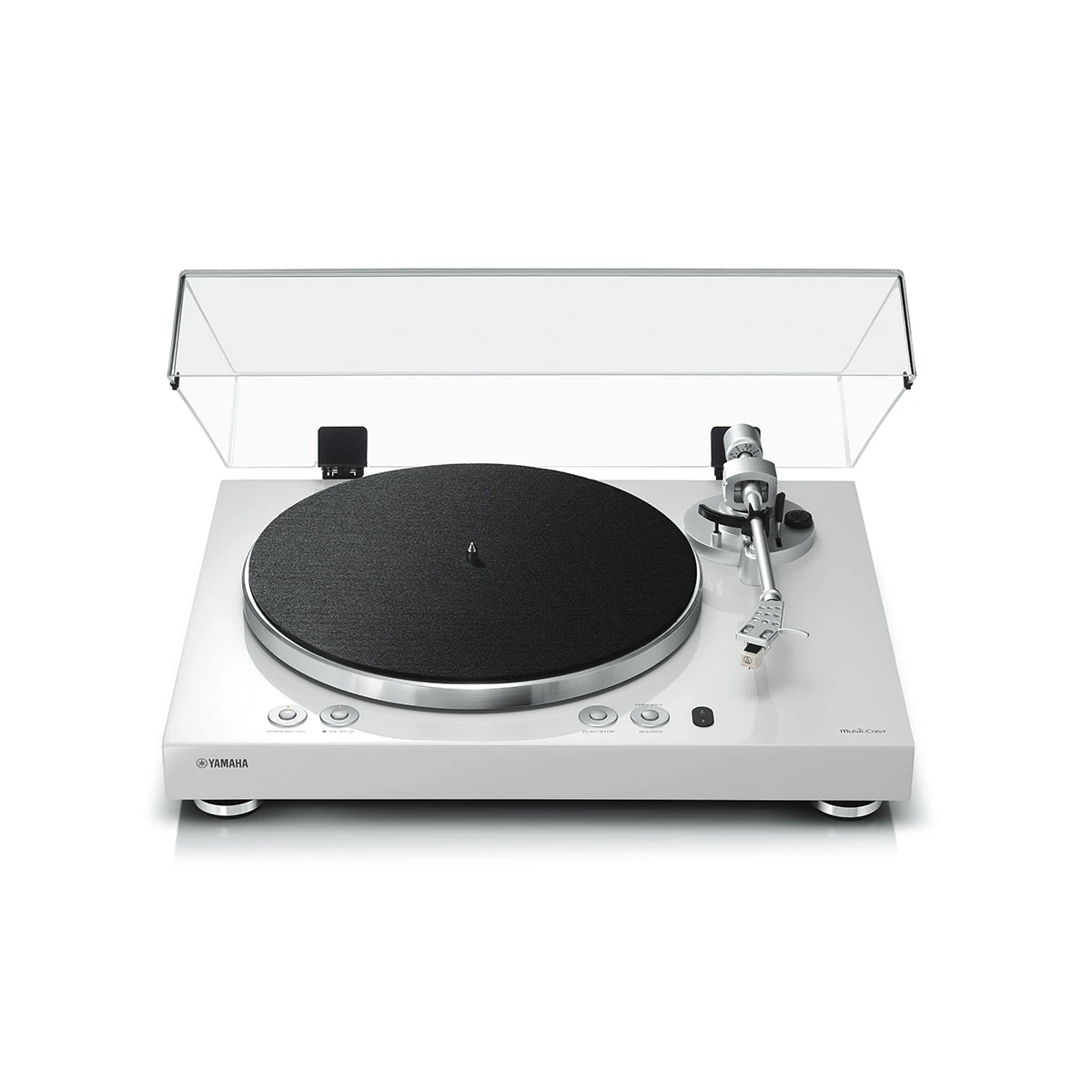

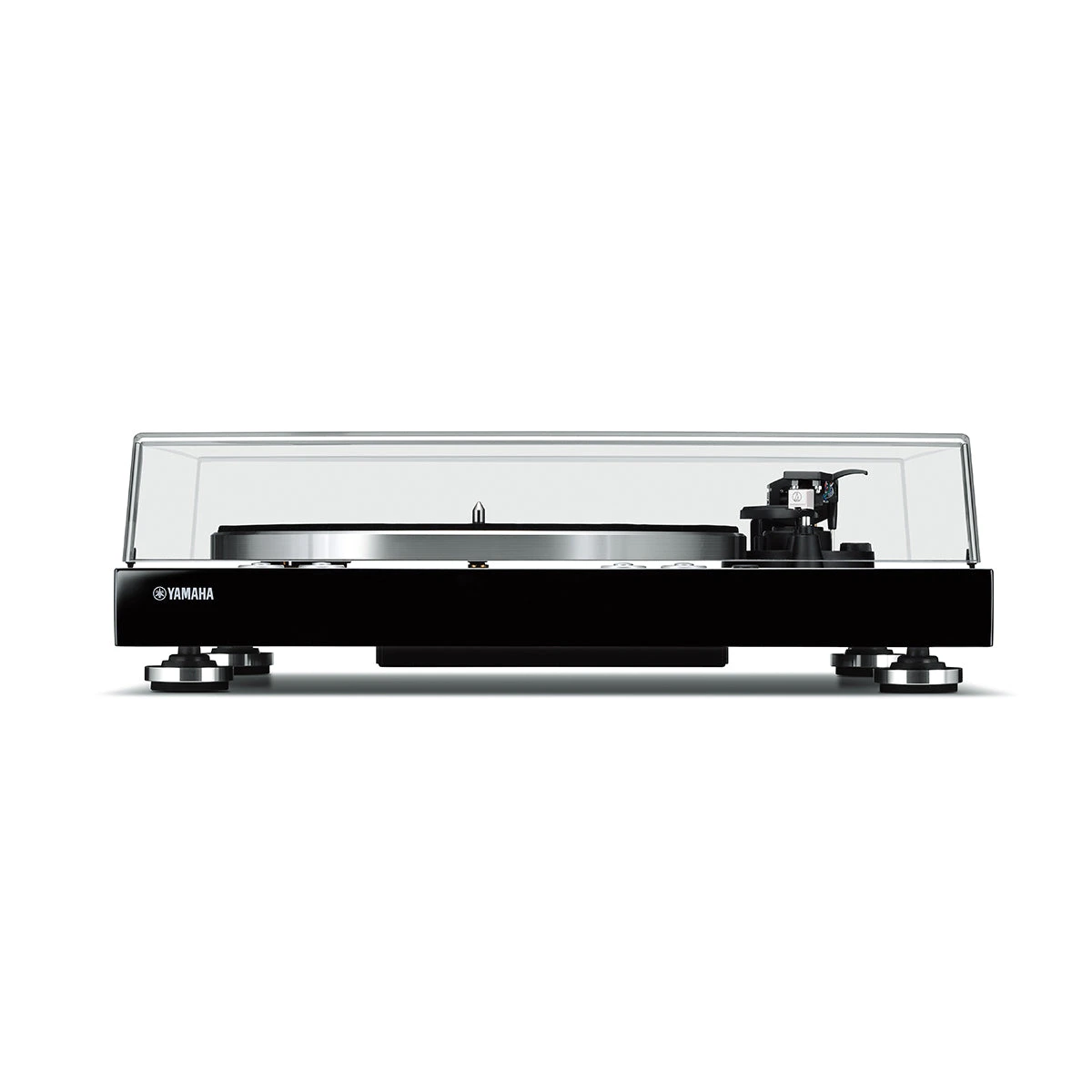

Yamaha TT-N503 MusicCast VINYL 500 Wi-Fi Turntable

Vinyl Unleashed. Stream your records and music services to MusicCast speakers with no wires attached and no receiver required. Wi-Fi connection ensures exceptional sound quality. With a MusicCast multi-room system, hear your records throughout your entire home.

• Stream music services with Wi-Fi®, Bluetooth®, AirPlay 2 or Spotify Connect.
• Yamaha Hi-Fi quality built for accuracy and sonic purity. Perfect for the audiophile or beginner vinyl collector.
• Built-in phono preamp gives you flexibility to connect any audio system, adding streaming service playback to your legacy Hi-Fi system.
• Voice control with Alexa and Google Assistant devices or Siri via Airplay 2
• Rotation speed: 33-1/3 rpm, 45 rpm

Turning the tables on cables

Giving an ‘old-school’ medium a modern spin, wirelessly connect the MusicCast VINYL 500 turntable to your MusicCast enabled receiver and other devices to enjoy your record collection without all the cables.

Place the turntable anywhere!

Don’t stop the music

Hit the end of a record and don’t want the music to stop? With the VINYL 500 you can keep the music going by streaming music services via Wi-Fi, AirPlay, Spotify Connect, or Bluetooth.

Connect the MusicCast VINYL 500 to your existing stereo equipment and get ready for a serious upgrade to your setup.

Anyway you want it

Take control of your music streaming and your wireless setups with the MusicCast app. Create favorites, control your multi-room vinyl experience or MusicCast Stereo system. Geek out on all the options and settings to really make your music yours.

You spin me ’round

Turn your listening experience on its head. Meet the MusicCast VINYL 500.

Meticulously designed to ensure the most faithful reproduction of sound – the way music was made to be heard — the MusicCast VINYL 500 features a straight tonearm for an open sound as well as a belt-drive motor to minimize noise caused by vibrations.

You turn me on

The piano black finish shows off your style and your records. And with no receiver or speaker wires needed, get creative and put your VINYL 500 anywhere it looks good!

Speak to me

Voice control completes the picture when it comes to the turntable of the future.

Use Alexa or Google Assistant for effortless, hands-free control of your music streaming and multi-room setup.

Bluetooth out

In or out. The VINYL 500 is equipped with Bluetooth technology, making wireless operation more convenient than ever. You can stream music from the VINYL 500 to Bluetooth headphones for private listening or to Bluetooth speakers. Bluetooth output has been improved, reducing lip sync delays from digital sources.

Specifications

Network Section	File Format	MP3 / WMA / MPEG-4 AAC: up to 48 kHz / 16-bit, ALAC: up to 96 kHz / 24-bit, FLAC / WAV / AIFF: up to 192 kHz / 24-bit, DSD: up to 11.2 MHz
	Ethernet	Yes
	Wi-Fi	Yes (2.4 / 5 GHz)
	AirPlay	Yes
Bluetooth Section	Version/Profile	Ver. 4.2 / A2DP, AVRCP (Bluetooth is compatible with SCMS-T.)
	Audio Codec	SBC, AAC
	Maximum Communication Range	32 ft. 10 in. (without interference)
Turntable	Drive Method	Belt drive
	Motor	DC motor
	Rotation Speed	33-1/3 rpm, 45 rpm
	Rotation Speed Variation	±2%
	Wow And Flutter	0.2%
	Platter	Aluminium die-cast (Diameter 30 cm)
	Output Level	450 mV (-7 dBV, with RIAA EQ, 1 kHz, 3.54 cm / sec), 2.5 mV ± 3 dBV (without RIAA EQ, 1 kHz, 3.54 cm / sec)
	Signal To Noise Ratio	67 dB or higher (A-weighted, 20 kHz, LPF)
Tonearm	Tonearm	Static balance straight tonearm
	Effective Arm Length	223.5 mm
	Overhang	19 mm
	Stylus Pressure Adjustment Range	0-4 g
	Acceptable Cartridge Weight	15.5-19 g (including headshell)
Attached Cartridge	Cartridge Type	MM type
	Output Voltage	2.5 mV (1 kHz, 3.54 cm / sec)
	Stylus Pressure	3.5 ± 0.5 g
	Cartridge Weight	5.0 ± 0.3 g
	Cartridge Height	17.0 ± 0.7 mm
	Headshell Weight	10 g (including screws, nuts and wires)
Audio Specifications	Output Terminal	RCA: 2 (PHONO, LINE)
	Output Level	2.0 ± 0.3 V (1 kHz, 0 dB, Fs 44.1 kHz)
	Signal to Noise Ratio	[IHF-A network] 110 dB or higher (Infinity zero, Fs 44.1 kHz)
	Dynamic Range	100 dB or higher (1 kHz, -60 dB, Fs 44.1 kHz)
	Harmonic Distortion	0.003 % or lower (1 kHz, 0 dB, Fs 44.1 kHz)
	Frequency Response	Fs 44.1 kHz; 2 Hz to 20 kHz (+0 / -3 dB), Fs 48 kHz; 2 Hz to 24 kHz (+0 / -3 dB), Fs 96 kHz; 2 Hz to 48 kHz (+0 / -3 dB), Fs 192 kHz; 2 Hz to 96 kHz (+0 / -6 dB)
General	Power Consumption	6 W
	Eco-Standby (reference date)	0.3 W
	Standby Power Consumption	1.4 W (Network standby ON, Bluetooth® standby OFF, Wired), 1.8 W (Network standby ON, Bluetooth standby ON/OFF, Wi-Fi), 1.6 W (Network standby ON, Bluetooth standby ON, Wired)
	Dimension (W×H×D)	17-3/4” x 5-3/8” x 14-1/2”
	Weight	12.6 lbs.
